Locations
>>
Connector Locations
>>
B30-B314
B30-B314
Bulkhead Wiring Harness (In Compartment)

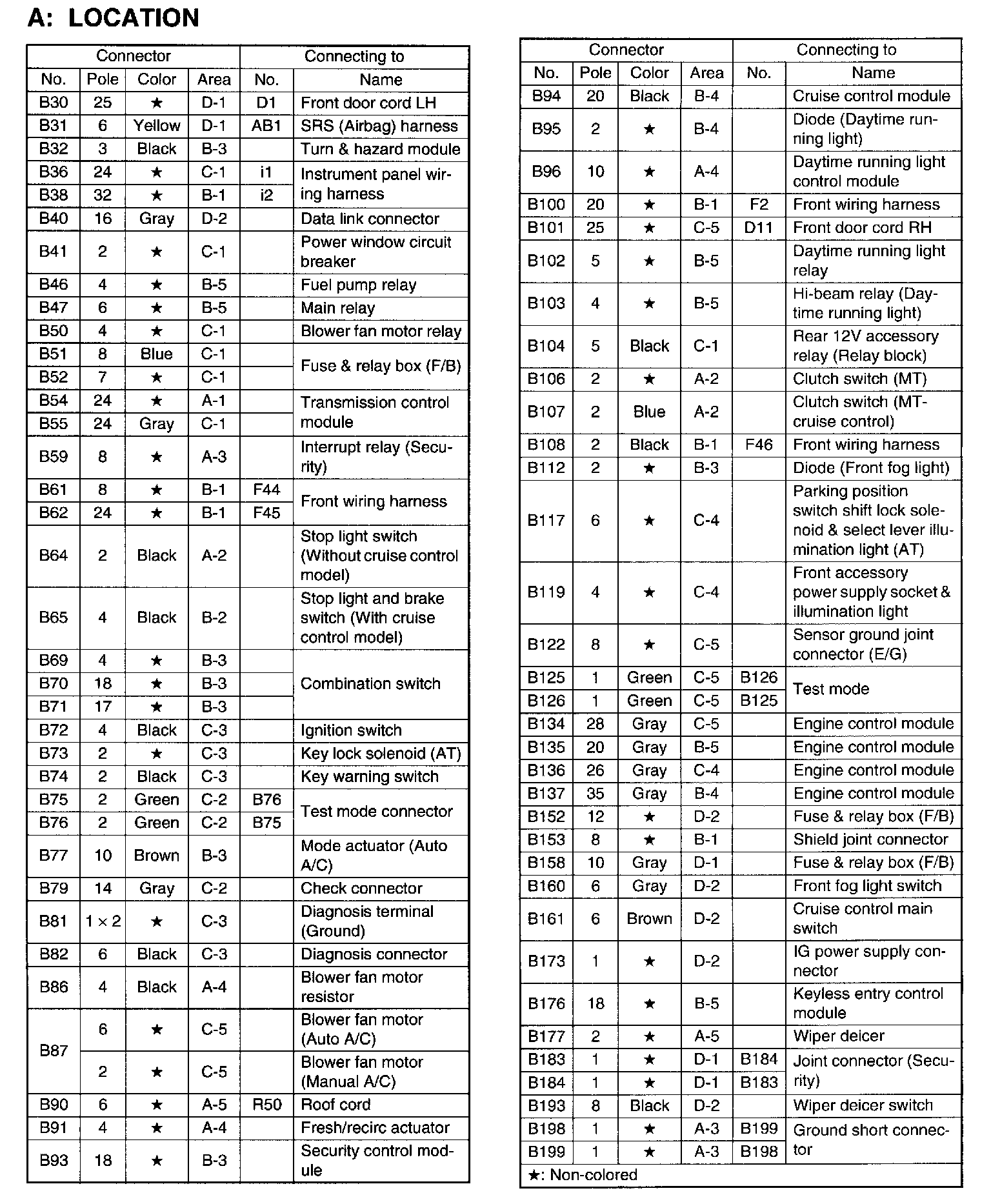

B30-B199:

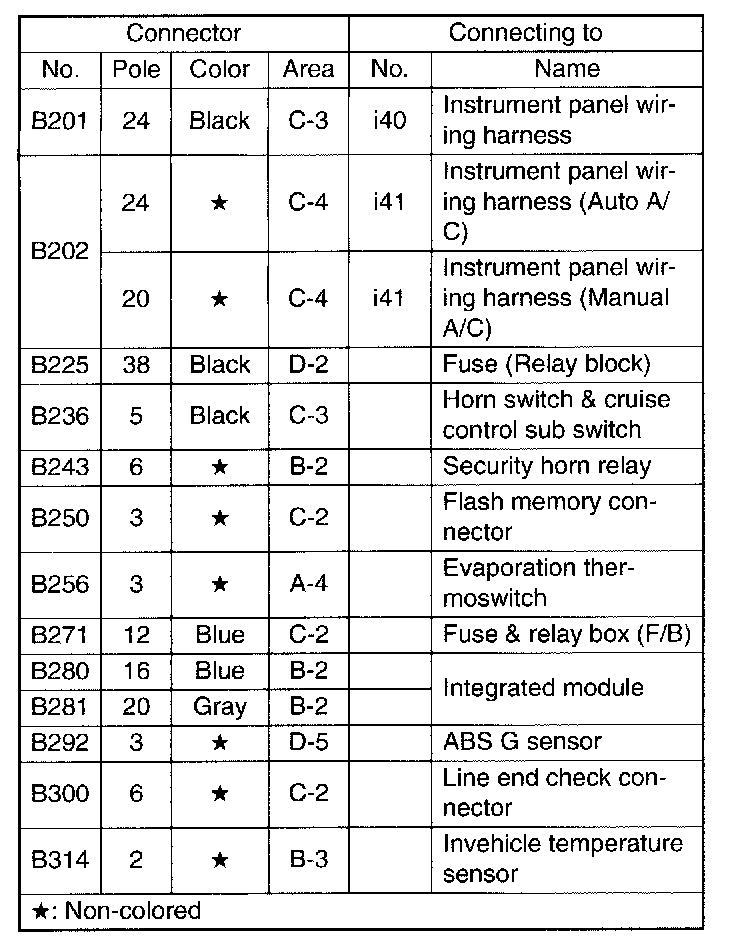

B201-B314:
Area View:
