Outer Belt Side

OUTER BELT SIDE (SEDAN BODY)
REMOVAL

1. Remove rear shelf trim.
2. Remove side sill rear upper cover.

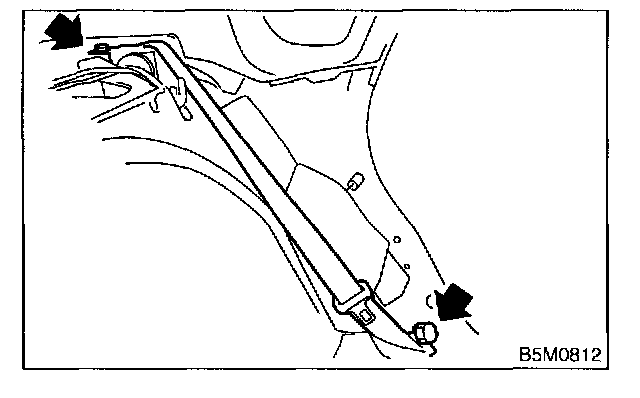

3. Remove bolts, then detach outer belt side.



INSTALLATION
Install in the reverse order of removal.

CAUTION: During installation, make sure that seat belts are not twisted.
After installation, make sure that seat belts can be smoothly extended and wound.
