Rear Turn Signal Light Bulb

Rear Turn Signal Light Bulb

REMOVAL

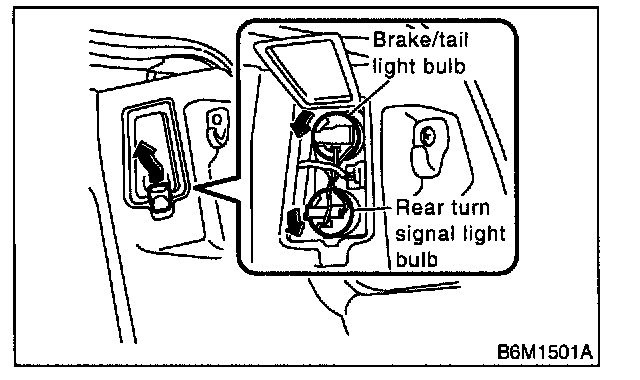

1. Open trunk lid and remove cover.
2. Turn the socket and remove the bulb.

INSTALLATION
Install in the reverse order of removal.
