Backup Light Bulb: Service and Repair

REMOVAL

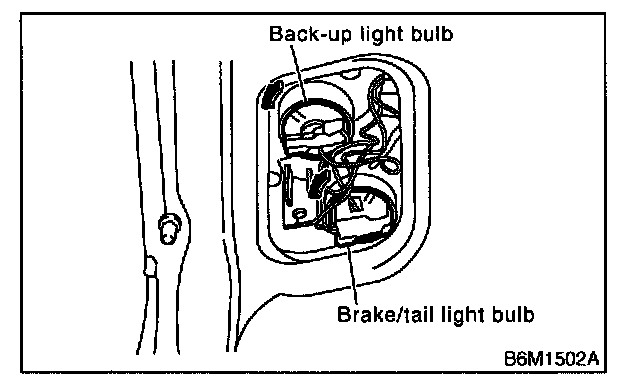

1. Open trunk lid and remove cover.
2. Turn the socket and remove the bulb.

INSTALLATION
Install in the reverse order of removal.
