Sunroof / Moonroof Panel: Service and Repair

Sunroof Lid

REMOVAL

REAR

1. Completely close rear sunroof lid and open sunshade.

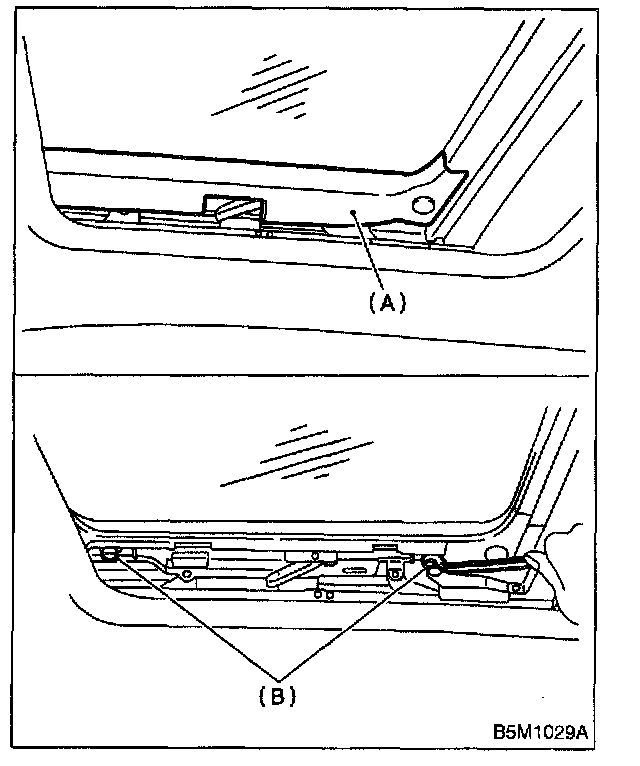

2. Remove covers (A) then remove nuts (B).
3. Remove the sunroof lid carefully.




INSTALLATION

Install in the reverse order of removal.

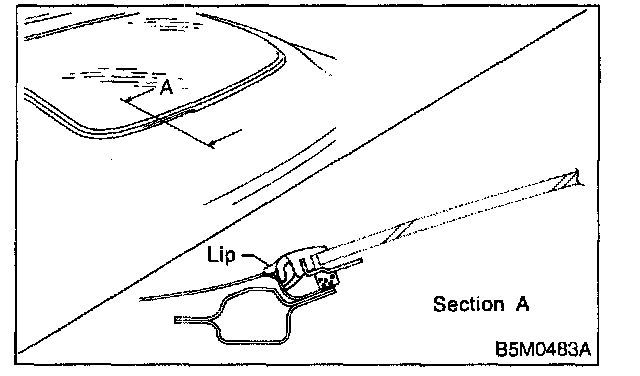

CAUTION: When installing sunroof lid, be careful not to pinch the lip of lid.
