Antenna Amplifier: Service and Repair

REMOVAL
1. Disconnect ground cable from battery.
2. Remove rear pillar upper trim (left side).
3. Disconnect harness connector and terminal.

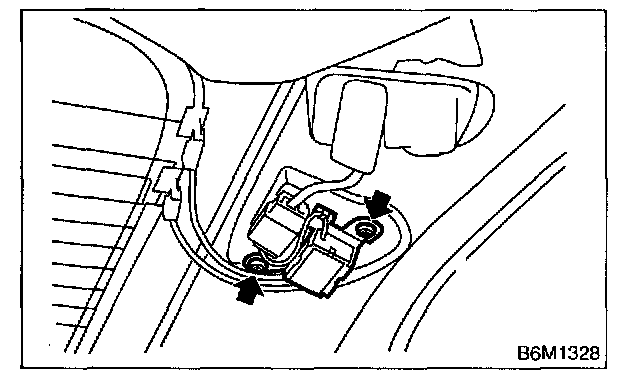

4. Remove mounting screw and detach antenna amplifier.

INSTALLATION
Install in the reverse order of removal.
