Front Washer Nozzle

Front Washer Nozzle
1. Turn wiper switch to OFF position.

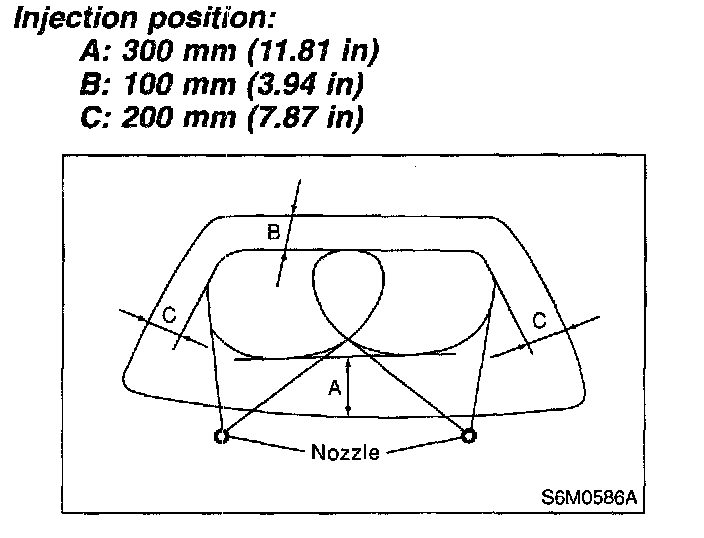

2. When vehicle stops, adjust washer injection position as shown in the figure.
