Rear Wiper and Washer
Rear Wiper and WasherDESCRIPTION

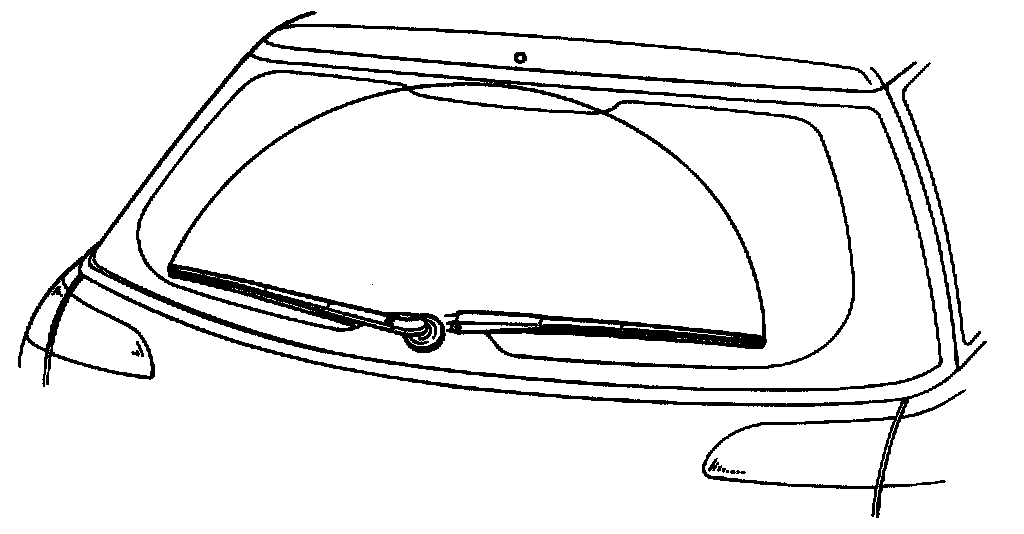

1. REAR WIPER
1. The rear wiper operates intermittently at a 10 second interval.
2. The rear wiper operates over a 168 degree angle.
3. The wiper blade is attached to the arm by means of a U-hook joint in the same way as with the front wipers.
2. REAR WASHER SYSTEM
1. The same washer tank is shared by the front and rear washer systems.
2. The washer motor and pump unit is installed at the bottom of the washer tank, adjacent to the front washer's unit.
3. The washer nozzle is installed on the upper portion of rear gate panel. The nozzle has two spray holes.
4. The washer nozzle is provided with a check valve which is located just below it.
