Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection

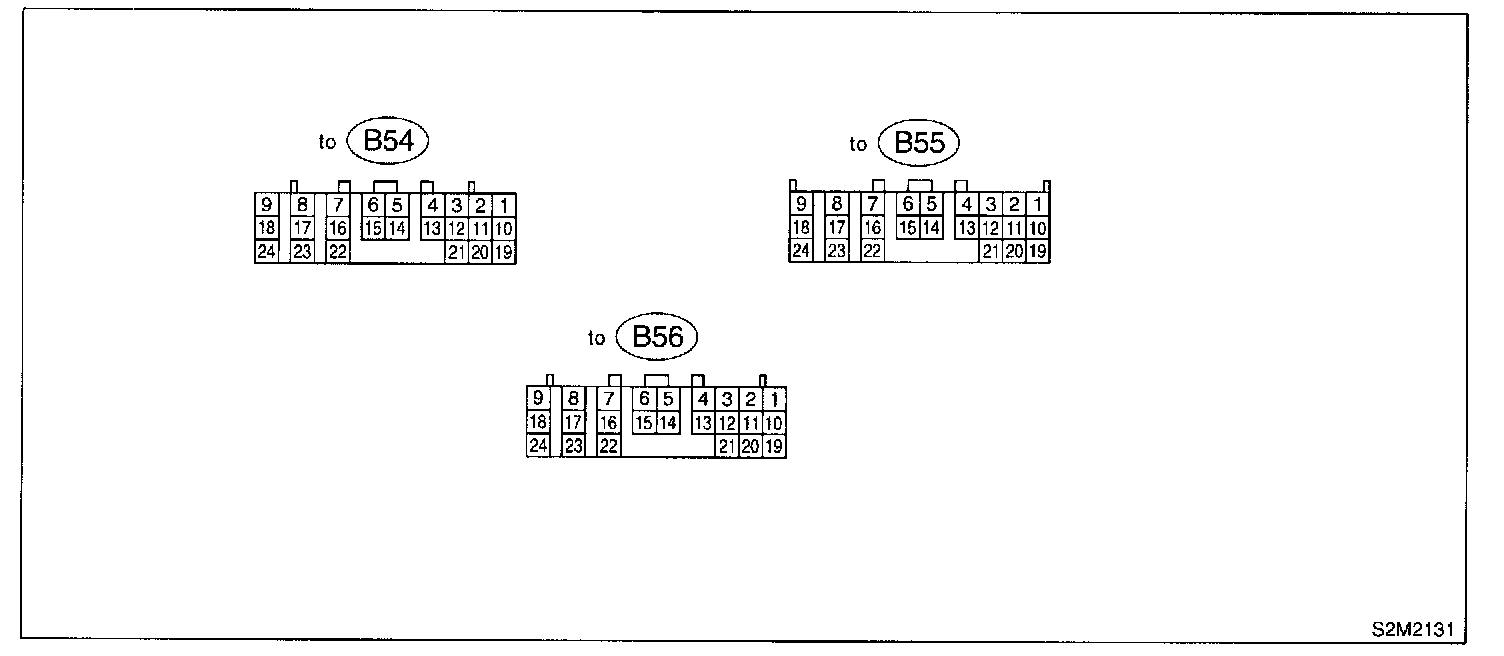

Transmission Control Systems: Testing and Inspection

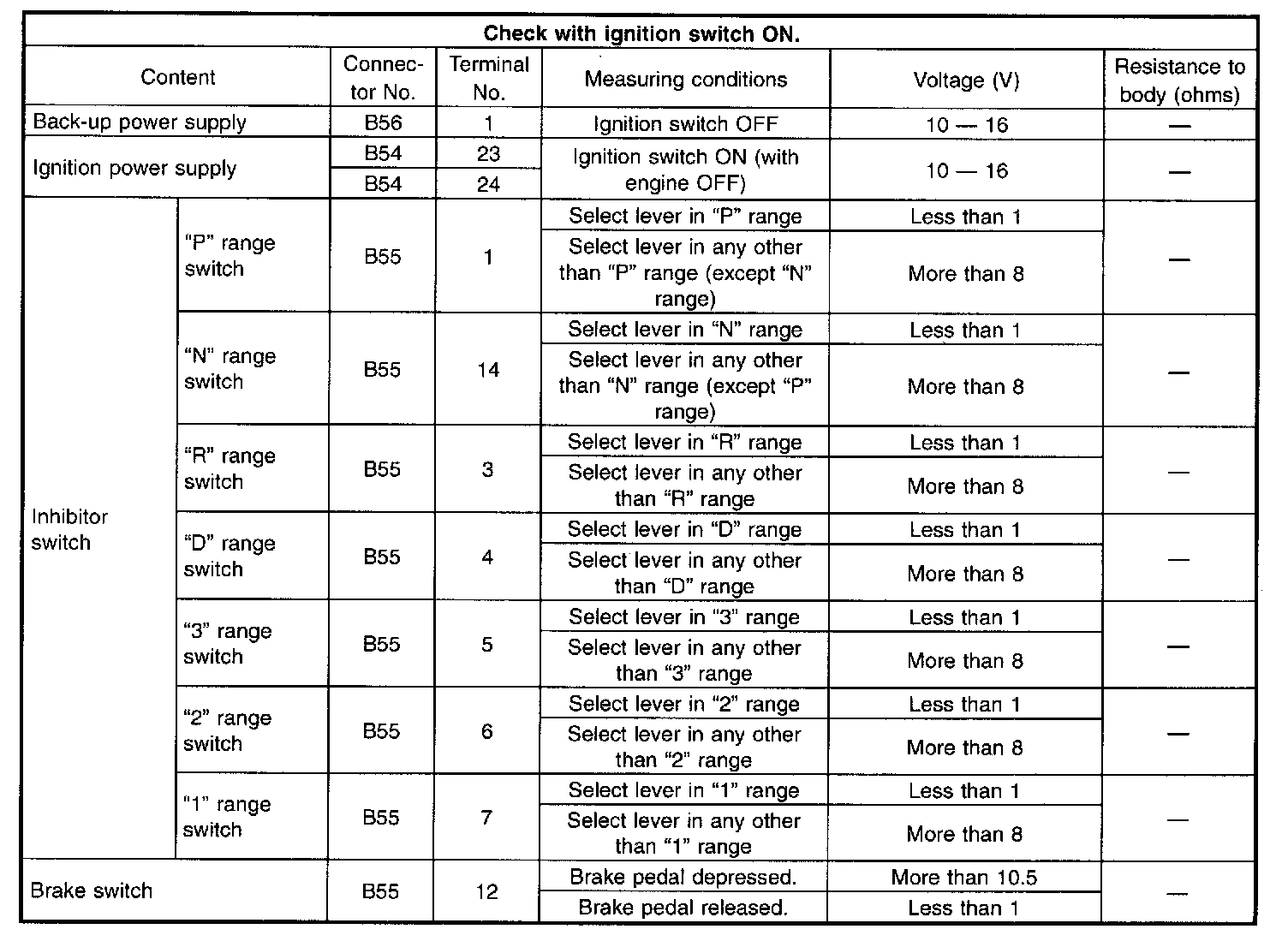

Electrical Specification Part 1:

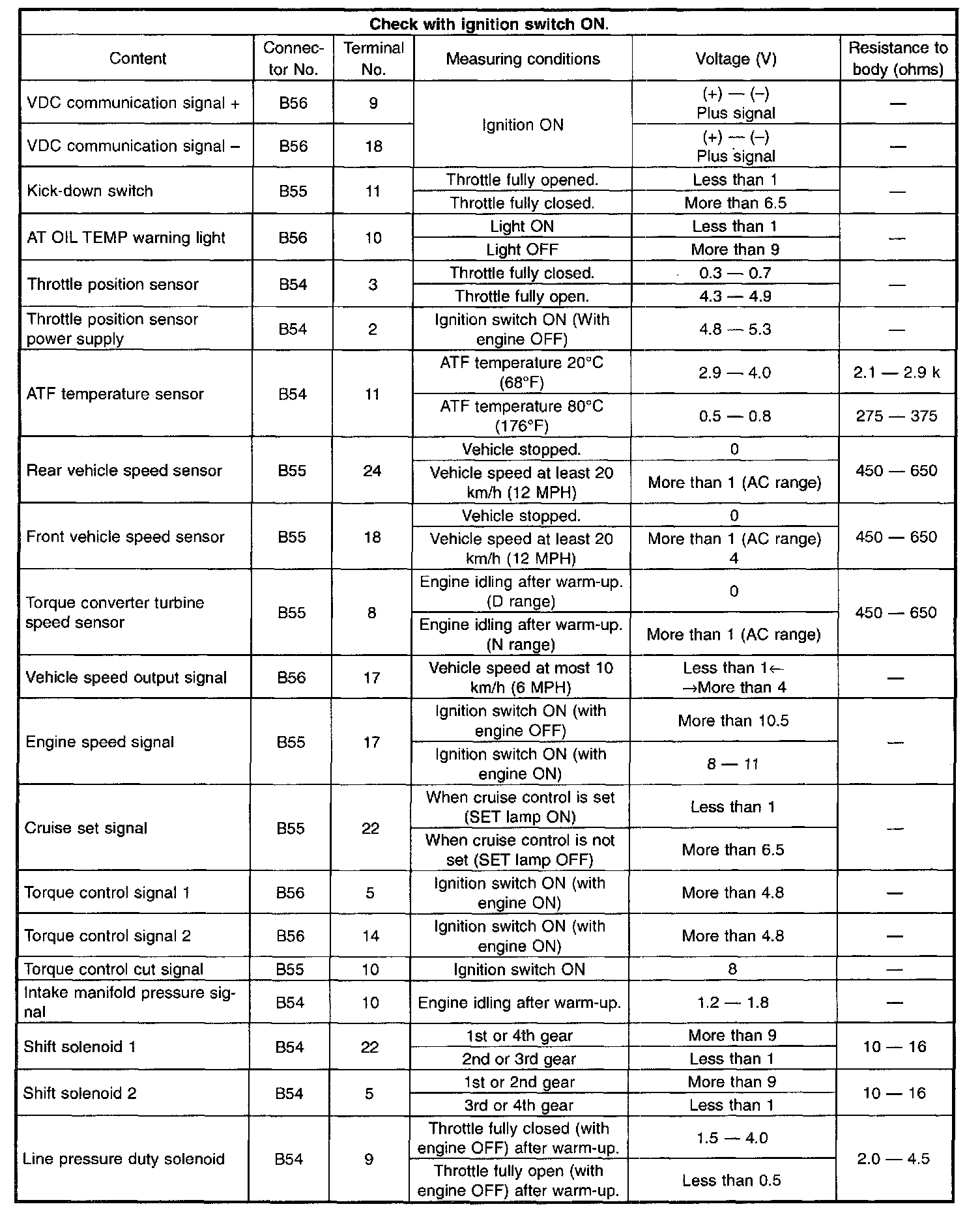

Electrical Specification Part 2:

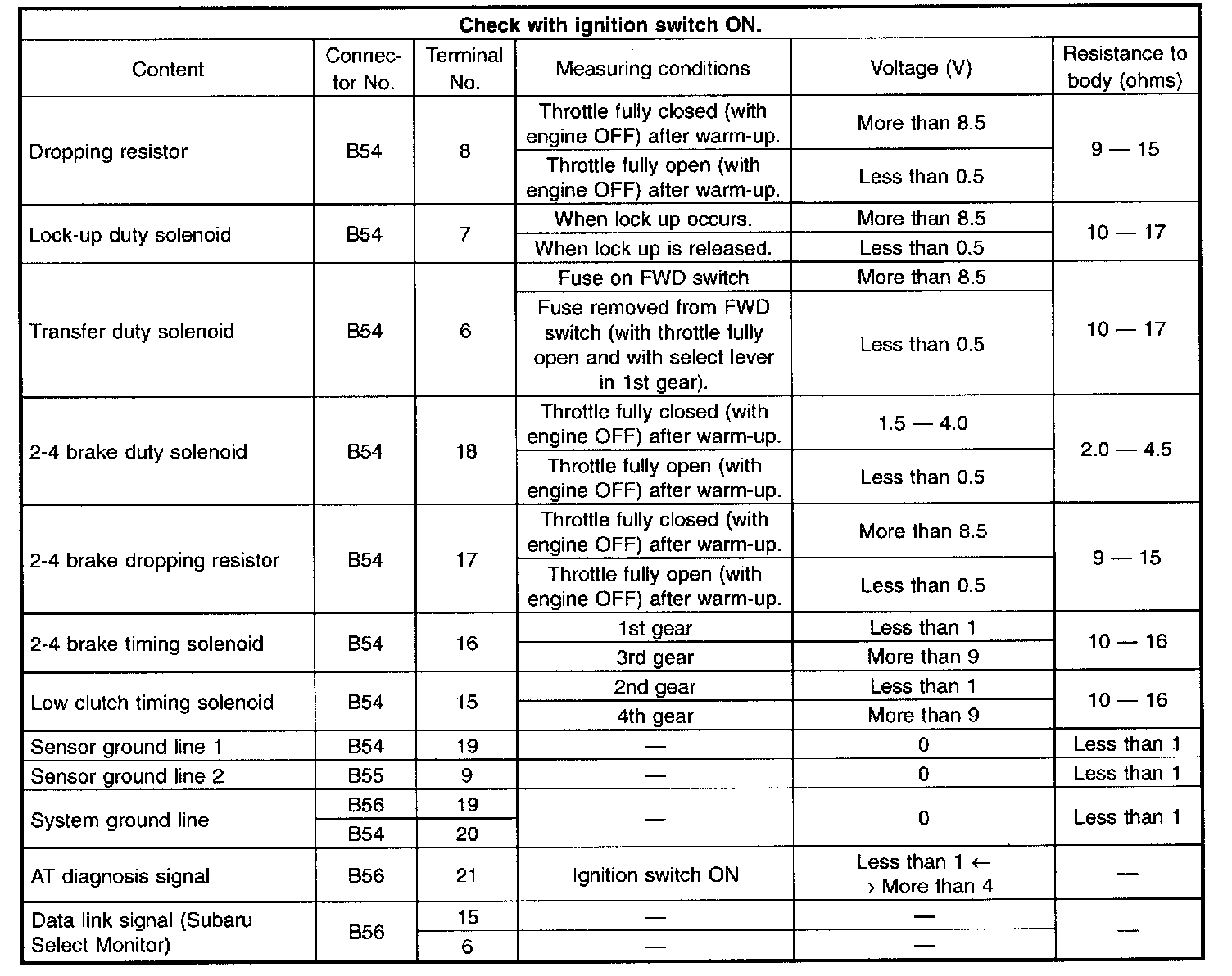

Electrical Specification Part 3:



Electrical Specification Part 4:
