Main Shaft: Adjustments

ADJUSTMENT





Selection of main shaft rear plate

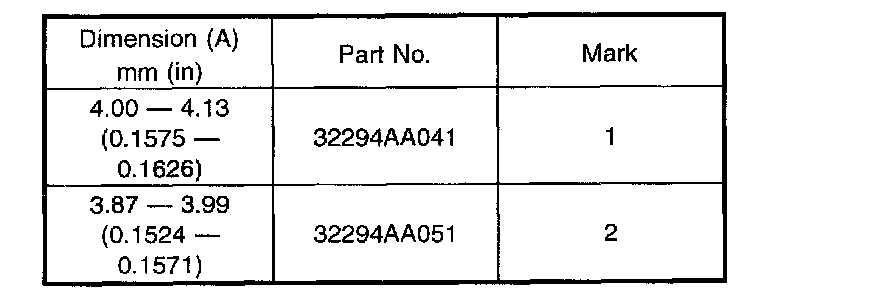

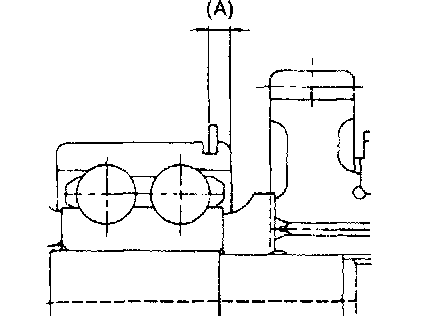

Using ST, measure the amount (A) of ball bearing protrusion from transmission main case surface and select the proper plate in the following table:

NOTE: Before measuring, tap the end of main shaft with a plastic hammer lightly in order to make the clearance zero between the main case surface and the moving flange of bearing.





ST 498147000 DEPTH GAUGE
