Disassembly and Assembly

DISASSEMBLY

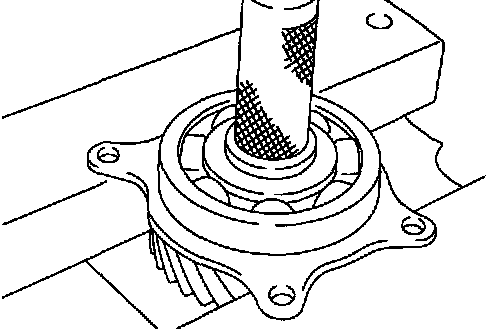

1. Remove snap ring.





2. Remove ball bearing.

ASSEMBLY

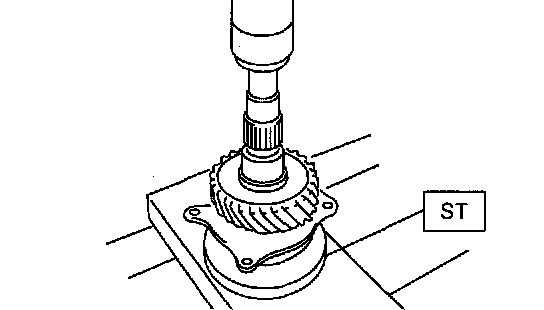

1. Set the ST to inner race of bearing and install to drive shaft.
ST 39817700 INSTALLER

CAUTION: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton)

2. Install snap ring on transfer drive shaft.

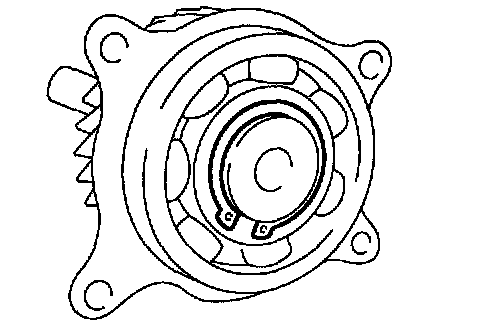

3. Inspect clearance between snap ring and inner race of ball bearing.
