Disassembly and Assembly

Reverse Check Sleeve
DISASSEMBLY

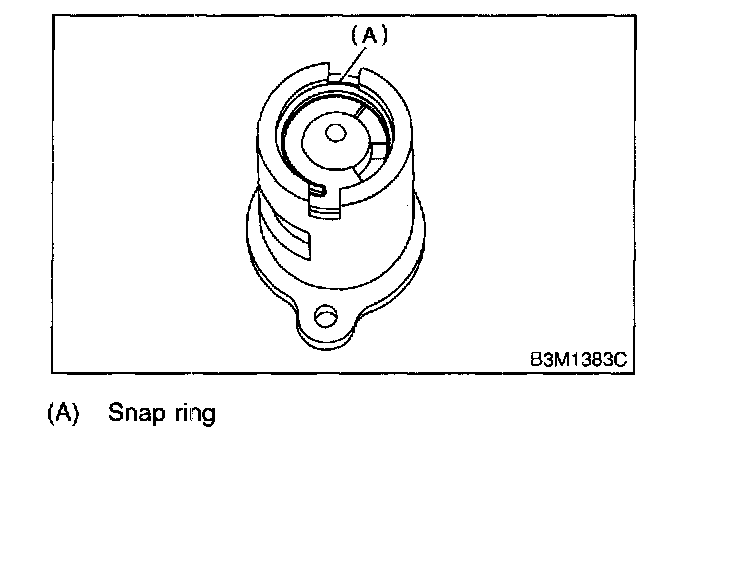

1. Cover the reverse check sleeve with a rag, and remove snap ring using a screwdriver.

NOTE: Replace snap ring with a new one if deformed or weakened.

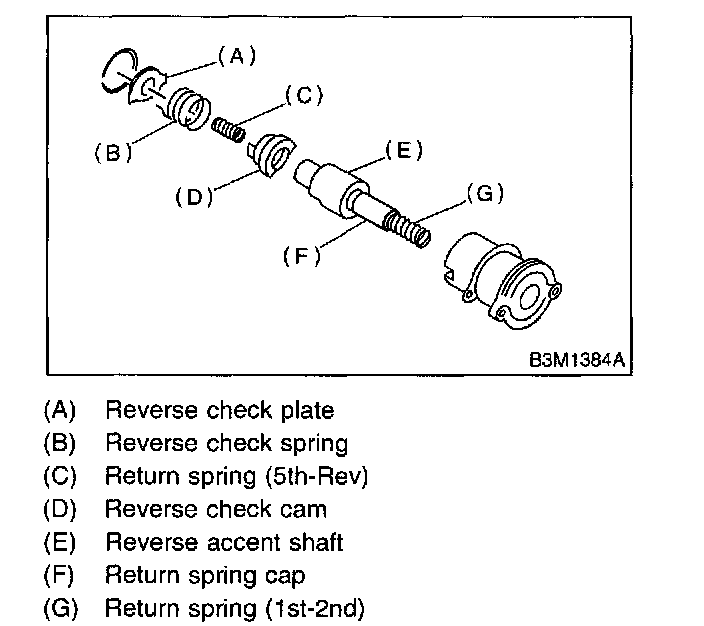

2. Remove reverse check plate, reverse check spring, reverse check cam, return spring (5th-Rev), reverse accent shaft, return spring cap and return spring (1st-2nd).
3. Remove O-ring.

NOTE:
^ Reverse check sleeve assembly uses an O-ring, which should not be scratched.
^ Be careful not to break adjustment shim placed between reverse check sleeve assembly and case.

ASSEMBLY

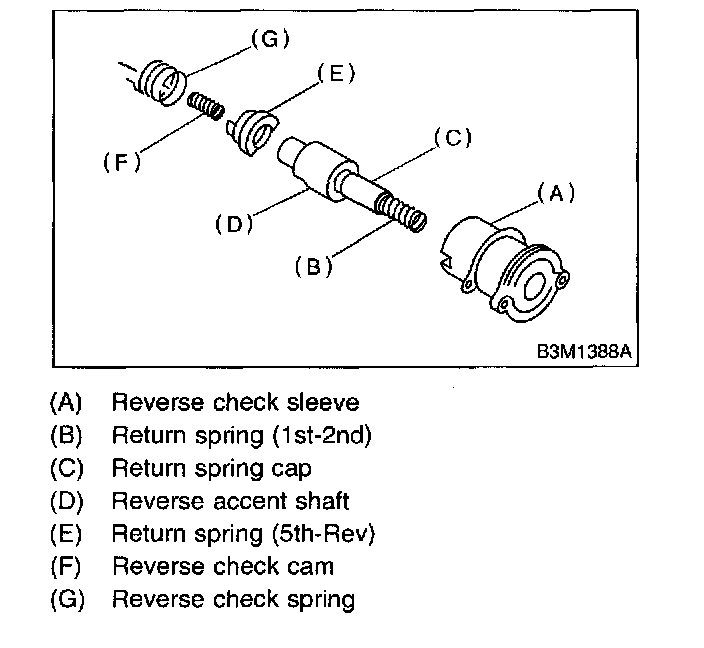

1. Install return spring (1st-2nd), return spring cap, reverse accent shaft, check cam, return spring and check spring onto reverse check sleeve.

NOTE: Be sure the bent section of reverse check spring is positioned in the groove in check cam.





2. Hook the bent section of reverse check spring over reverse check plate.
3. Rotate cam so that the protrusion of reverse check cam is at the opening in plate.
4. With cam held in that position, install plate onto reverse check sleeve and hold with snap ring.
5. Position O-ring in groove in sleeve.
