Disassembly and Assembly

Center Differential
DISASSEMBLY





NOTE: Do not disassemble center differential because it is a non-disassemble part.

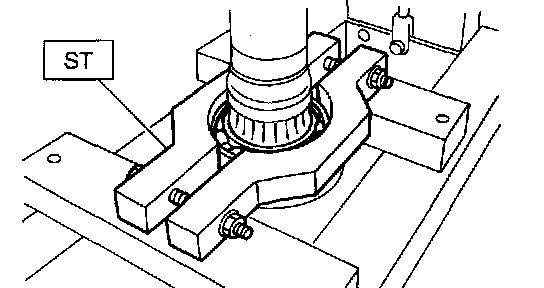

Remove ball bearing using ST.

NOTE: Do not reuse ball bearing. Prepare a new ball bearing.

ST 498077300 CENTER DIFFERENTIAL BEARING REMOVER

ASSEMBLY

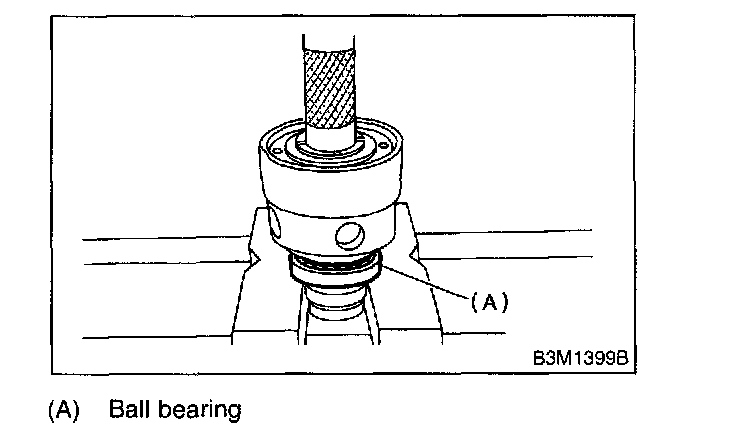

Install ball bearing to center differential assembly.

CAUTION: Do not apply pressure in excess of 10 kN (1 ton, 1.1 US ton, 1.0 Imp ton).
