Removal and Installation

Transfer Driven Gear
REMOVAL
1. Remove the manual transmission assembly from vehicle.
2. Remove back-up light switch and neutral position switch.
3. Remove transfer case with extension case assembly.
4. Remove extension case assembly.





5. Remove transfer driven gear.





6. Remove bearing cup from extension case and transfer case.

INSTALLATION

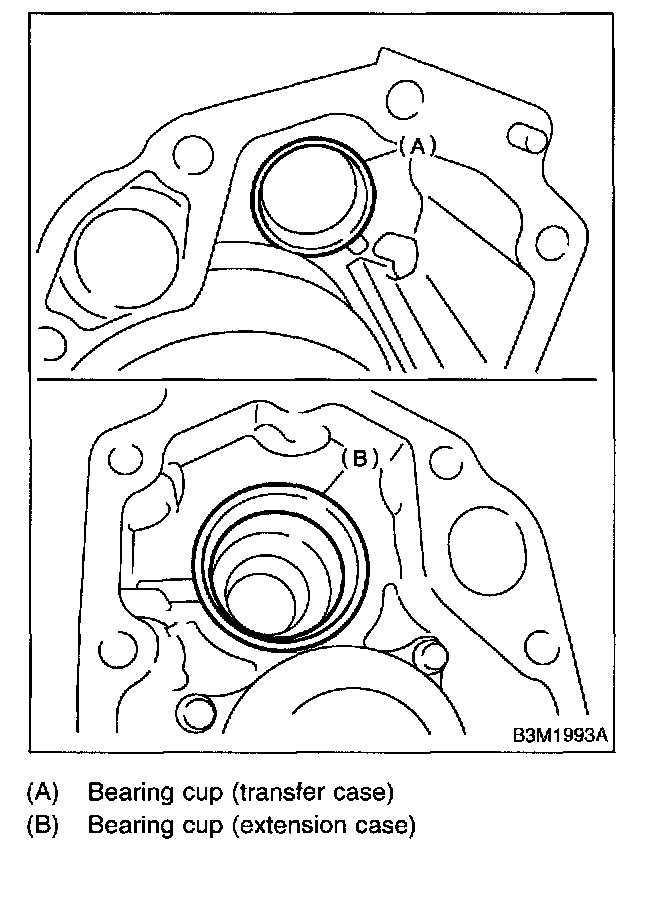

1. Install bearing cup to extension case and transfer case.





2. Install transfer driven gear.
3. Install transfer case and extension case assembly.
4. Install back-up light switch and neutral position switch.
5. Install the manual transmission assembly to vehicle.
