13. Front Vehicle Speed SensorA: REMOVAL
1. Set up the vehicle on the lift.

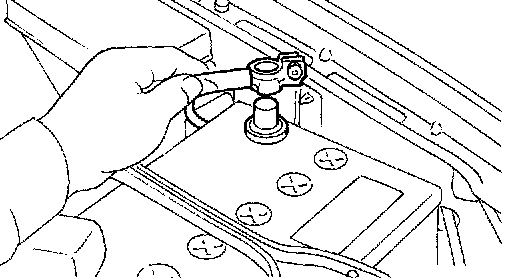

2. Disconnect battery ground cable.
3. Remove air cleaner case or intake chamber.

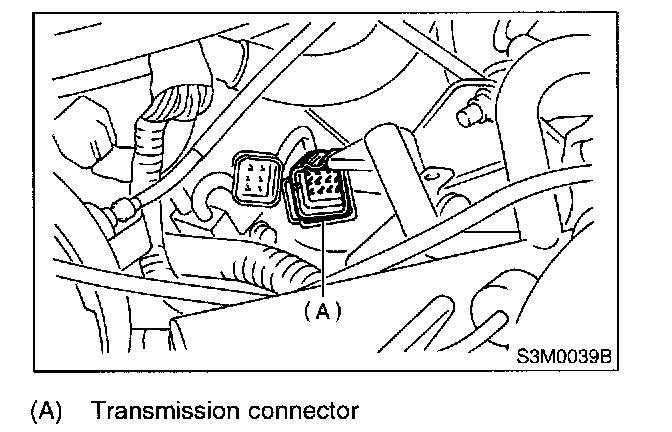

4. Disconnect transmission connector.
5. Remove pitching stopper.
6. Remove the transmission connector from stay.
7. Lift-up the vehicle.
8. Clean transmission exterior.

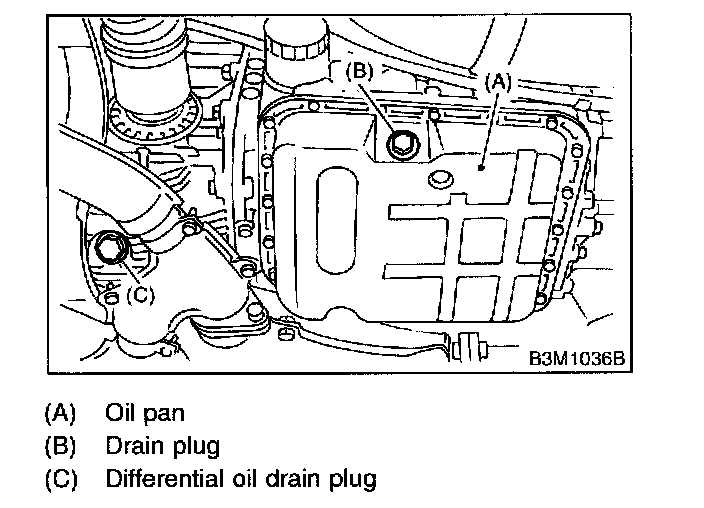

9. Drain ATF completely.
NOTE: Tighten ATF drain plug after draining ATF.
Tightening torque: 25 Nm (2.5 kgf-cm, 18.1 ft. lbs.)
10. Remove front, center, rear exhaust pipes and muffler.
11. Remove the shield cover.
12. Remove the propeller shaft.
13. Place transmission jack under crossmember.
NOTE: Make sure that the support plates of transmission jack don't touch the crossmember.

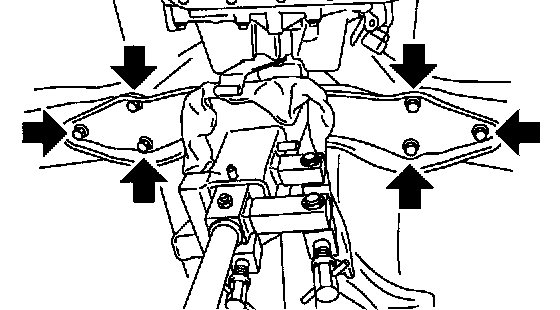

14. Remove the transmission rear crossmember bolts.
15. Lower the AT jack.
NOTE: Do not separate the AT jack and transmission.
16. Remove the oil cooler outlet pipe.
NOTE: When removing outlet pipe, be careful not to lose balls and springs used with retaining screws.
17. Remove front and rear vehicle speed sensor and torque converter turbine speed sensor.

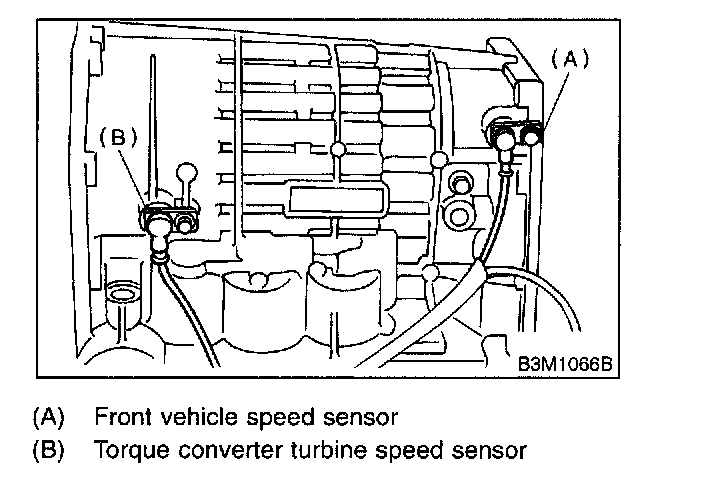

^ Front vehicle speed sensor end torque converter turbine speed sensor

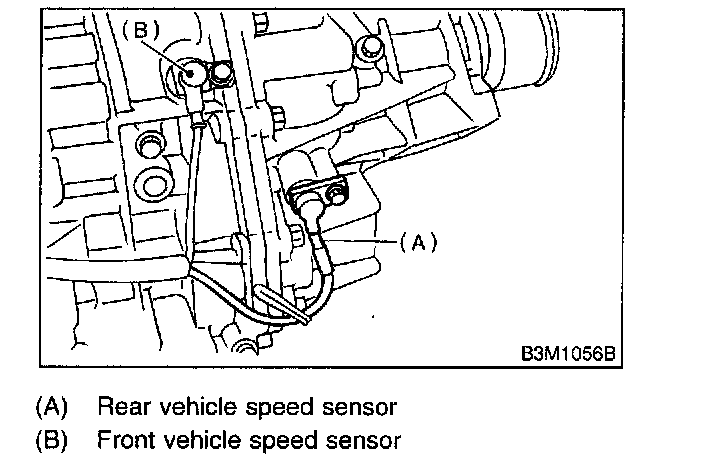

^ Rear vehicle speed sensor
18. Remove oil pan.

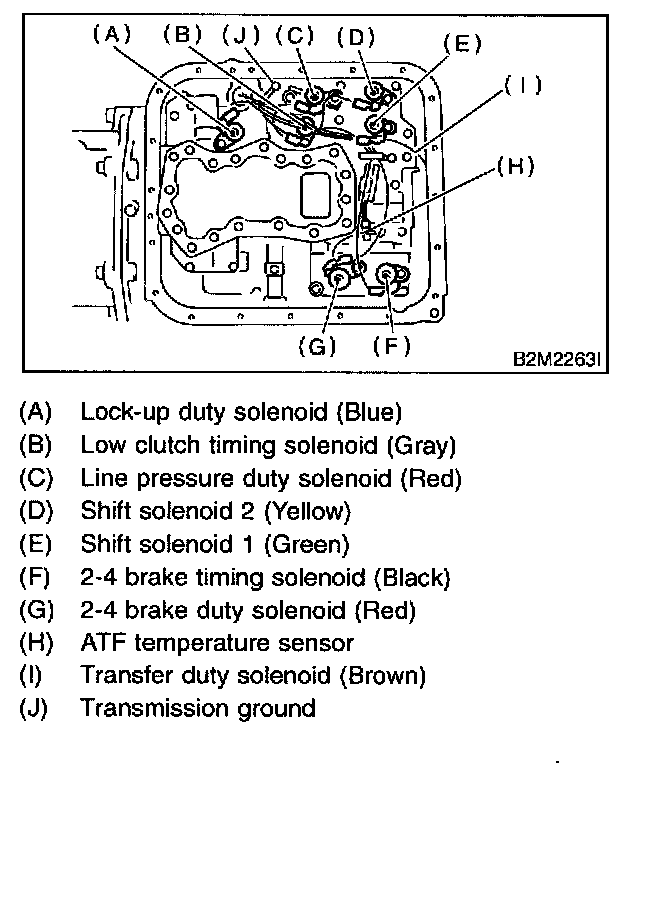

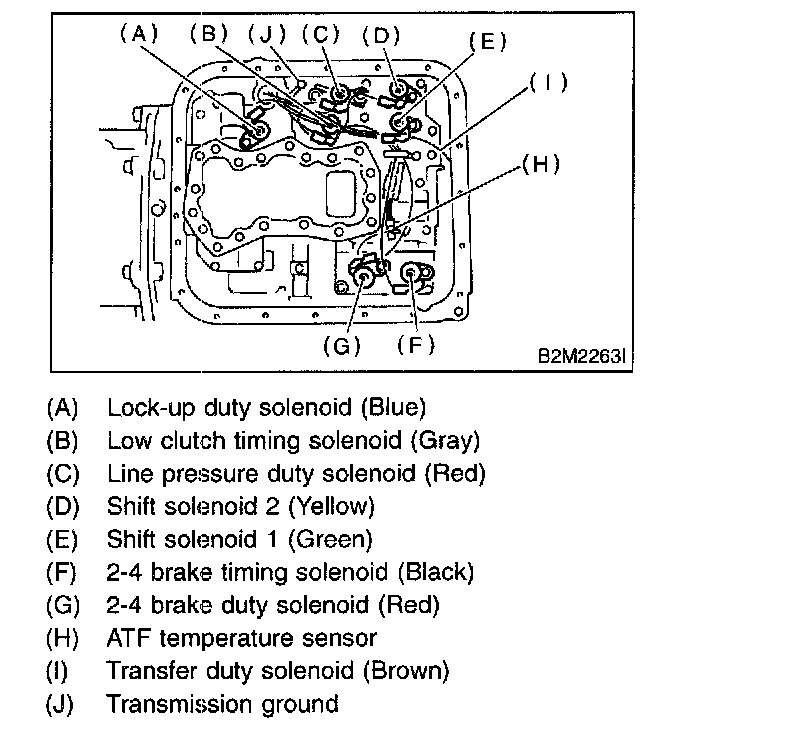

19. Disconnect duty solenoids and ATF temperature sensor connectors. Remove connectors from clip and disconnect connectors.
20. Remove harness assembly.
B: INSTALLATION

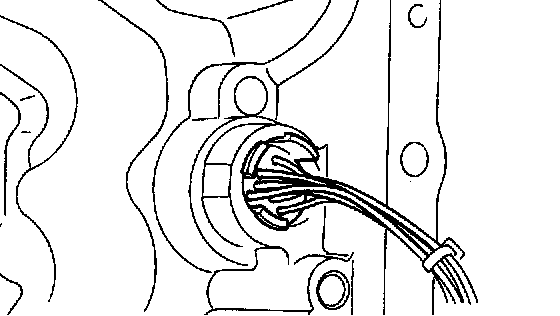

1. Pass the harness assembly through the hole in the transmission case.
2. Connect harness connectors.
Connect connectors of same color, and secure connectors to valve body sing clips.
Tightening torque (Transmission ground terminal): 8 Nm (0.8 kgf-cm, 5.8 ft. lbs.)
3. Apply proper amount of liquid gasket to the entire oil pan mating surface.
Fluid packing: THREE BOND 1217B
4. Apply liquid gasket fully to 3 holes other than screw holes on the transmission case.
Fluid packing: THREE BOND 121 7B

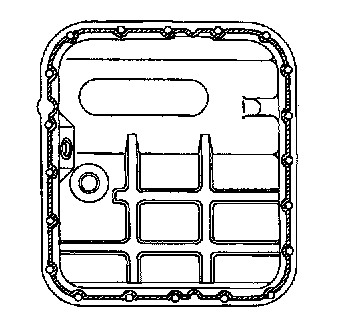

5. Install the oil pan.
Tightening torque: 25 Nm (2.5 kgf-cm, 18.1 ft. lbs.)
6. Install the front and rear vehicle speed sensor, and also the torque converter turbine speed sensor, and then fasten the harness.
Tightening torque: 7 Nm (0. 7 kgf-cm, 5.1 ft. lbs.)
7. Install oil cooler outlet pipe.
NOTE: Be sure to use a new aluminum washer.
Tightening torque: 25 Nm (2.5 kgf-cm, 18.1 ft. lbs.)
8. Install transmission rear crossmember bolts.
Tightening torque: 75 Nm (7.6 kgf-cm, 55 ft. lbs.)
9. Install propeller shaft.
10. Install shield cover.
11. Install front, center, rear exhaust pipes and muffler.
12. Lower the vehicle.
13. Install the transmission connector to the stay.
14. Install pitching stopper.
15. Install air cleaner case or air intake chamber.
