Removal and Installation
REMOVAL1. Remove gear shift knob.
2. Remove console box.

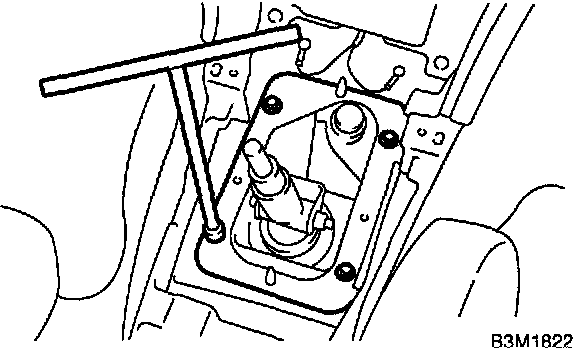

3. Remove boot plate from body.
4. Lift the vehicle.
5. Remove rear exhaust pipe and muffler.
6. Remove heat shield cover.

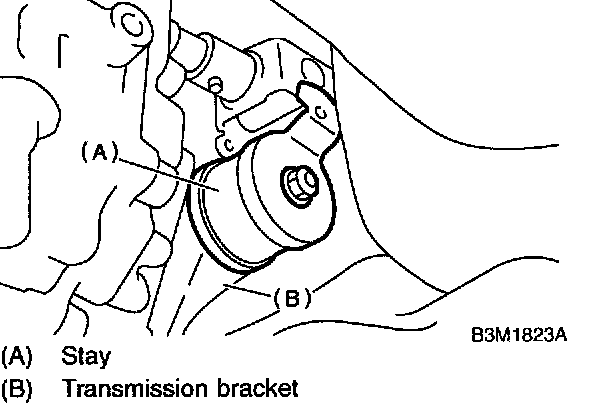

7. Remove stay from transmission bracket.
8. Remove rod from joint.

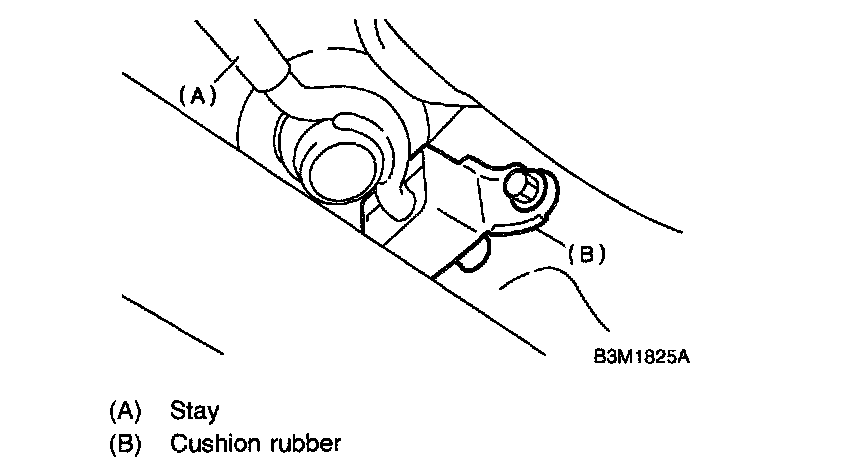

9. Remove cushion rubber from body.

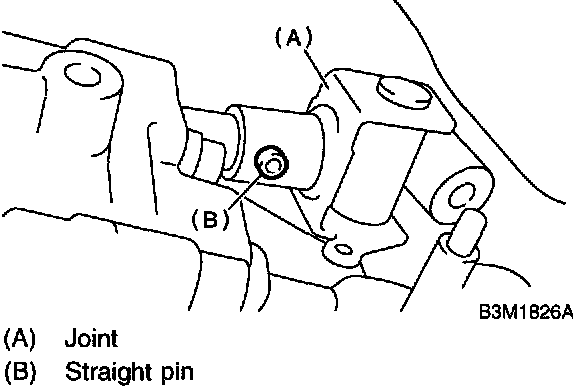

10. Remove joint and then extract spring pin.
11. Lower the vehicle.
12. Remove gear shift lever.
INSTALLATION
1. Install joint to transmission and secure with spring pin.

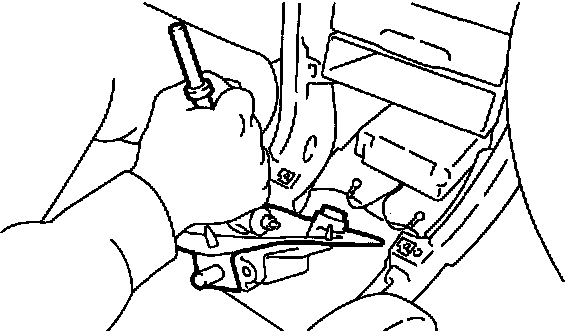

2. Insert gear shift lever from room side.
NOTE: After inserting rod and stay, temporarily put them onto transmission mount.
3. Lift the vehicle.

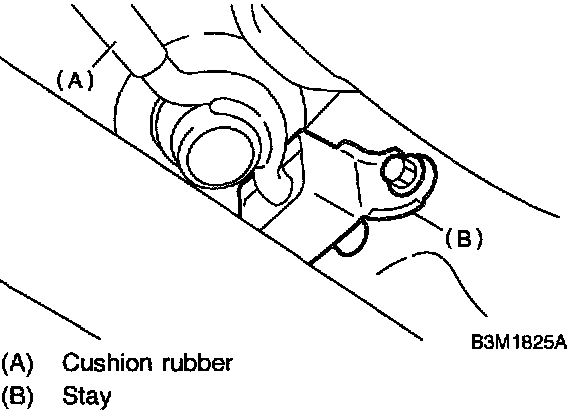

4. Mount cushion rubber on the body.
Tightening torque: 18 Nm (1.8 kgf-cm, 13.0 ft. lbs.)
5. Connect rod to the joint.
Tightening torque: 18 Nm (1.8 kgf-cm, 13.0 ft. lbs.)
6. Connect stay to transmission bracket.
Tightening torque: 18 Nm (1.8 kgf-cm, 13.0 ft. lbs.)
7. Install heat shield cover.
8. Install rear exhaust pipe and muffler.
9. Mount boot plate on body.
Tightening torque: 7.5 Nm (0.76 kgf-cm, 5.5 ft. lbs.)
10. Install console box.
