Reverse Idler Gear: Testing and Inspection

INSPECTION

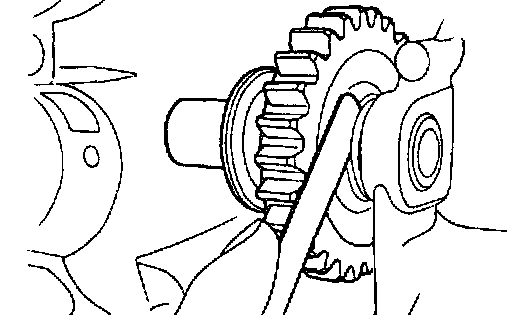

1. Move the reverse shifter rod toward the reverse side. Inspect clearance between reverse idler gear and transmission case wall.
If out of specification, select the appropriate reverse shifter lever and adjust.

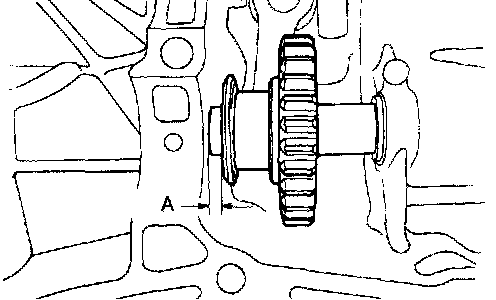

Clearance A: 6.0 - 7.5 mm (0.236 - 0.295 inch)





2. After installing a suitable reverse shifter lever, shift into neutral. Inspect clearance between reverse idler gear and transmission case wall. If out of specification, select the appropriate washer and adjust.
Clearance: 0 - 0.5 mm (0 - 0.020 inch)
3. Check the reverse idler gear and shaft for damage. Replace if damaged.
