Front Axle
Front Axle
INSPECTION
Check the removed parts for wear and damage. If defective, replace with new ones.
CAUTION:
^

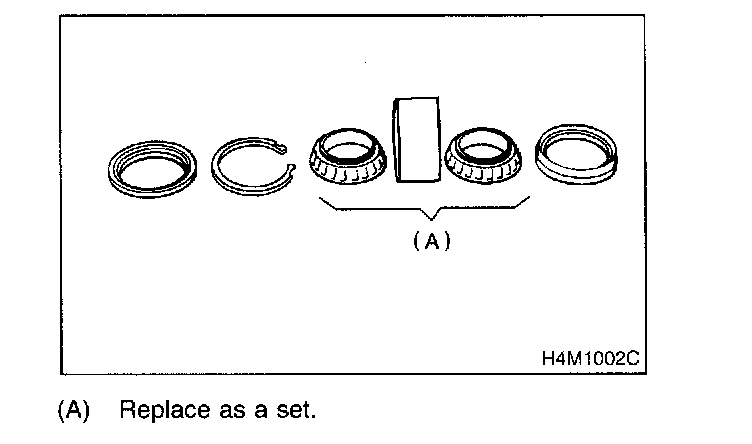

If bearing is faulty, replace it as the bearing set.
^
Be sure to replace oil seal at every overhaul.
