Differential Case: Service and Repair

REMOVAL
1. Disconnect battery ground cable.
2. Jack-up the vehicle.

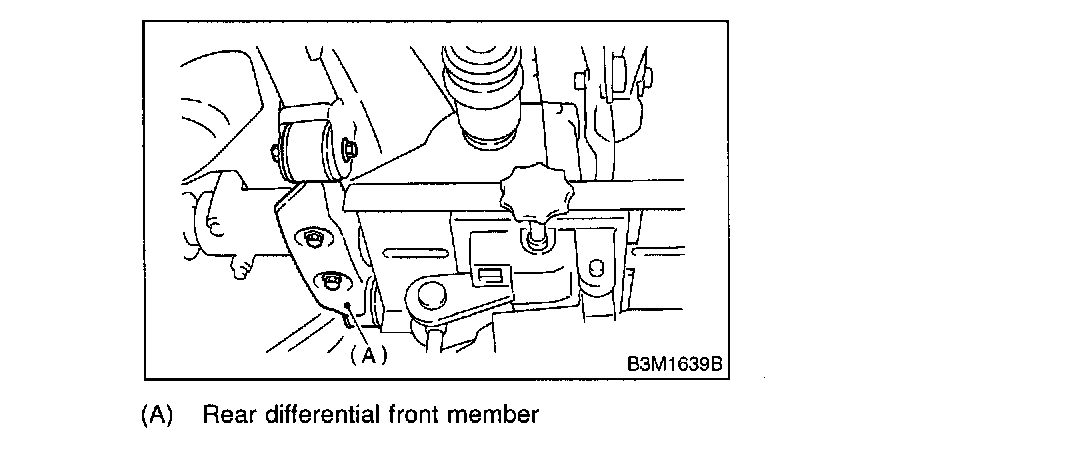

3. Using a transmission jack, support rear differential, and remove rear differential front member.

INSTALLATION





1. Install rear differential front member.
Tightening torque:
T1: 65 Nm (6.6 kgf-cm, 48 ft. lbs.)
T2: 110 Nm (11.2 kgf-cm, 81 ft. lbs.)
