Clutch Pedal Assembly: Testing and Inspection

INSPECTION





1. CLUTCH PEDAL

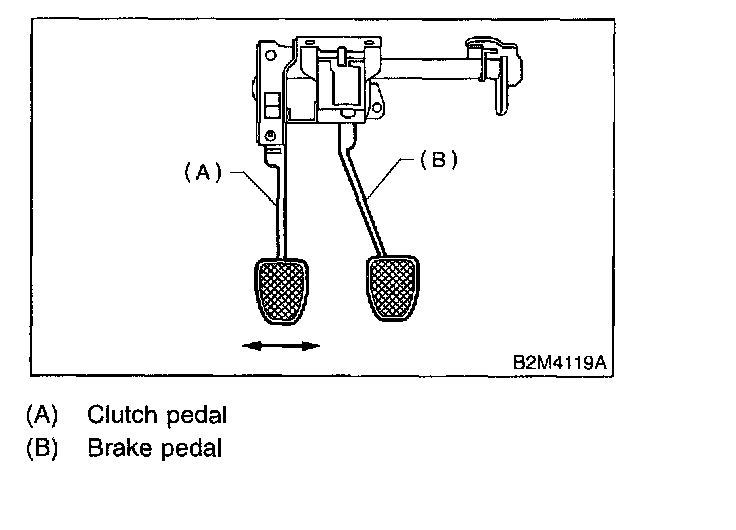

Move clutch pedal pads in the lateral direction with a force of approximately 10 N (1 kgf, 2 lb) to ensure pedal deflection is in specified range. If excessive deflection is noted, replace bushings with new ones.
Deflection of clutch pedal:
Service limit 5.0 mm (0.197 inch) or less
