Removal and Installation

REMOVAL

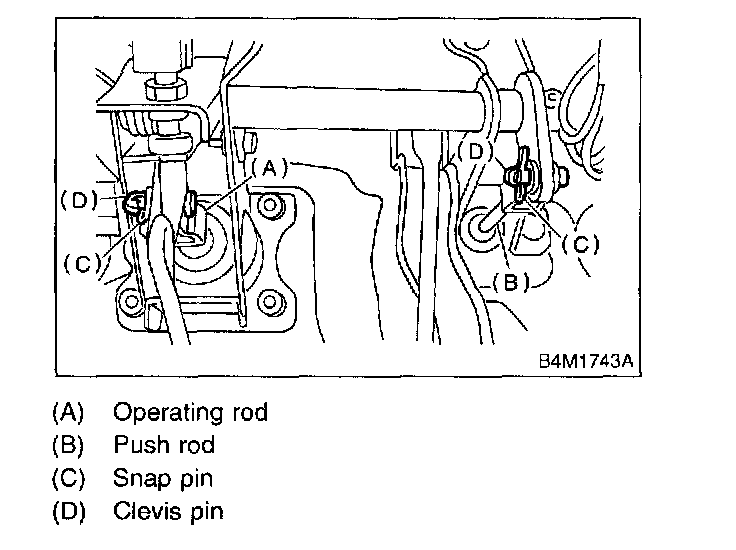

1. Remove steering column.
2. Disconnect stop light and clutch switch connectors.
3. Remove snap pins, which secure lever to push rod and operating rod.





4. Remove clevis pins, which secure lever to push rod and operating rod.

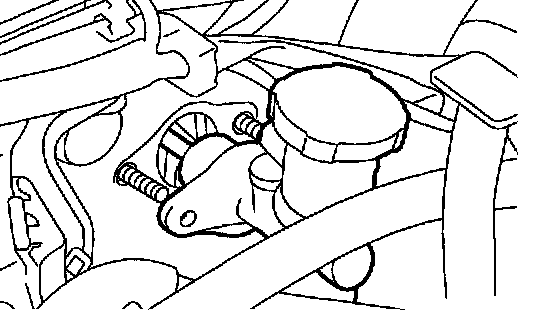

5. Remove nut, which secures clutch master cylinder.
6. Remove bolts and nuts which secure brake and clutch pedals, and remove pedal assembly.

INSTALLATION
1. Install in the reverse order of removal.

NOTE:
^ Be careful not to kink accelerator cable.
^ Always use new clevis pins.

2. Adjustment of clutch pedal and adjustment after pedal installation.
