Clutch Master Cylinder: Testing and Inspection
INSPECTION

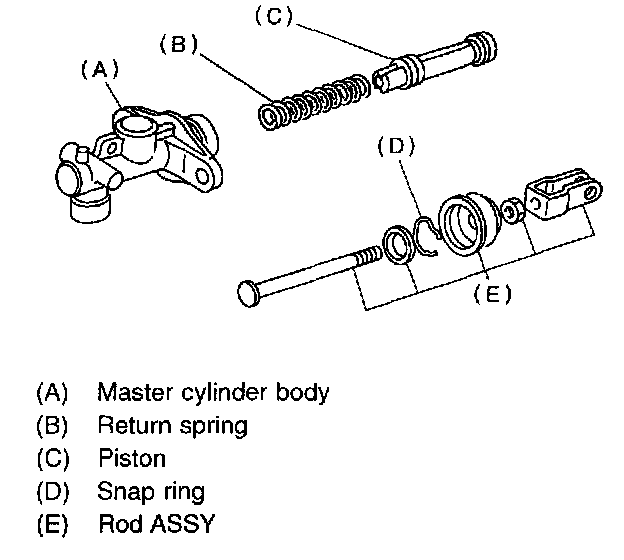

If any damage, deformation, wear, swelling, rust or other faults are found on the cylinder, piston, push rod, fluid reservoir, return spring and gasket, replace the faulty part.
