Clutch Disc: Service and Repair
2. Clutch Disc and CoverA: REMOVAL
1. Remove transmission assembly from vehicle body.

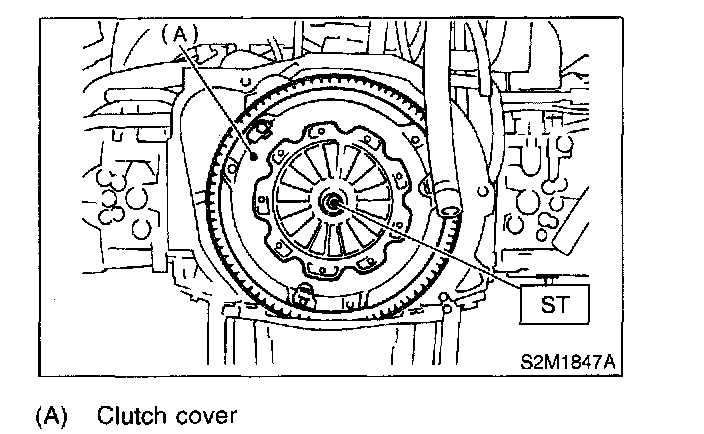

ST 498497100 CRANKSHAFT STOPPER
2. Install ST on flywheel.
3. Remove clutch cover and clutch disc.
NOTE:
^ Take care not to allow oil on the clutch disc facing.
^ Do not disassemble either clutch cover or clutch disc.
B: INSTALLATION

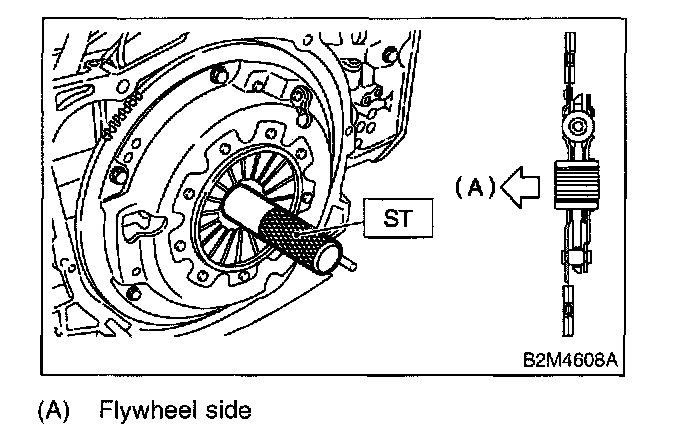

1. Insert ST into the clutch disc and install them on the flywheel by inserting the ST end into the pilot bearing.
NOTE: When installing clutch disc, be careful of its direction.
ST 499747100 CLUTCH DISC GUIDE
2. Install clutch cover on flywheel and tighten bolts to the specified torque.
NOTE:

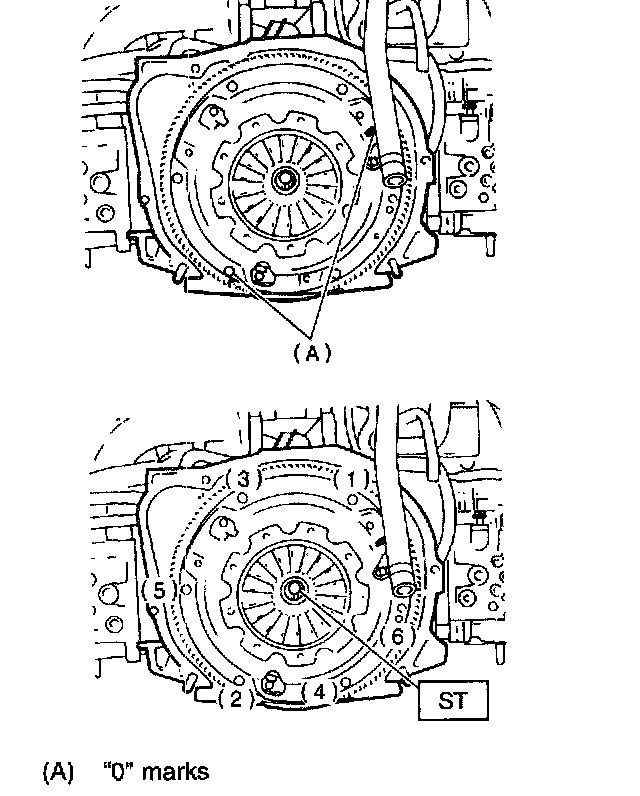

^ When installing the clutch cover on the flywheel, position the clutch cover so that there is a gap of 120° or more between "0" marks on the flywheel and clutch cover. ("0" marks indicate the directions of residual unbalance.)
^ Note the front and rear of the clutch disc when installing.
^ Temporarily tighten bolts by hand. Each bolt should be tightened to the specified torque in a crisscross fashion.
Tightening torque: 15.7 Nm (1.6 kgf-cm, 11.6 ft. lbs.)
3. Remove ST. ST 499747100 CLUTCH DISC GUIDE
4. Install transmission assembly.
