Oil Cooler Pipes

A: REMOVAL
1. Remove oil charger pipe.

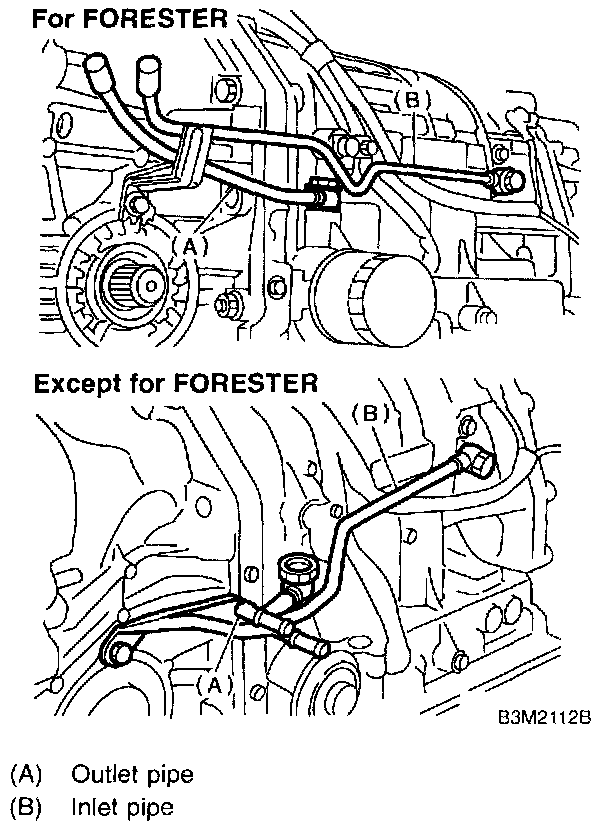

2. Remove the oil cooler inlet and outlet pipes.

NOTE: When removing outlet pipes, be careful not to lose balls and springs used with retaining screws.

B: INSTALLATION
1. Insert oil cooler outlet ball and spring.
2. Install the oil cooler outlet pipe with new gaskets.
Tightening torque: 44 Nm (4.5 kgf-m, 32.5 ft. lbs.)





3. Install the oil cooler inlet pipe with new gaskets.
Tightening torque: 25 Nm (2.5 kgf-m, 18.1 ft. lbs.)
4. Install oil charger pipe with O-ring.

C: INSPECTION
Make sure the oil cooler pipe is not deformed or otherwise damaged.
