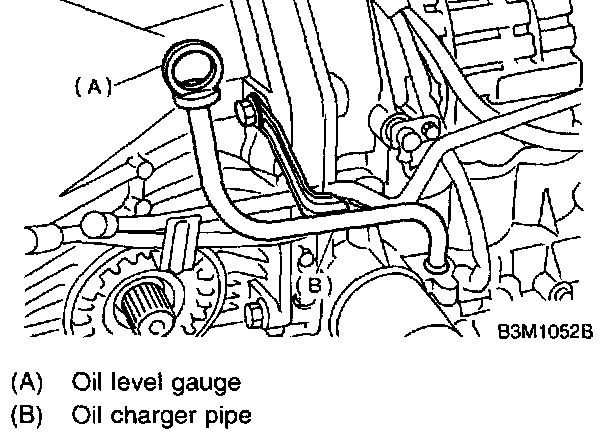

Oil Charger Pipe

A: REMOVAL





1. Remove the oil charger pipe, and remove the O-ring from the flange face. Attach the O-ring to the pipe.

B: INSTALLATION





1. Install the oil charger pipe with O-ring.

NOTE: Be careful not to damage the O-ring.

Tightening torque: 41 Nm (4.2 kgf-m, 30.4 ft. lbs.)

C: INSPECTION
Make sure the oil charger pipe is not deformed or otherwise damaged.
