Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

INSPECTION

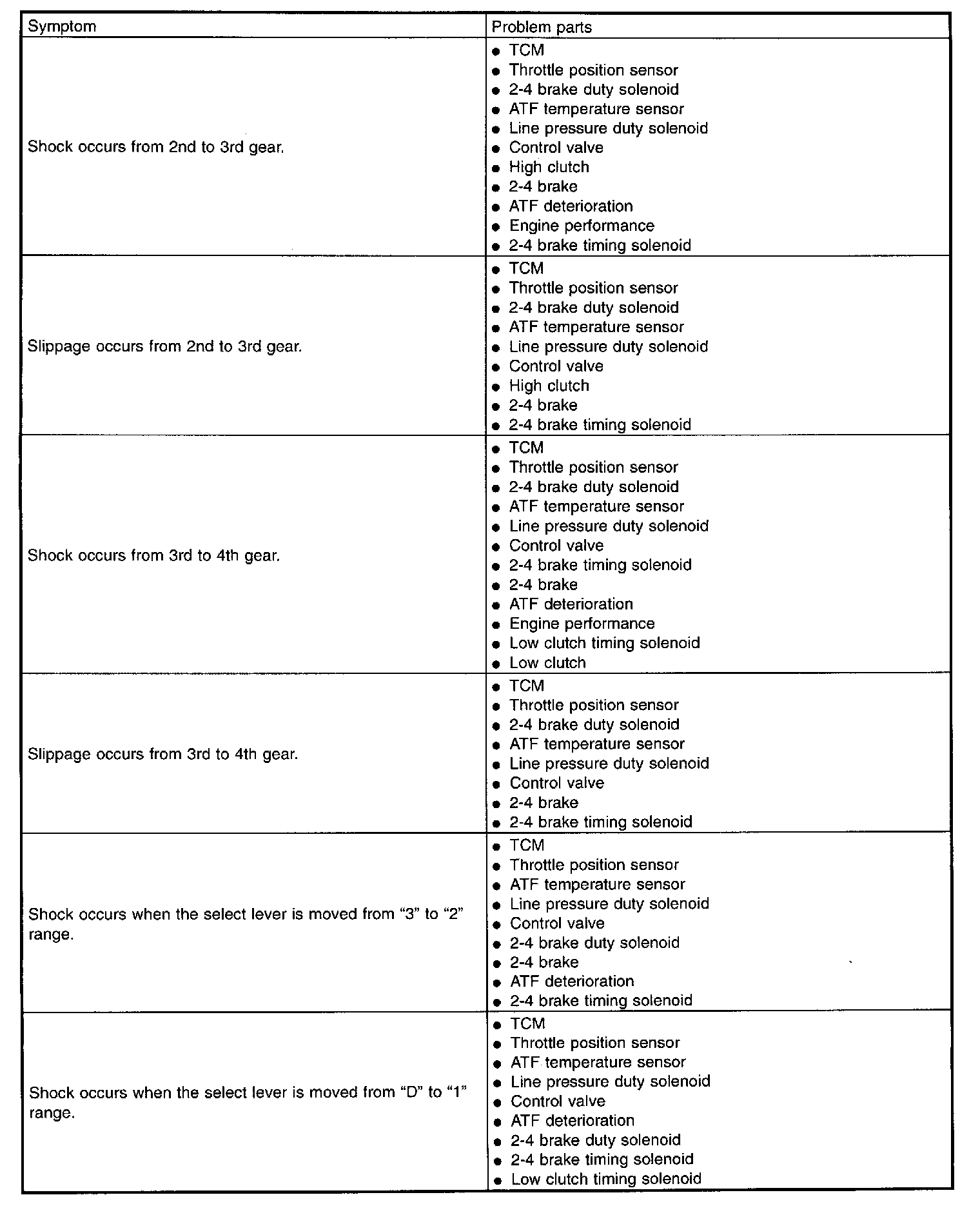

Symptoms Part 1 of 5

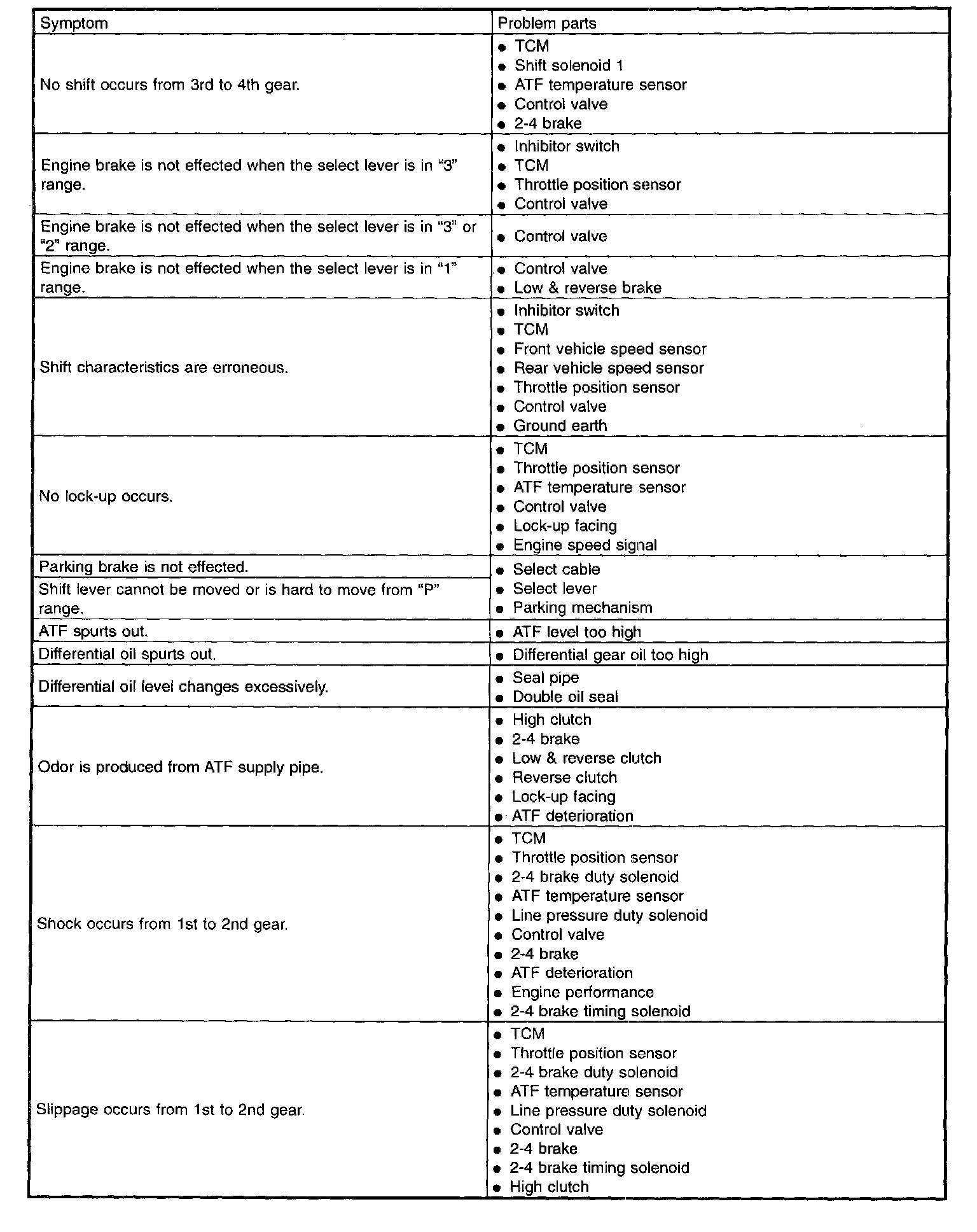

Symptoms Part 2 of 5

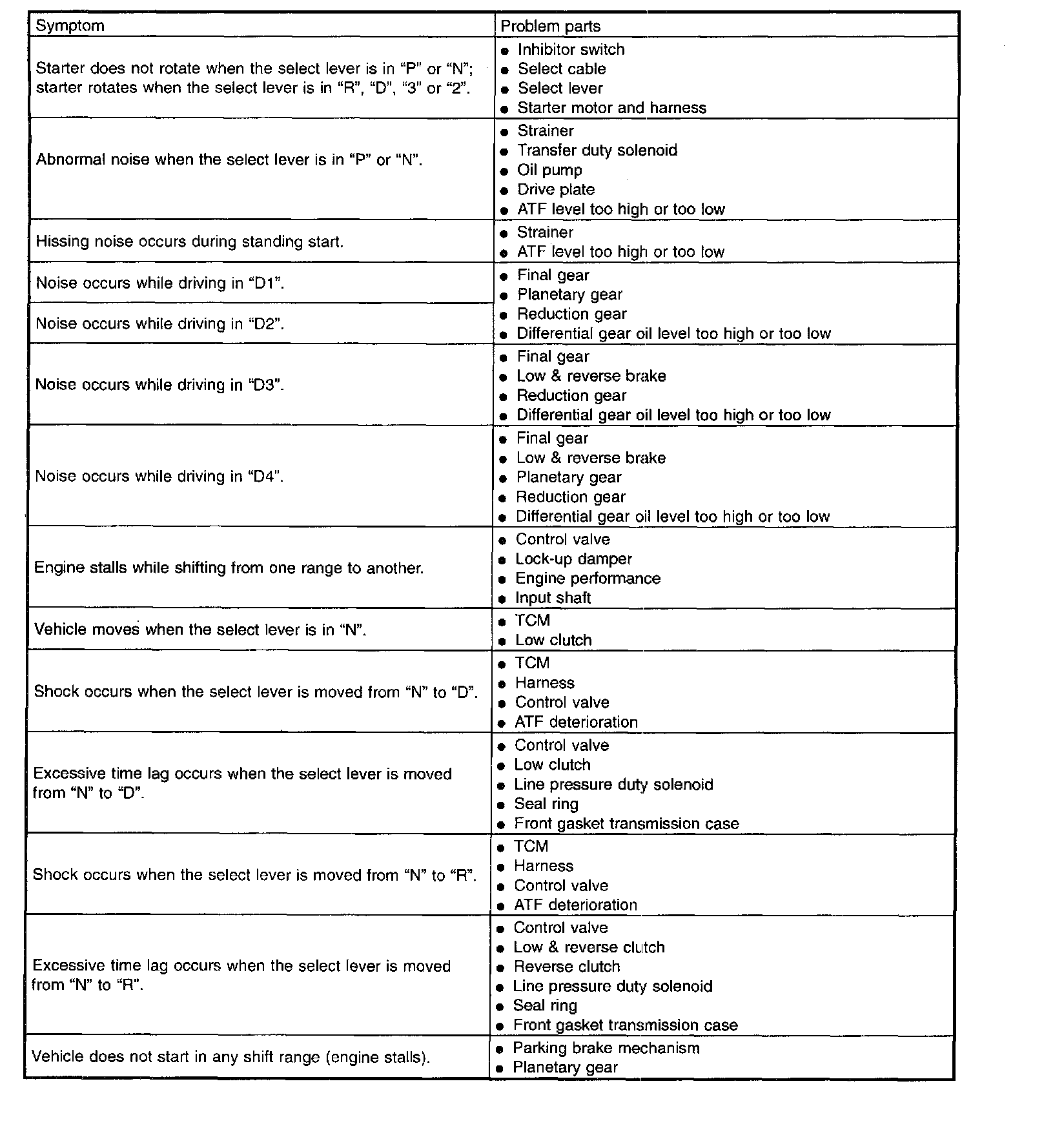

Symptoms Part 3 of 5

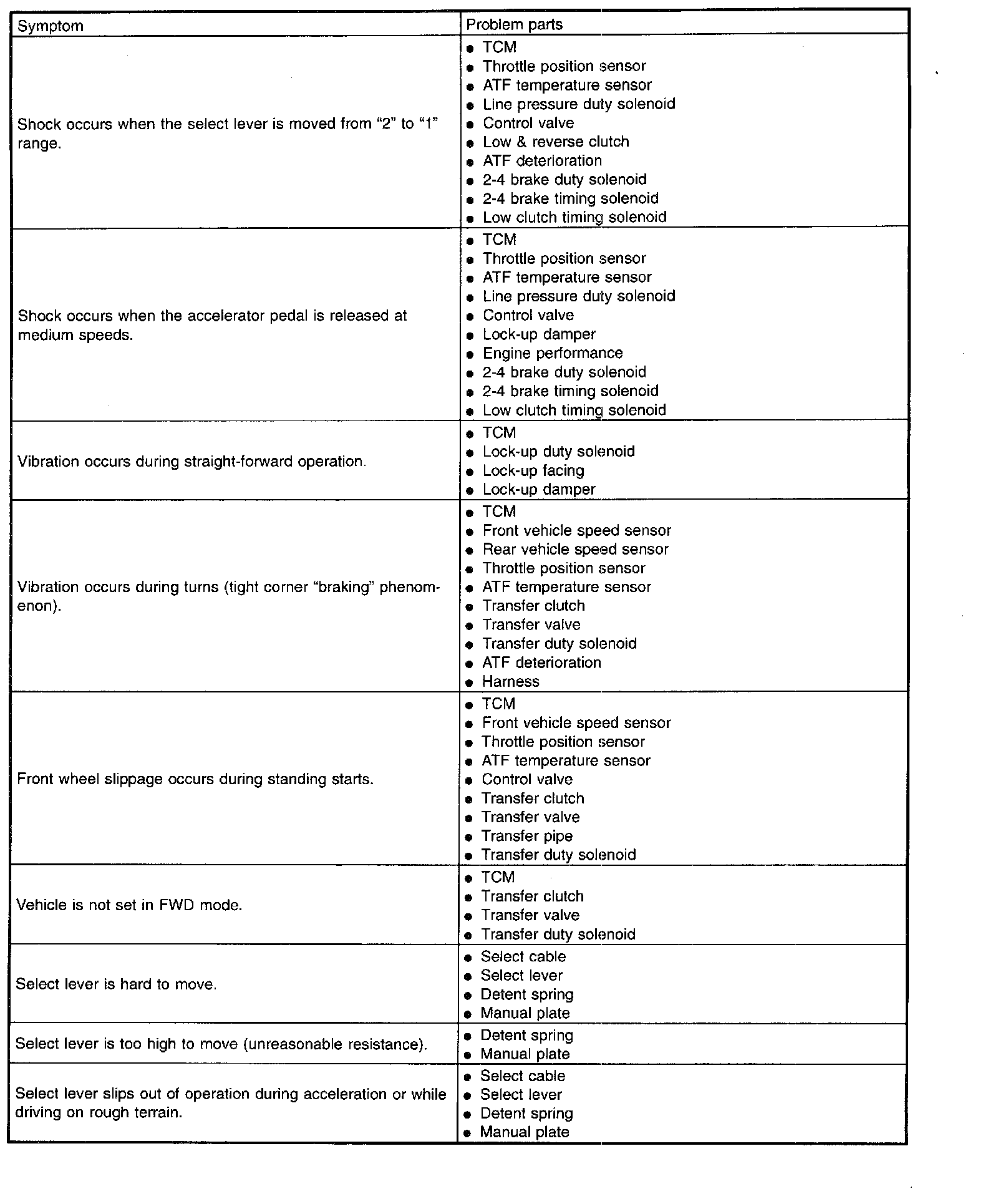

Symptoms Part 4 of 5

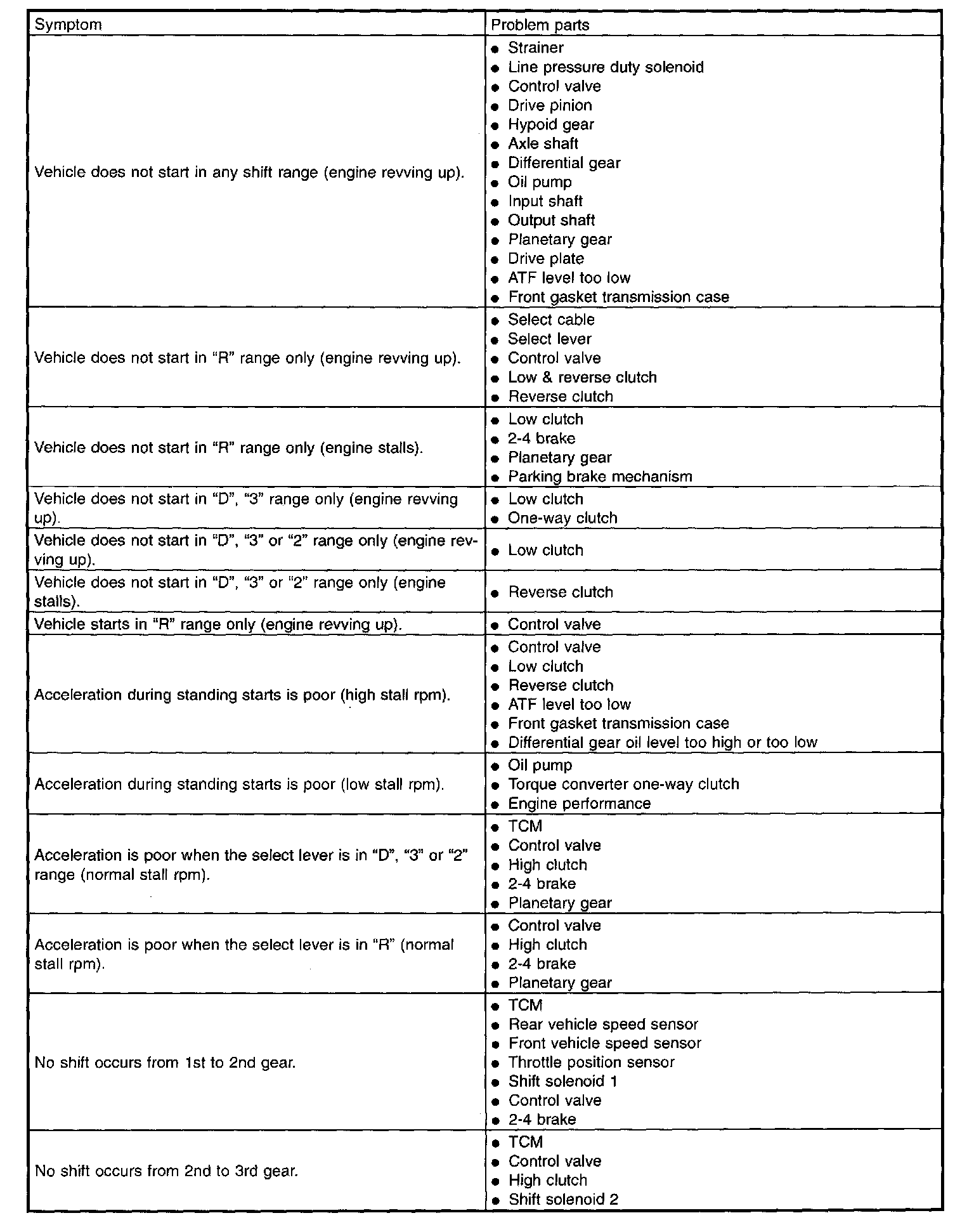

Symptoms part 5 of 5
