Read Diagnostic Trouble Code (DTC)

Read Diagnostic Trouble Code (DTC)

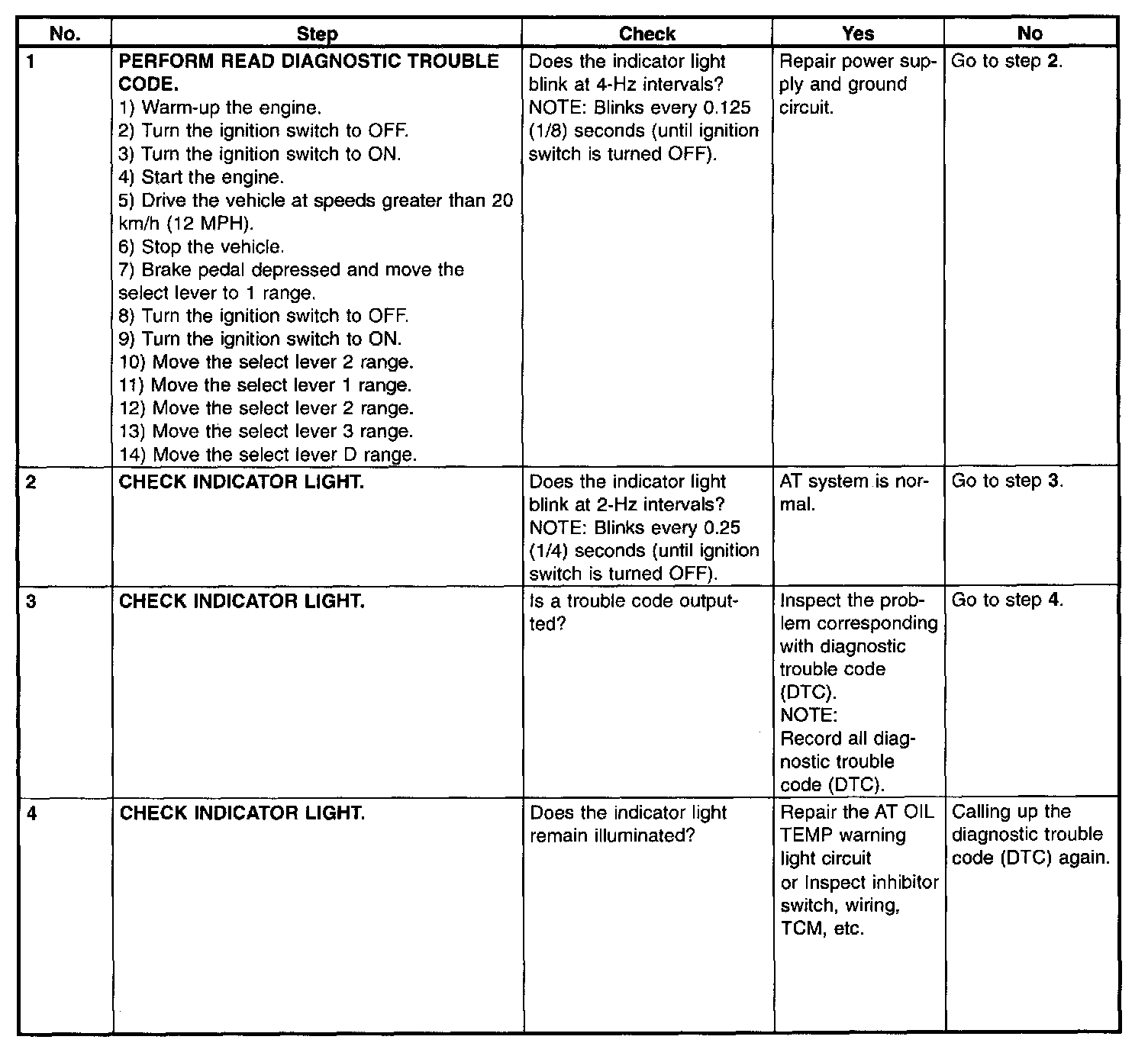

OPERATION





1. WITHOUT SUBARU SELECT MONITOR

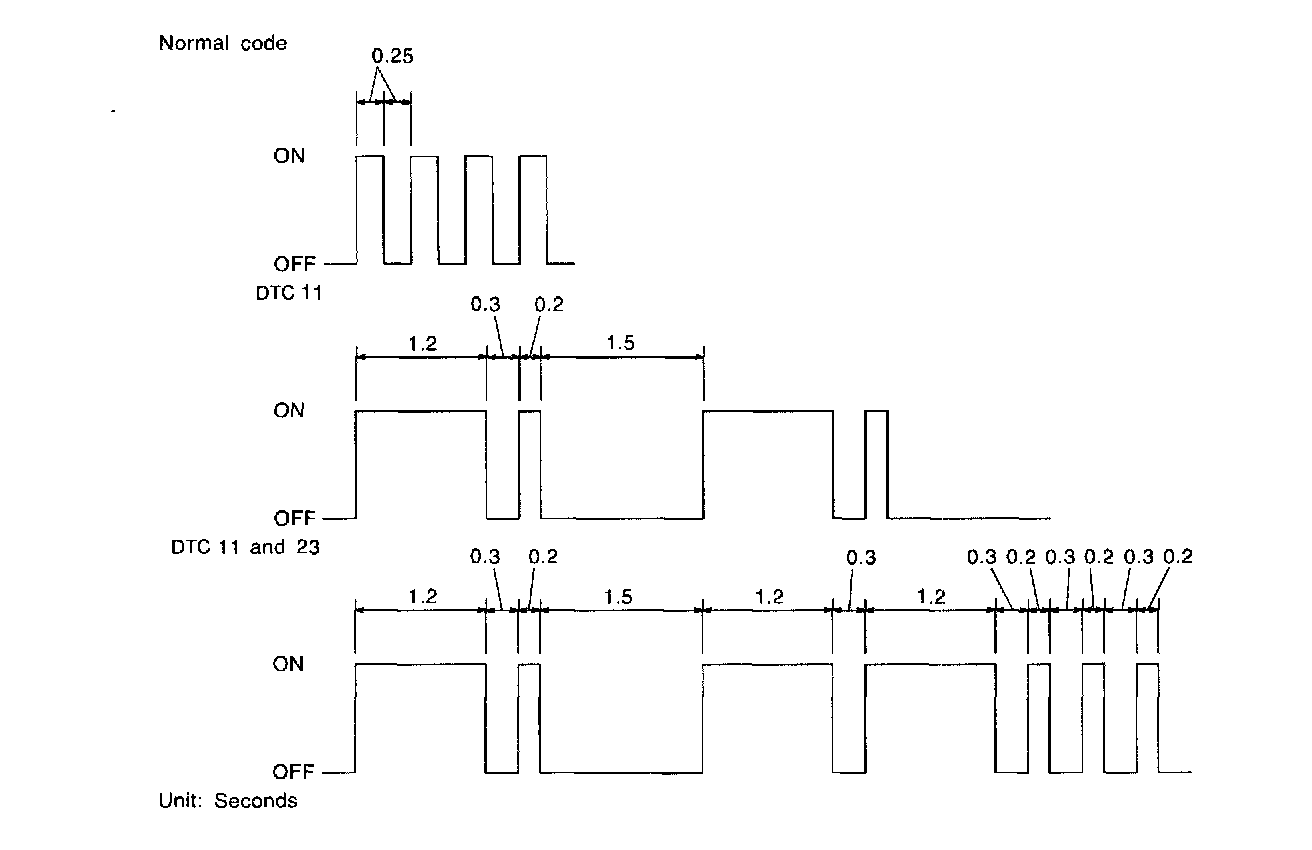

The "AT OIL TEMP" warning light flashes the code corresponding to the faulty part. The long segment (1.2 sec on) indicates a "ten", and the short segment (0.2 sec on) signifies a "one".

2. WITH SUBARU SELECT MONITOR
Refer to SUBARU SELECT MONITOR for information about how to obtain and understand trouble codes.
