Diagnostic Procedure For Select Monitor Communication

Diagnostic Procedure for Select Monitor Communication
COMMUNICATION FOR INITIALIZING IMPOSSIBLE
DIAGNOSIS:
^ Faulty harness connector
TROUBLE SYMPTOM:
^ Select the monitor communication failure

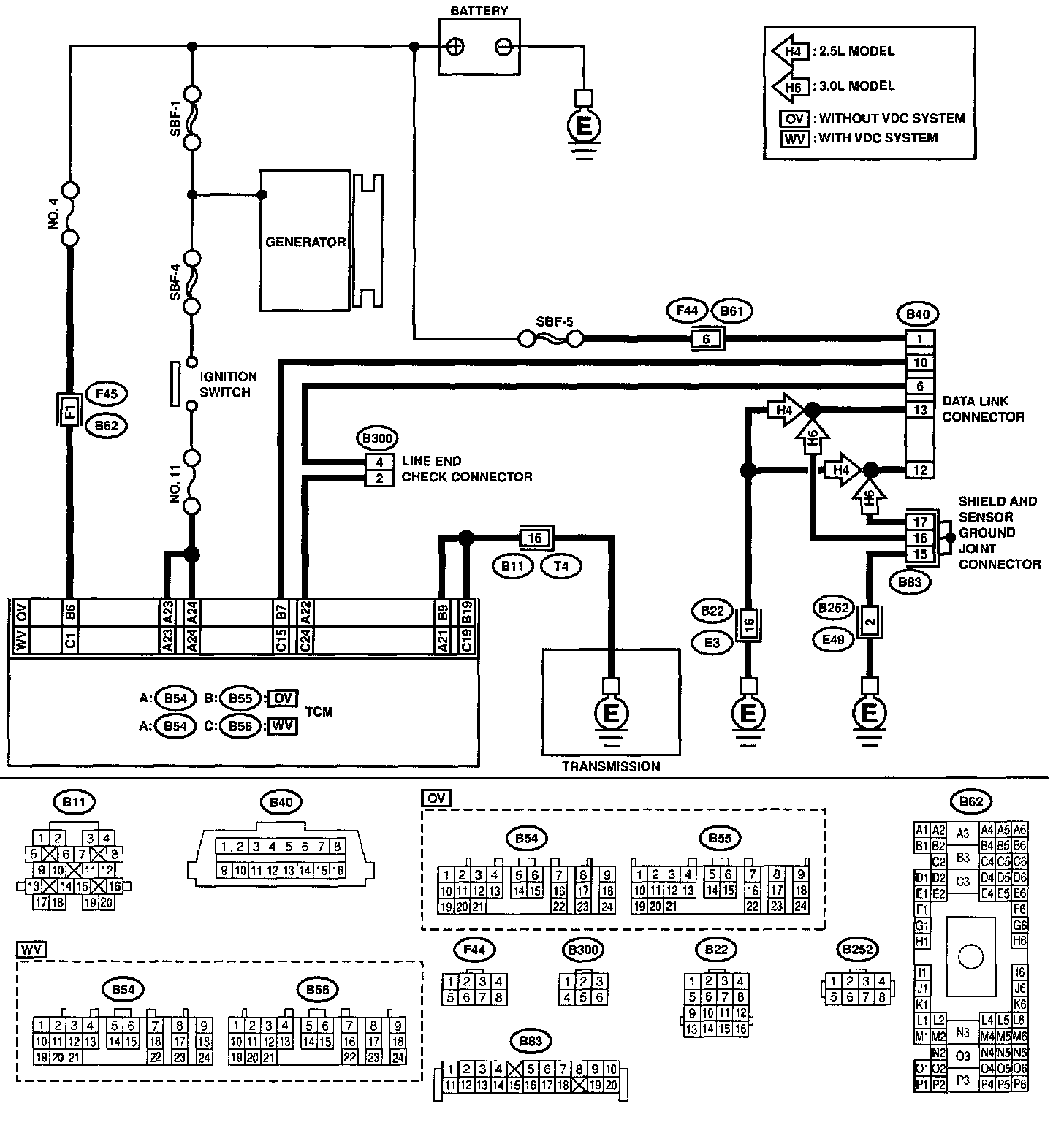

WIRING DIAGRAM:
