Check FWD Switch.
CHECK FWD SWITCH.DIAGNOSIS:
^ LED does not come on even if FWD switch is ON.
^ FWD switch circuit is open or shorted.

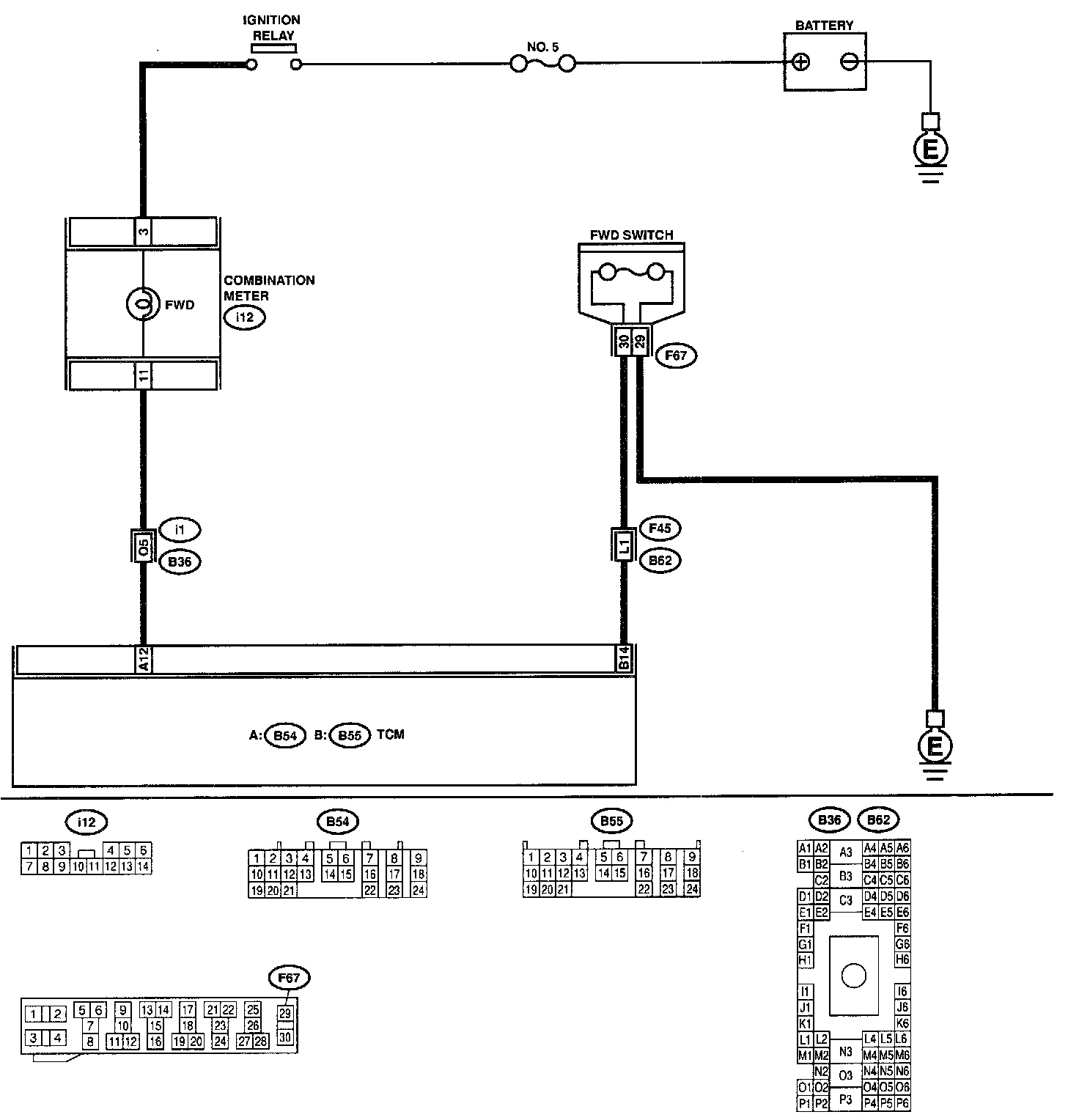

WIRING DIAGRAM:

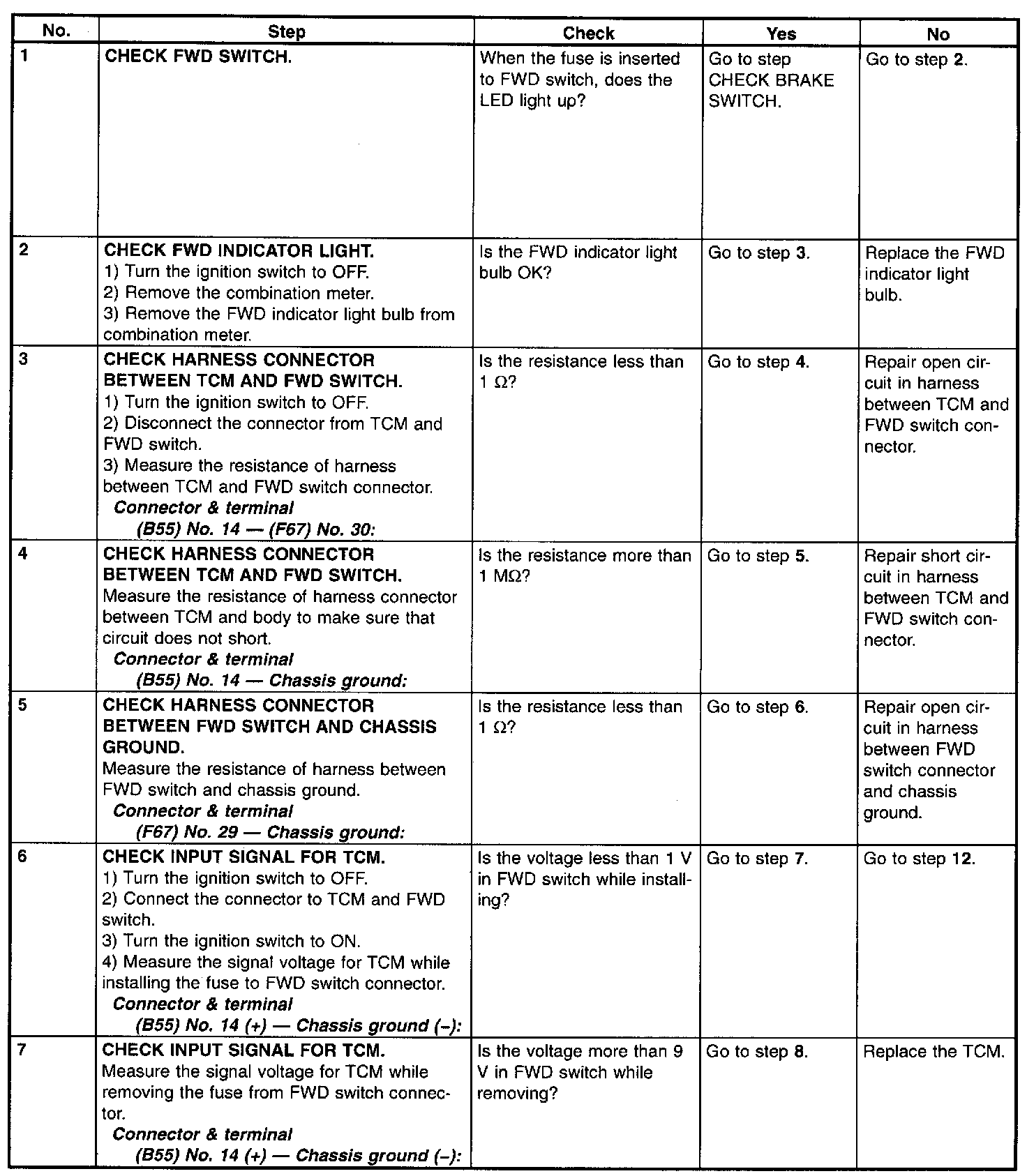

Test Step 1 through 7

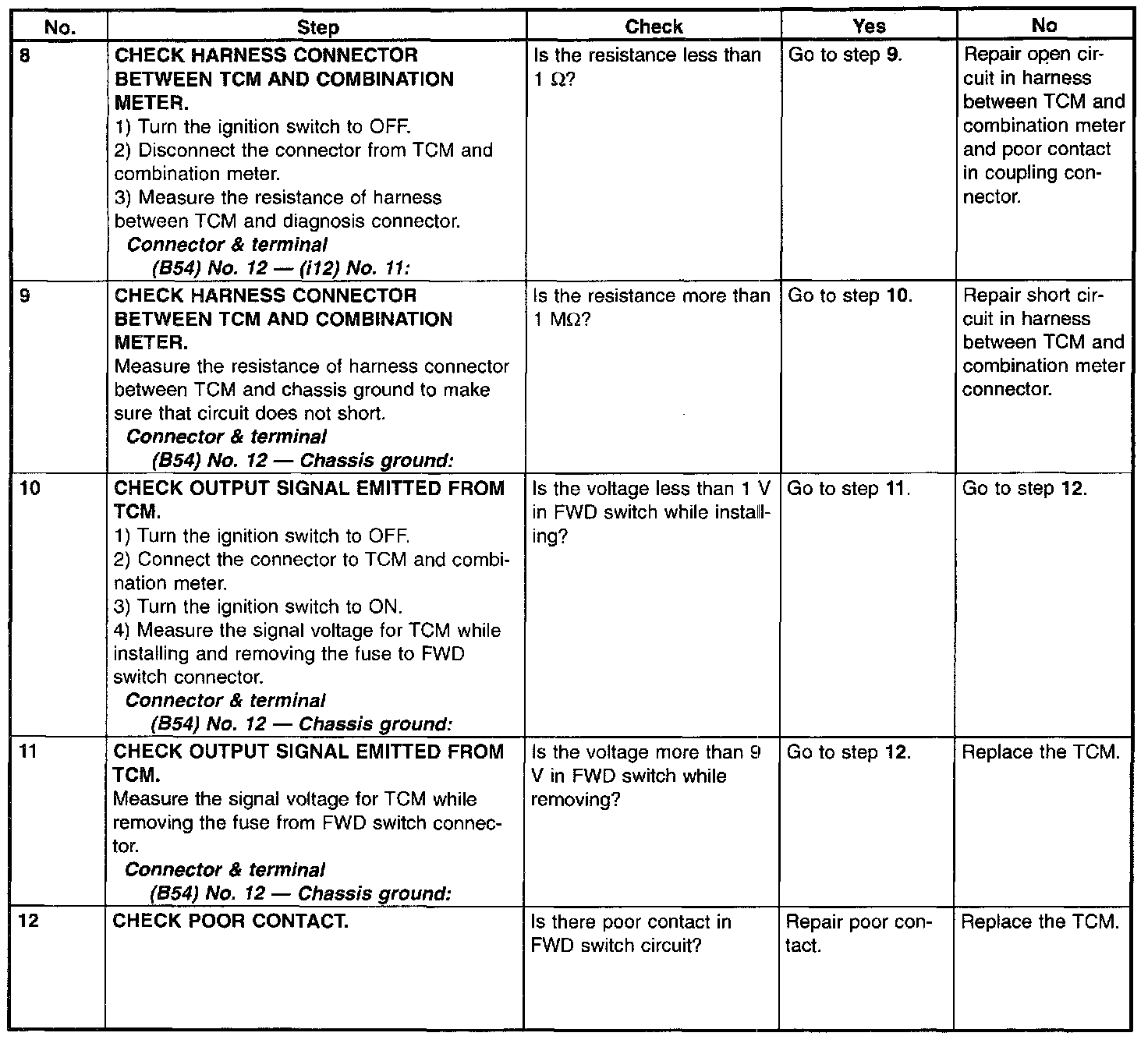

Test Step 8 through 12
DIAGNOSIS:
^ LED does not come on even if FWD switch is ON.
^ FWD switch circuit is open or shorted.
WIRING DIAGRAM:
Test Step 1 through 7
Test Step 8 through 12
