Diagnostic Procedure For "A/T Oil Temp" Warning Light

"AT OIL TEMP" WARNING LIGHT DOES NOT COME ON OR GO OFF

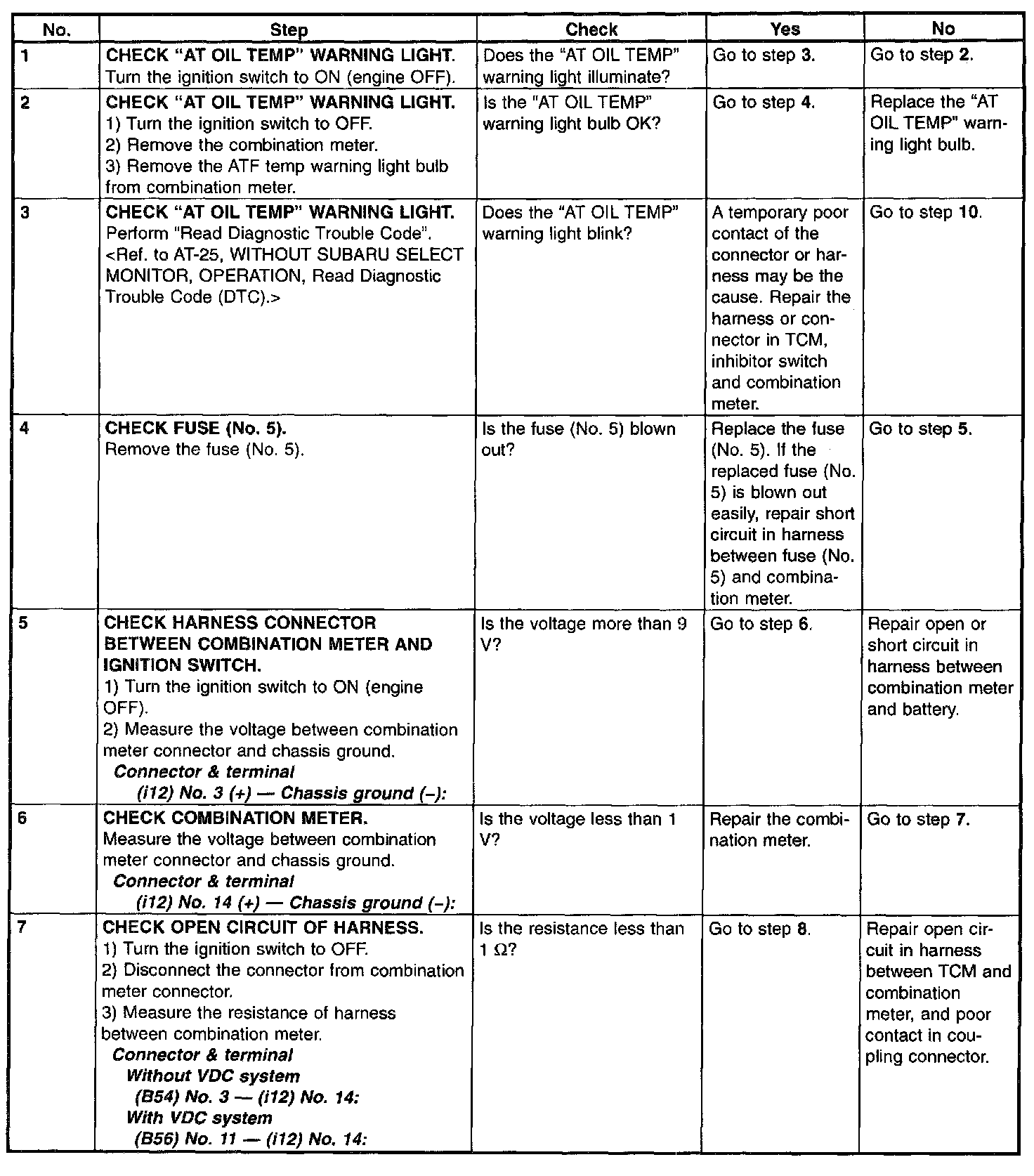

DIAGNOSIS:
The "AT OIL TEMP" warning light circuit is open or shorted.
TROUBLE SYMPTOM:

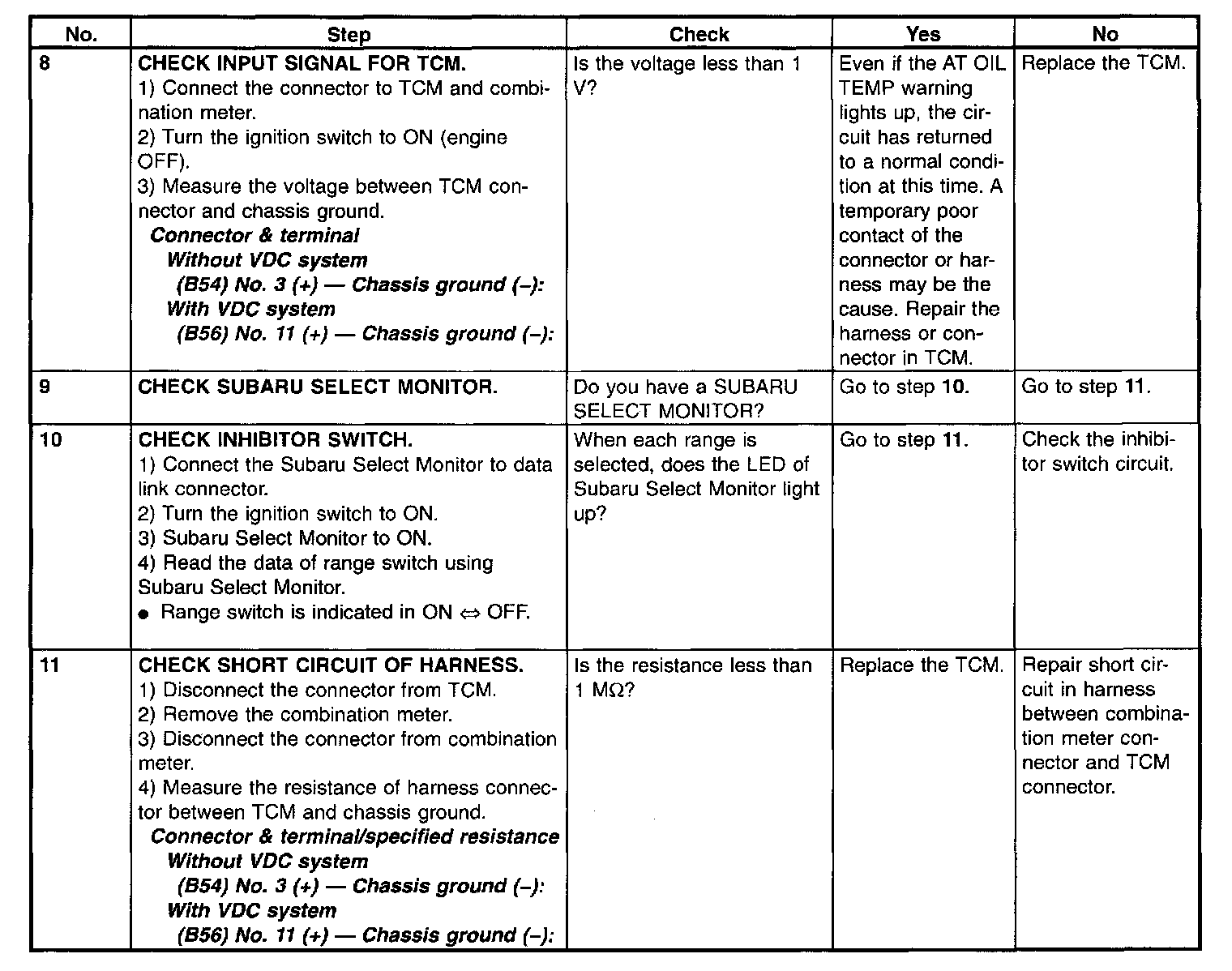

^ When the ignition switch is turned to ON (engine OFF), "AT OIL TEMP" warning light does not illuminate.
^ When the on-board diagnostics is performed, "AT OIL TEMP" warning light remains illuminated.

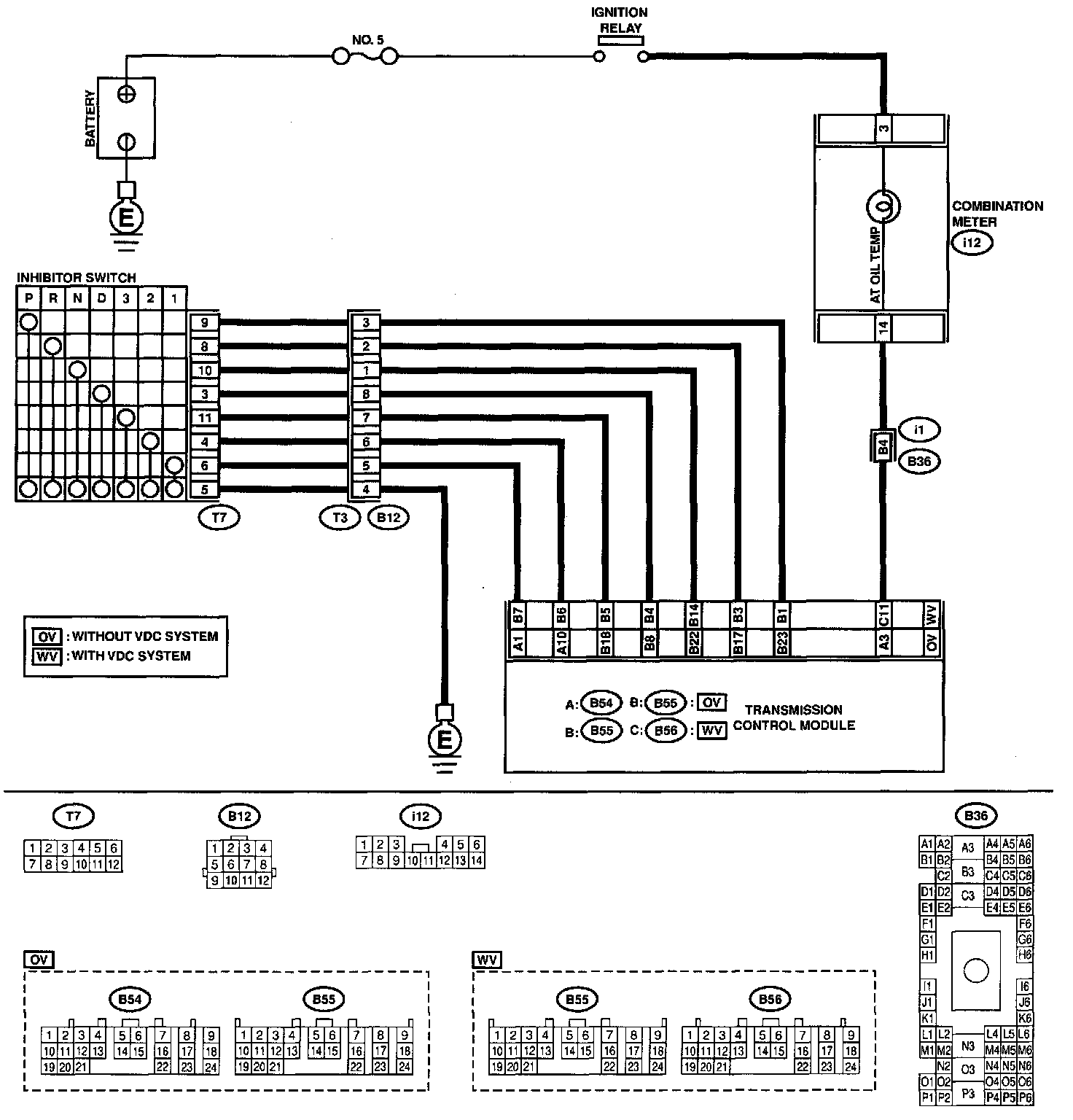

WIRING DIAGRAM:

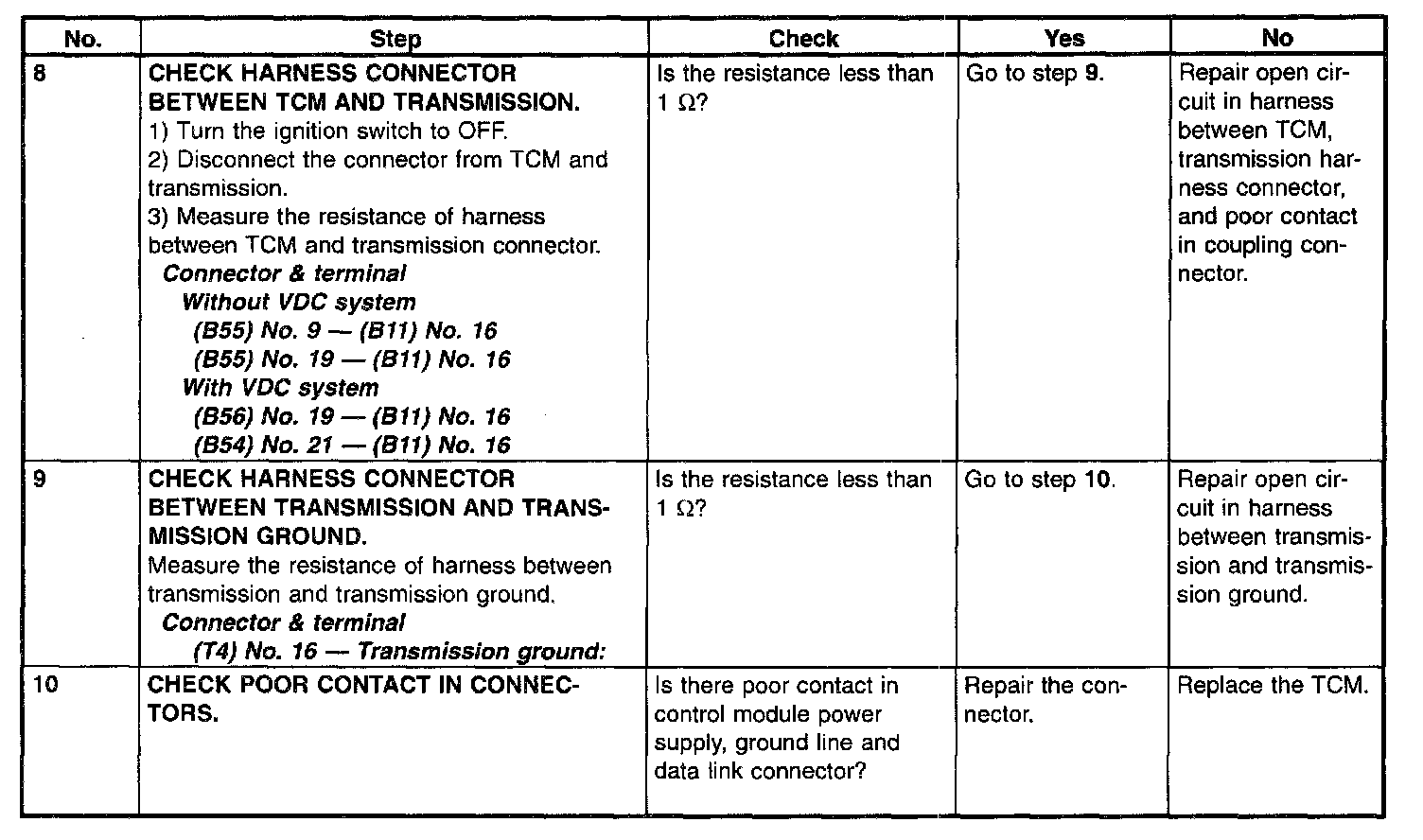

CHECK POWER SUPPLY AND GROUND LINE

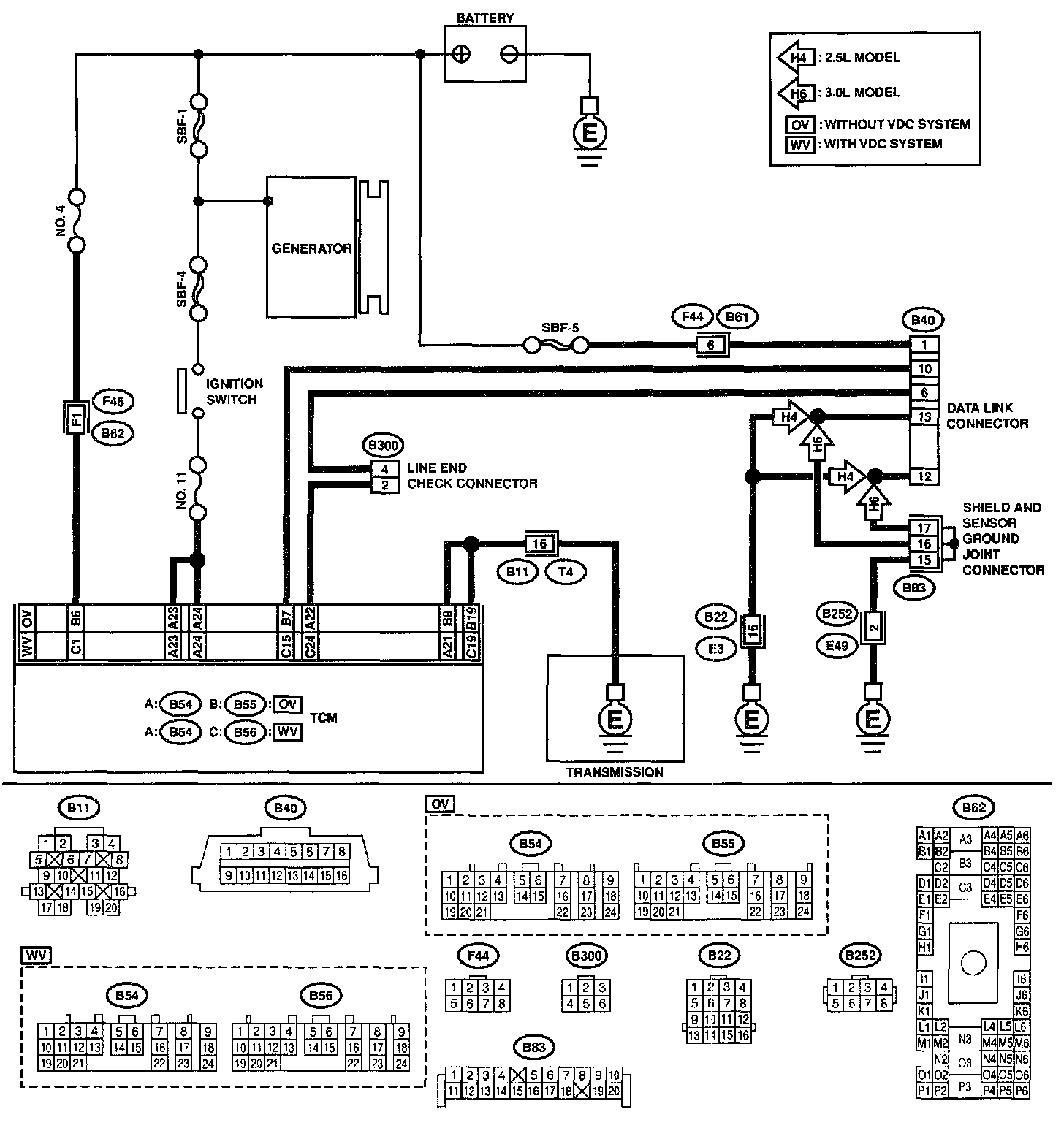

WIRING DIAGRAM:
