A/T Technical Data
>>
5-SPD M/T & 4 SPD A/T
>>
Service
Service

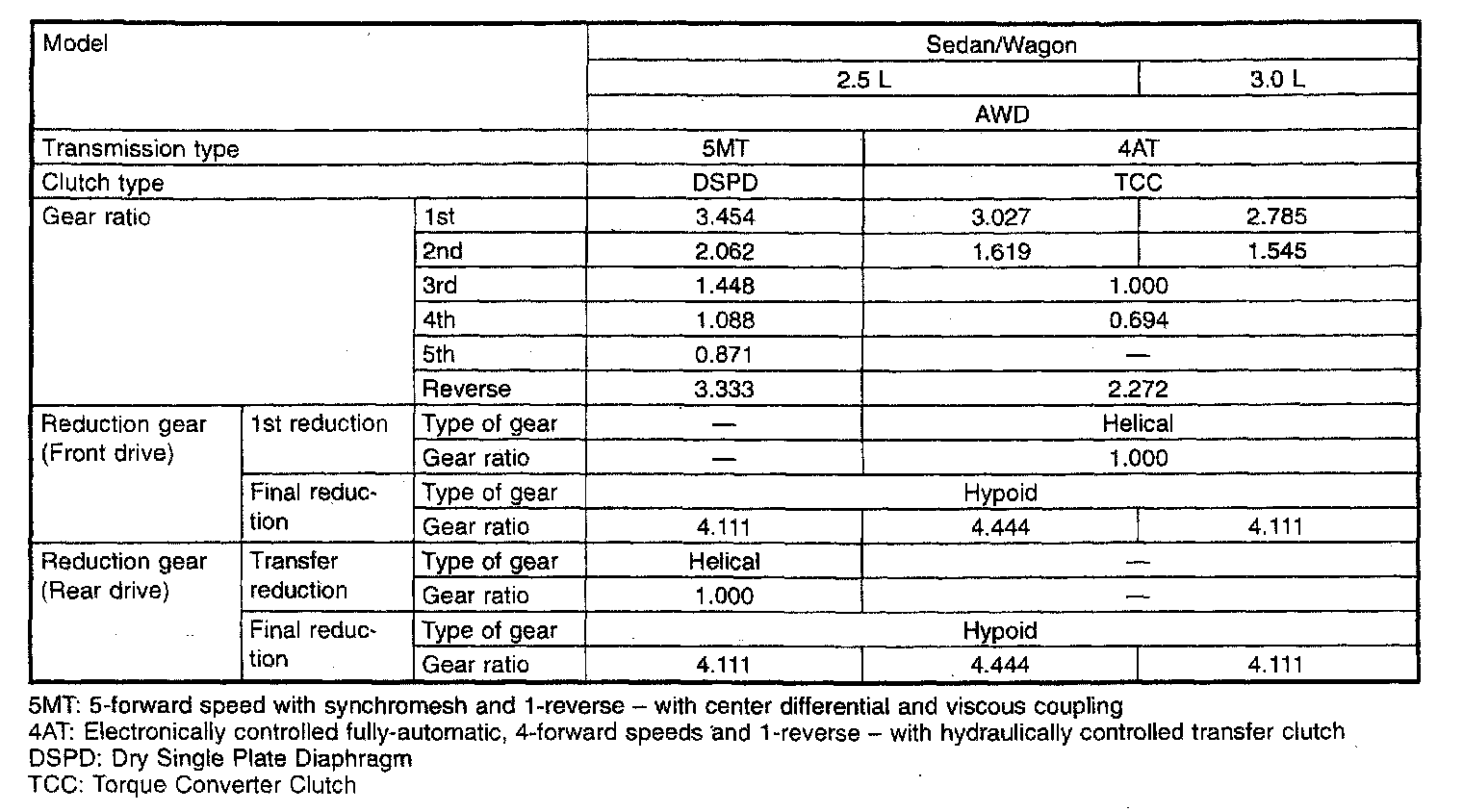

5-spd M/T/4-spd A/T, Transmission/Reduction Gear Ratios:
