Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Specifications

Shift Interlock: Specifications

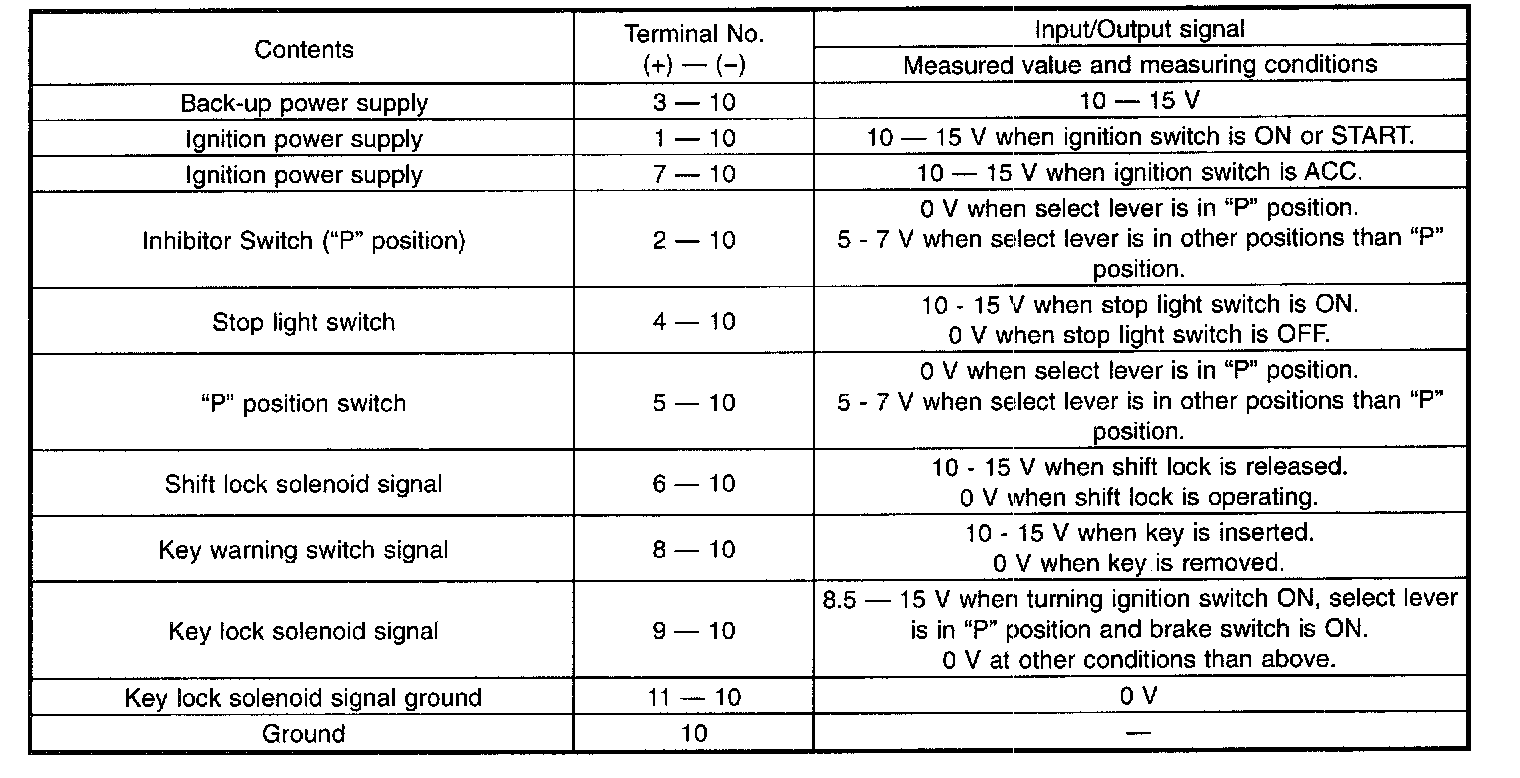

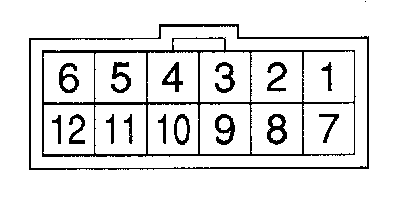

Electrical Specifications Part 1 of 2





Electrical Specifications Part 2 of 2
