Automatic Transmission/Transaxle: Locations

LOCATION

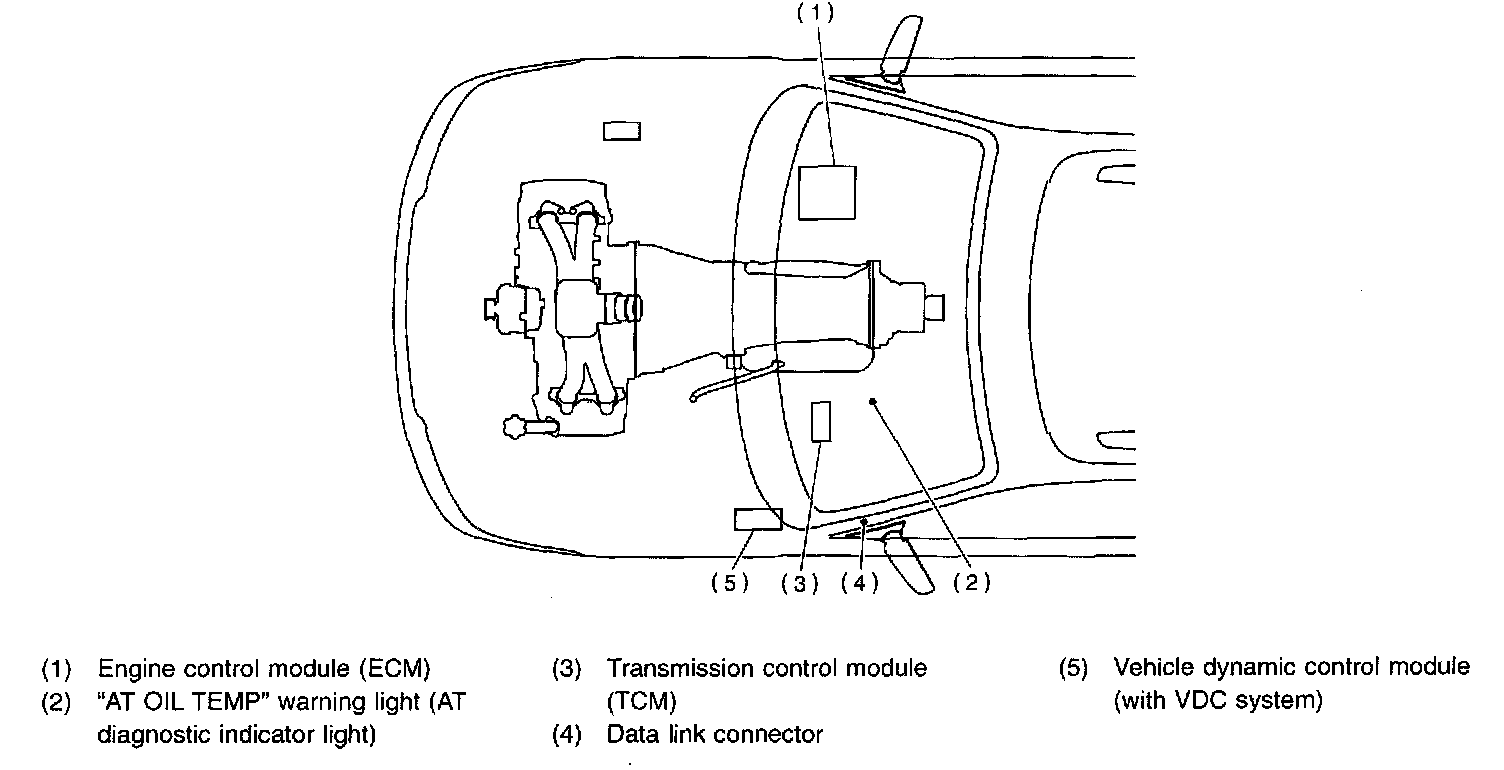

CONTROL MODULE Part 1 of 2

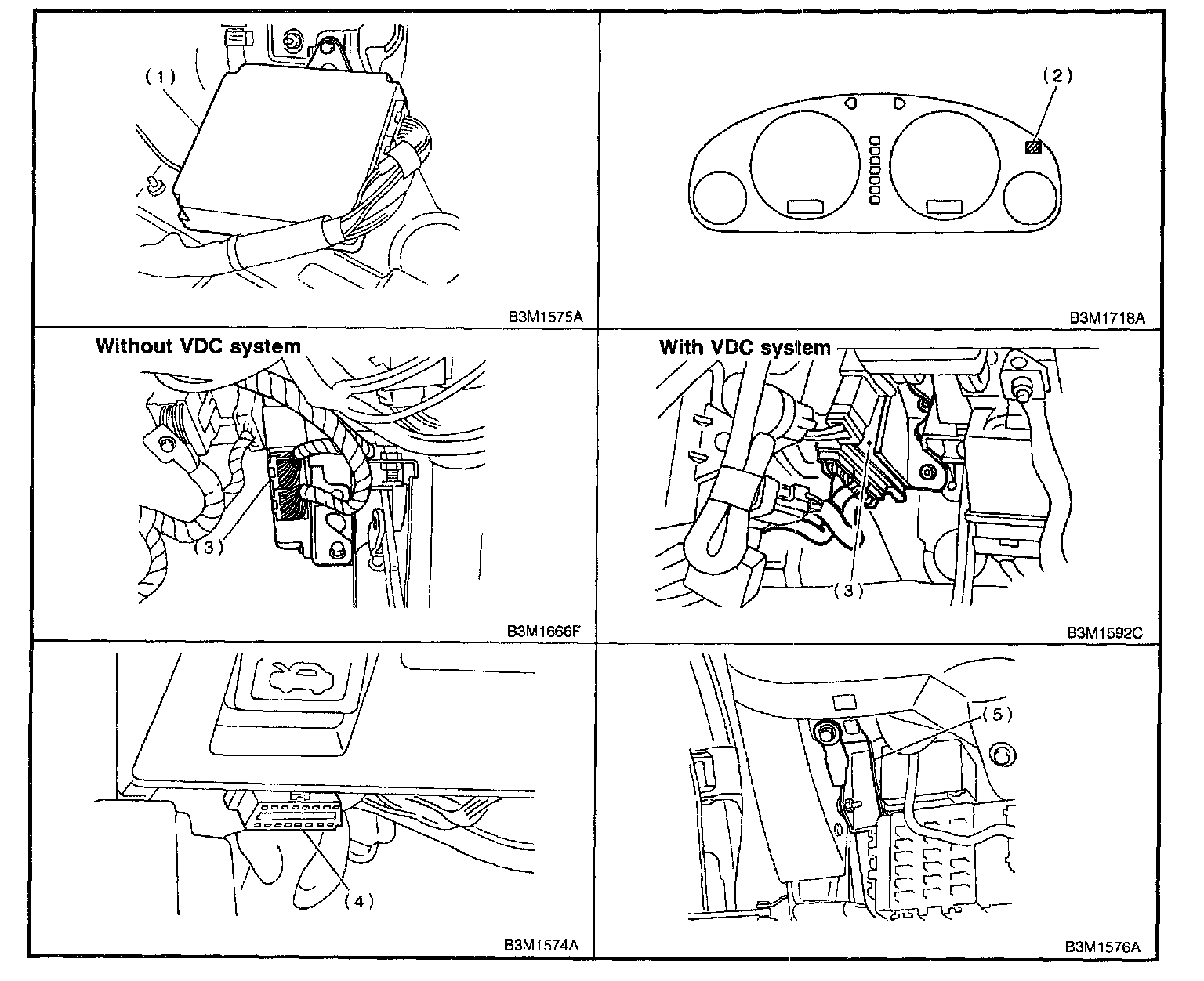

CONTROL MODULE Part 2 of 2

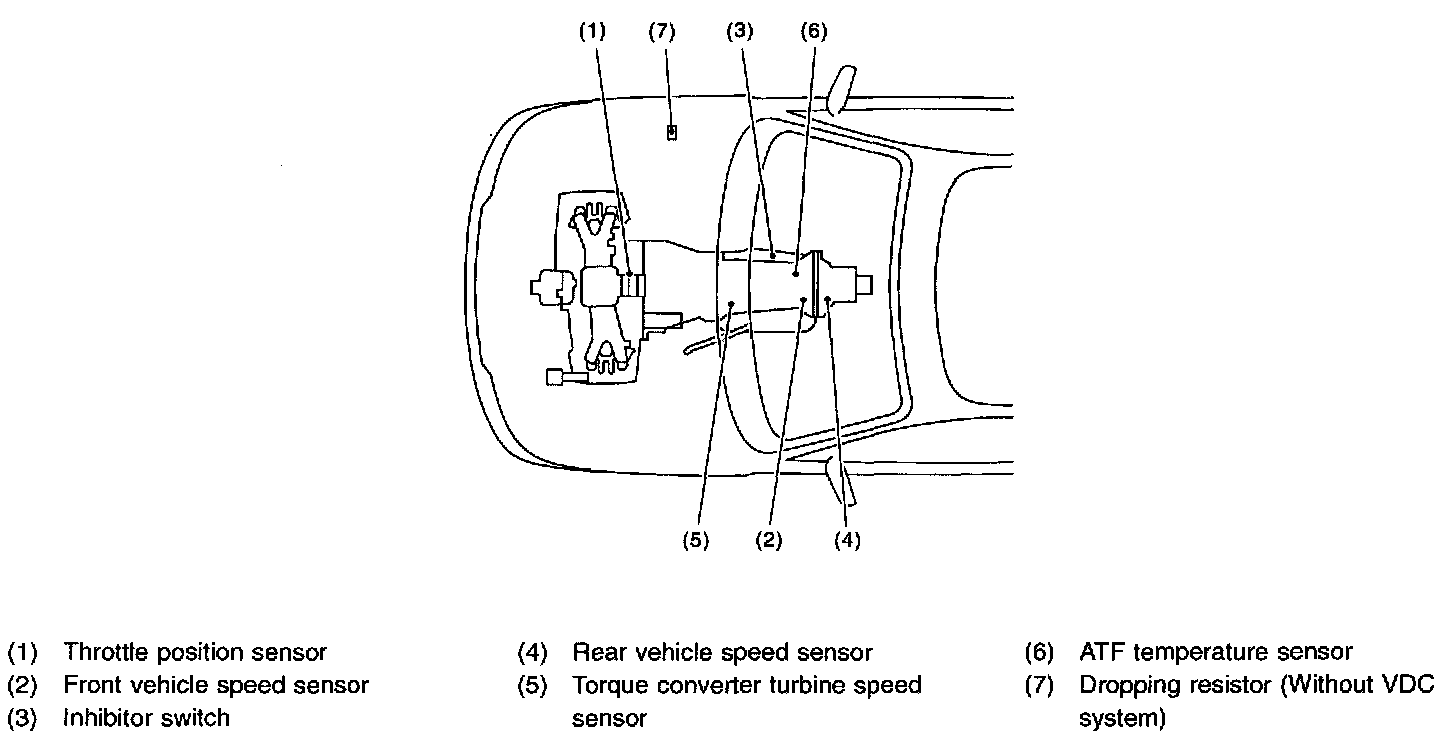

SENSOR Part 1 of 2

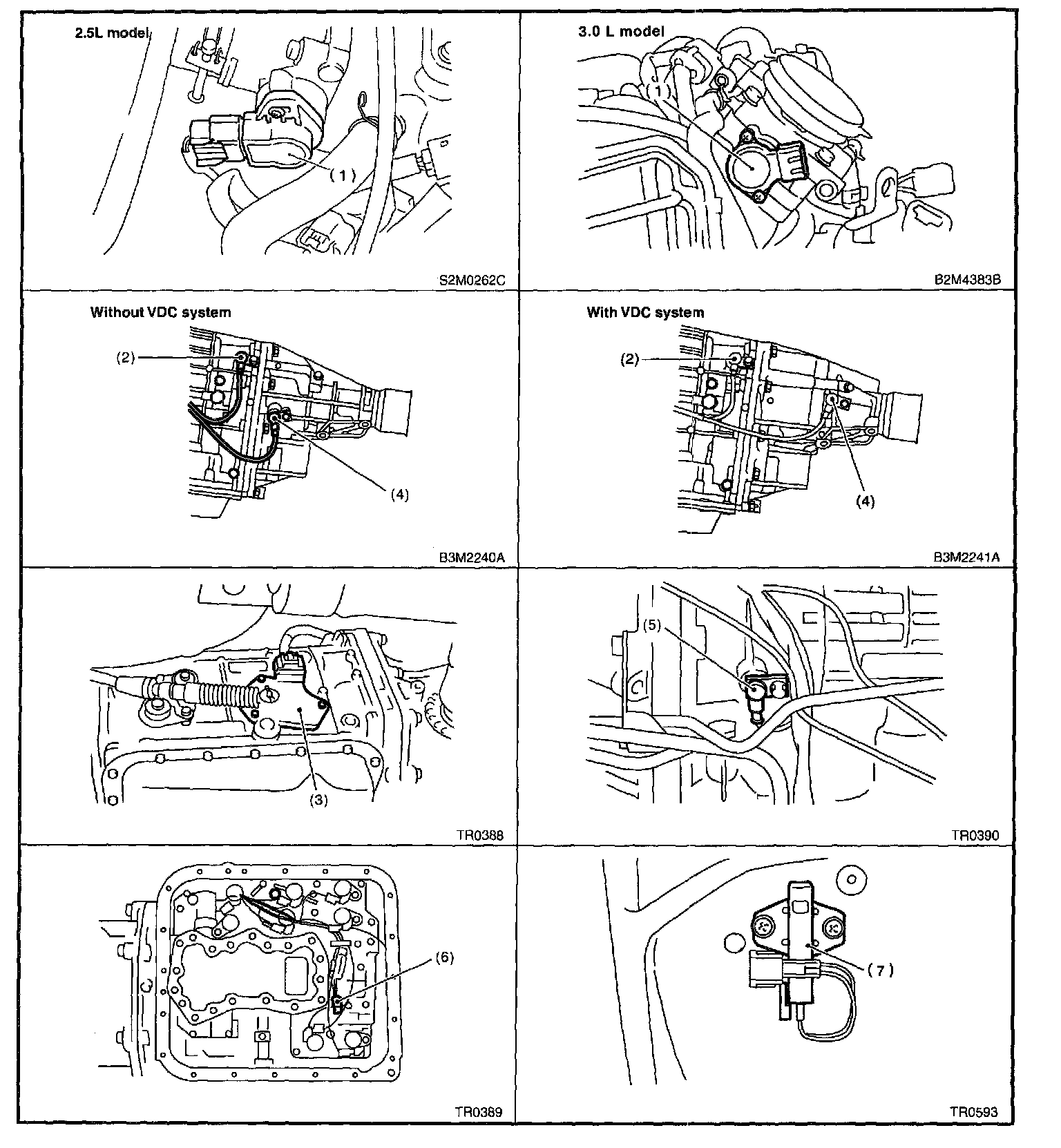

SENSOR Part 2 of 2

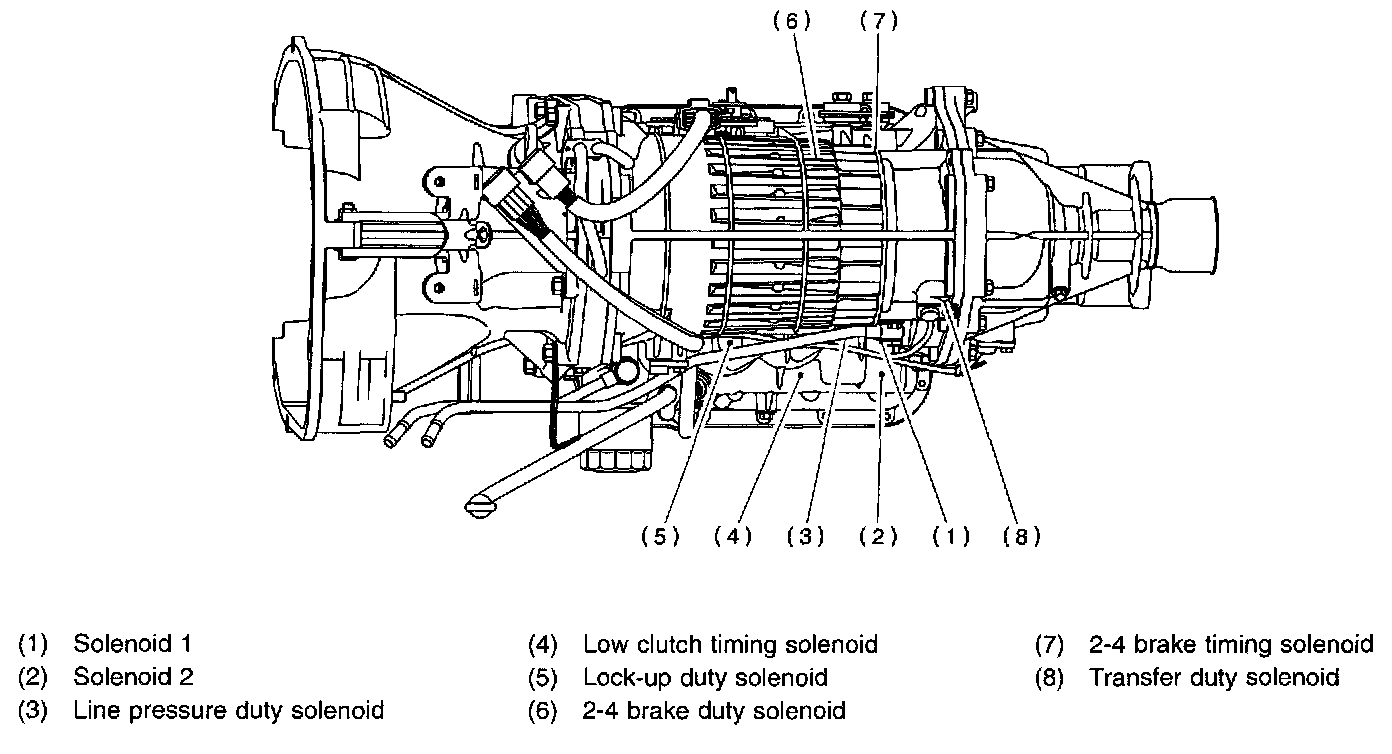

SOLENOID Part 1 of 2

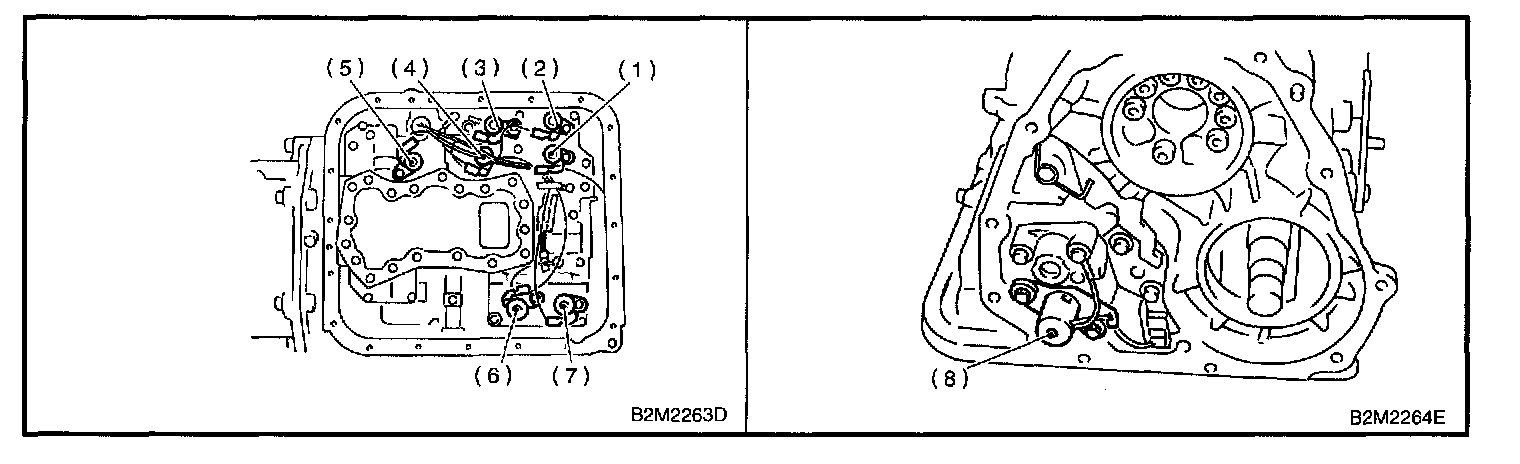

SOLENOID Part 2 of 2
