Dropping Resistor: Service and Repair

REMOVAL,

NOTE: Model without VDC system only





1. Disconnect battery ground cable.
2. Remove air intake duct.
3. Disconnect connector from dropping resistor.

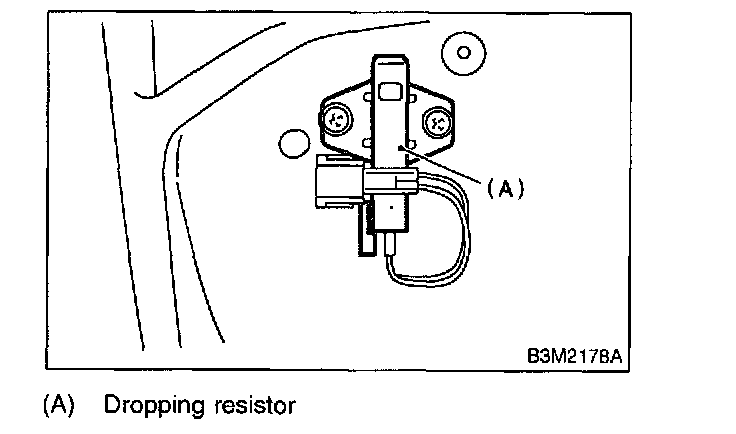

4. Remove dropping resistor.

INSTALLATION





1. Install in the reverse order of removal.
Tightening torque: 7.5 Nm (0.76 kgf-cm, 5.5 ft. lbs.)
