AWD System

5-spd M/T, Transmission Service/Overhaul Data:





5-spd M/T, Transmision Service/Overhaul Data:

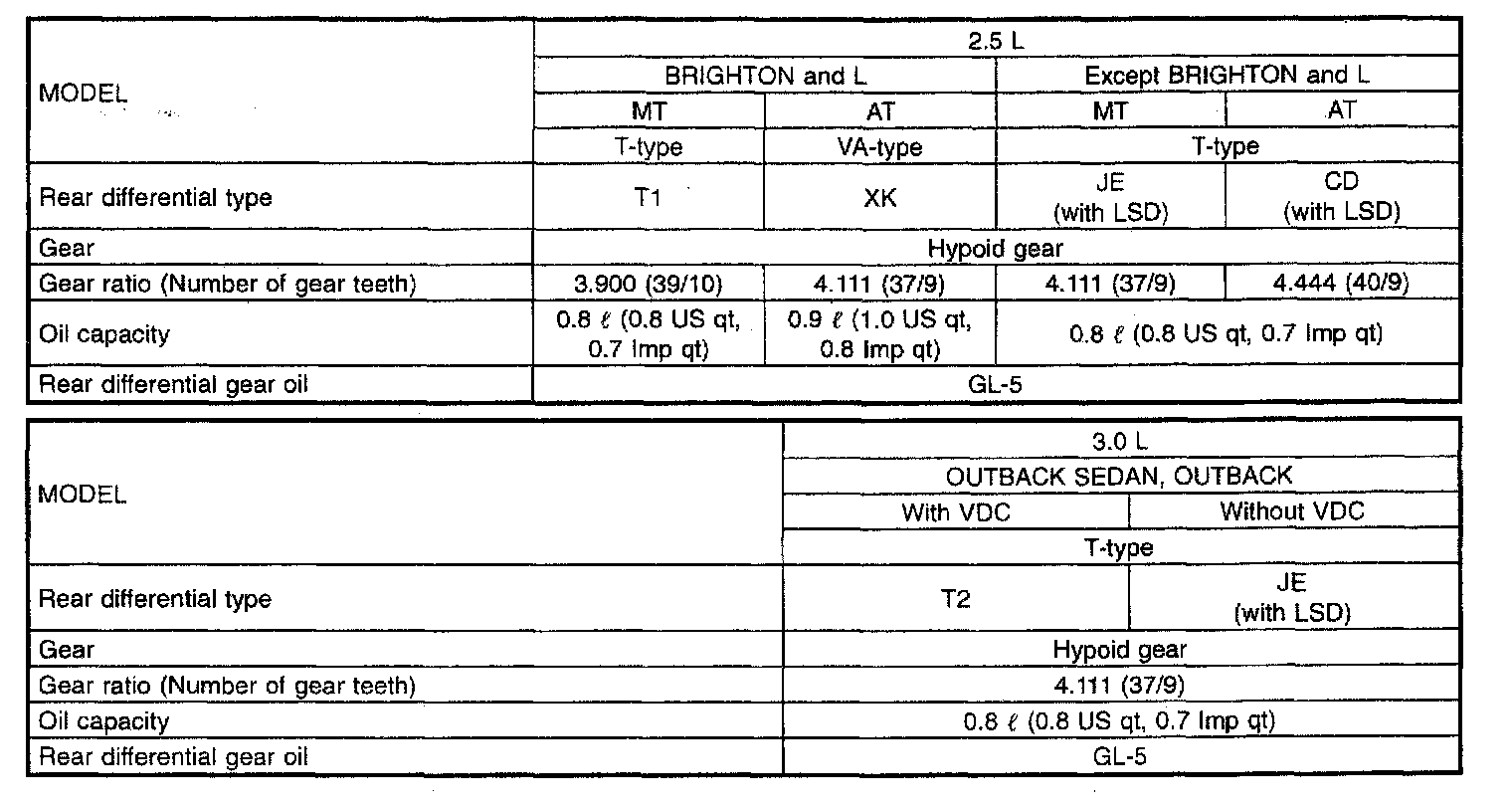

Rear Differential Service Data:





Front & Rear Differential Service Data:
