Clutch Switch: Testing and Inspection




INSPECTION

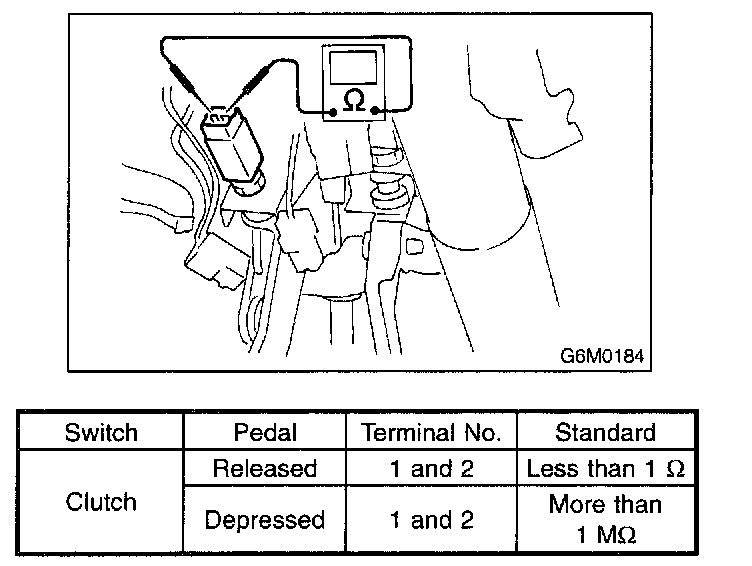

Measure clutch switch resistance.
If NG, replace the clutch switch.
