Outer Belt Center

OUTER BELT CENTER (WAGON BODY)
REMOVAL

CAUTION: When removing clip, use great care not to damage the roof trim.

1. Remove luggage room light.

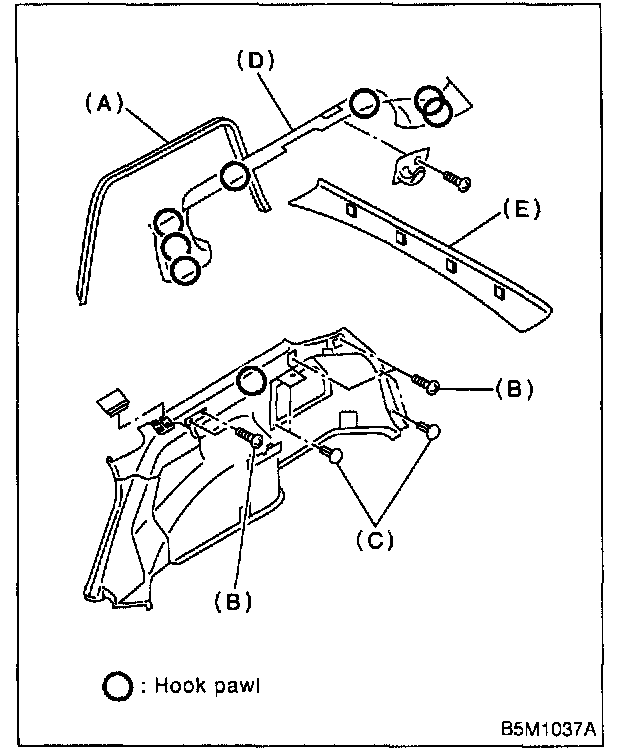

2. Remove rear mole (A) of right side.
3. Remove screws (B) and clips (C) of rear quarter lower trim shown in the figure.
4. Remove rear quarter upper trim (D) of right side.






5. Remove rear rail trim (E).

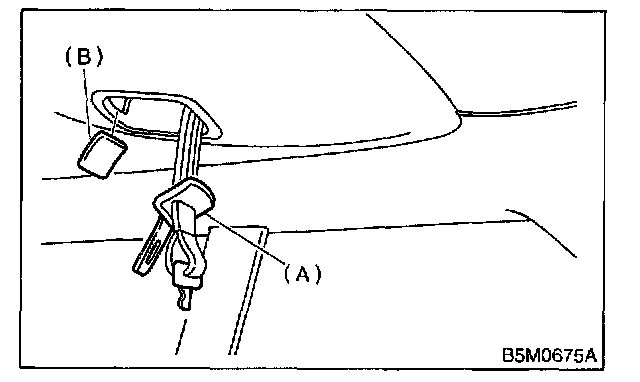

6. Remove cover (B) while detaching snap lock carefully. Put the outer belt center tongue (A) out to the other side of the trim through the hole.
7. Remove clips and hang down rear end of roof trim.

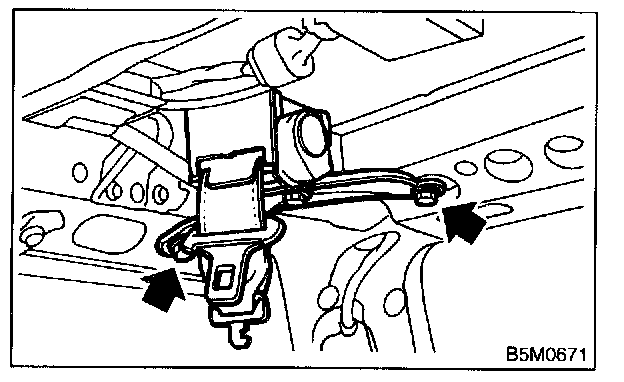

8. Disconnect harness and connector, and then remove outer belt center assembly.

INSTALLATION
Install in the reverse order of removal.

CAUTION: During installation, make sure that seat belts are not twisted.
After installation, make sure that seat belts can be smoothly extended and wound.
