Airbag Main Harness to Body Harness Connector

AIRBAG MAIN HARNESS TO BODY HARNESS CONNECTOR

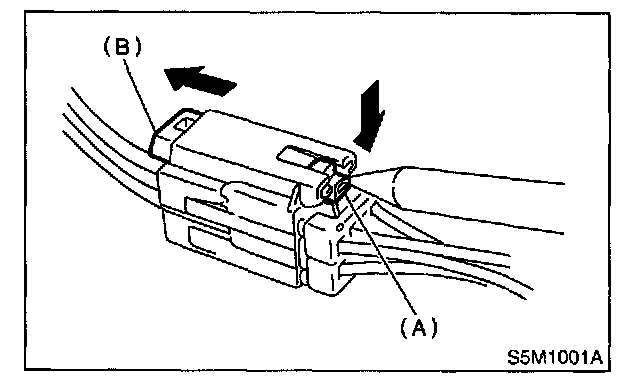

How to disconnect:




1. Push lock arm (A) to let green lever (B) pop out.
2. Then separate the connector halves by pulling them apart while pressing lever (A).






CAUTION: When pulling, be sure to hold onto the connector and not the wire.

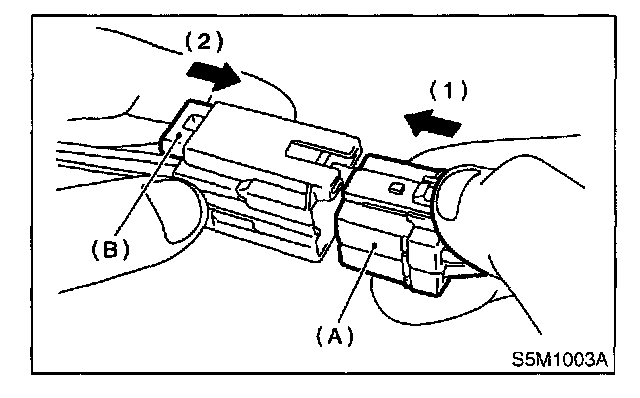

How to connect:
1. Insert the (A) connector half into the other until a "click" is heard.
2. Push in green lever (B) until a "click" is heard. This engages the double lock mechanism.






CAUTION: Be sure to insert the connector in until it locks. Then pull on it gently to make sure that it is locked.
