Fog/Driving Lamp Relay: Testing and Inspection

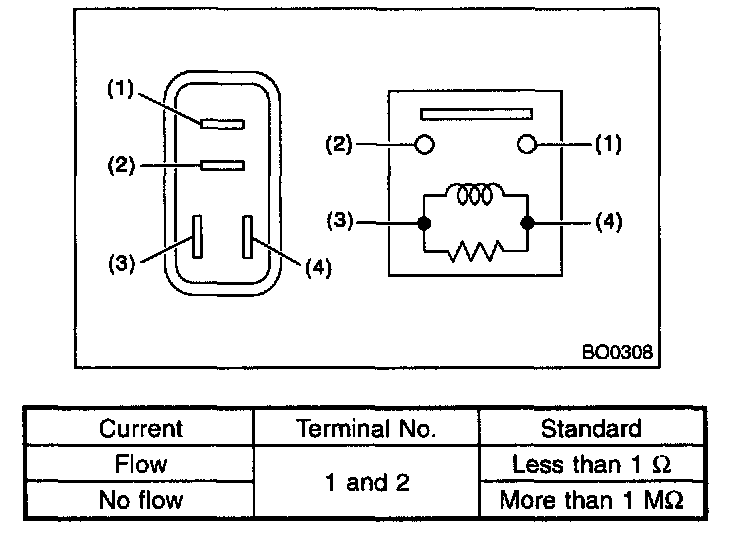

FRONT FOG LIGHT RELAY
Measure front fog light relay resistance between terminals while connecting terminal No.4 to battery positive terminal and terminal No.3 to battery ground terminal.
FRONT FOG LIGHT RELAY
Measure front fog light relay resistance between terminals while connecting terminal No.4 to battery positive terminal and terminal No.3 to battery ground terminal.
