Gear Sensor/Switch: Service and Repair

Switches and Harness
REMOVAL
1. Disconnect battery ground cable.
2. Remove air intake duct and cleaner case.

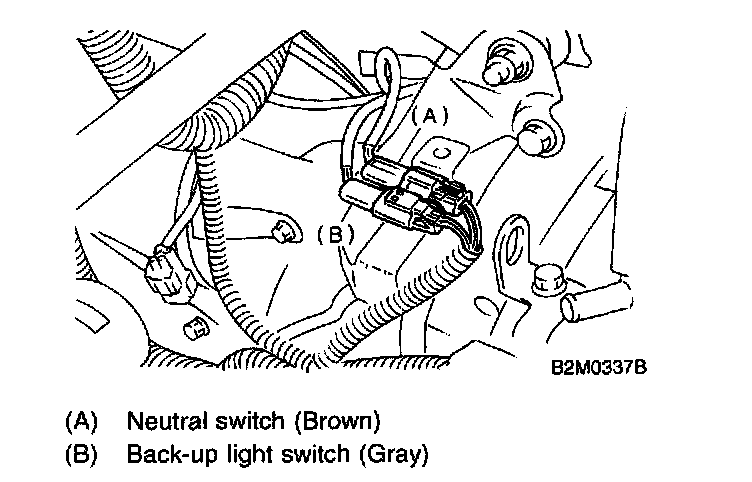

3. Disconnect connector back-up light switch and neutral position switch.
4. Lift-up the vehicle.





5. Remove back-up light switch and neutral position switch with harness.

INSTALLATION





1. Install back-up light switch and neutral position switch with harness.
Tightening torque: 24.5 Nm (2.5 kgf-cm, 18.1 ft. lbs.)
2. Connect connector of back-up light switch and neutral position switch.
3. Install air cleaner case.
4. Connect battery ground cable.
