Disassembly and Assembly

Fuel Filler Pipe:

DISASSEMBLY

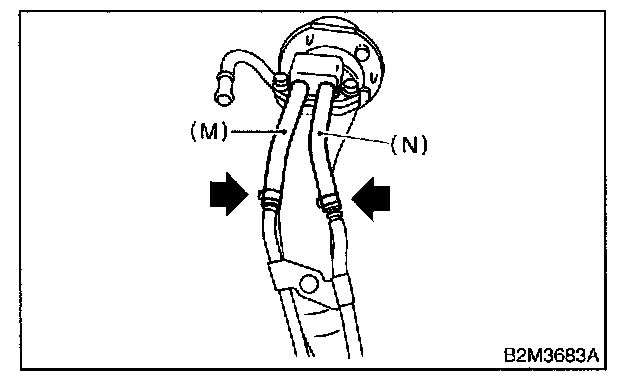

1. Disconnect evaporation hose (M) and (N) from evaporation pipe assembly.

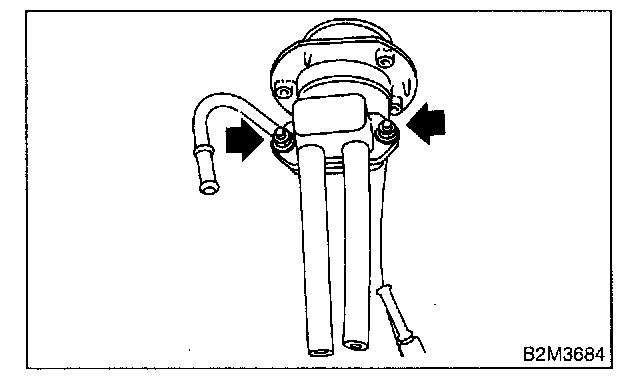

2. Remove shut valve from fuel filler pipe.

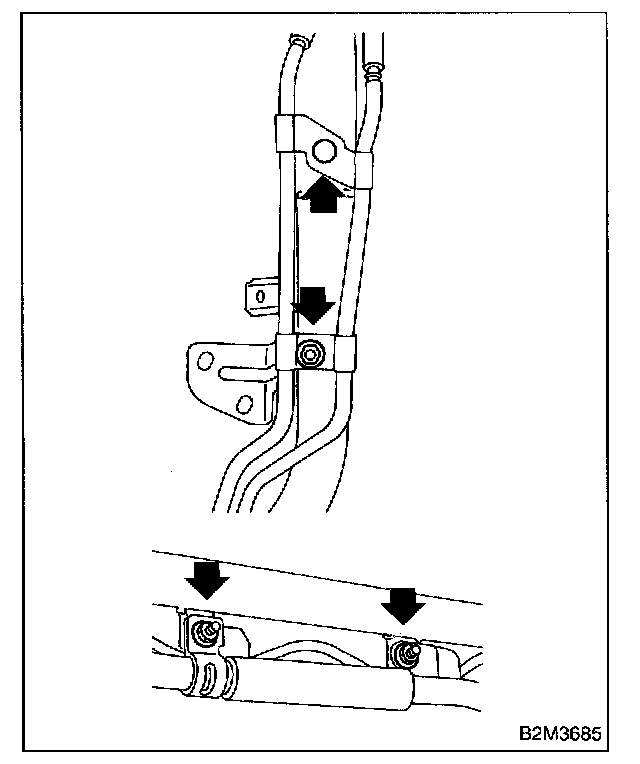

3. Remove nut which holds evaporation pipe assembly on fuel filler pipe.

ASSEMBLY
Assemble in the reverse order of disassembly.
