FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Subaru
>>
2002
>>
Outback L.L.Bean Edition AWD F6-3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Exploded Views
>>
Fuel Lines
Fuel Lines

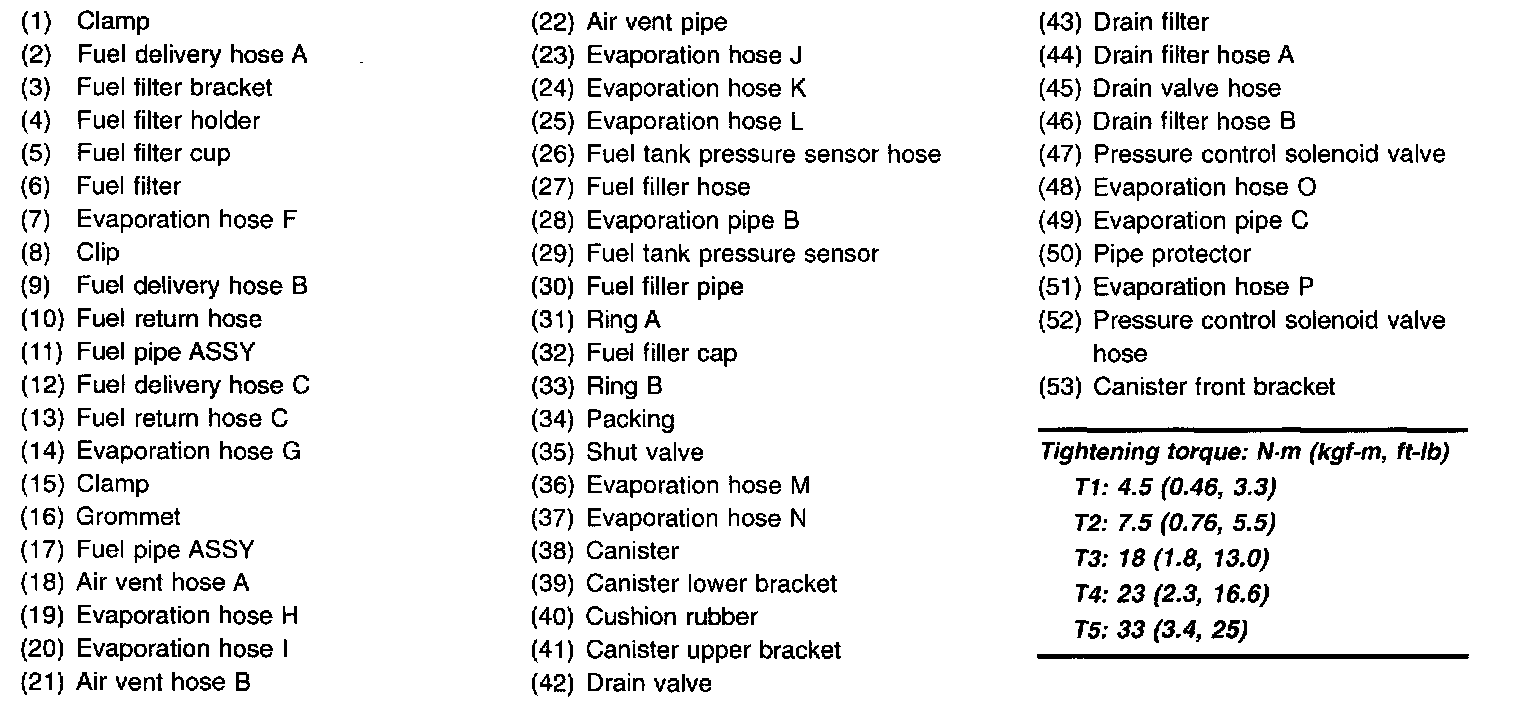

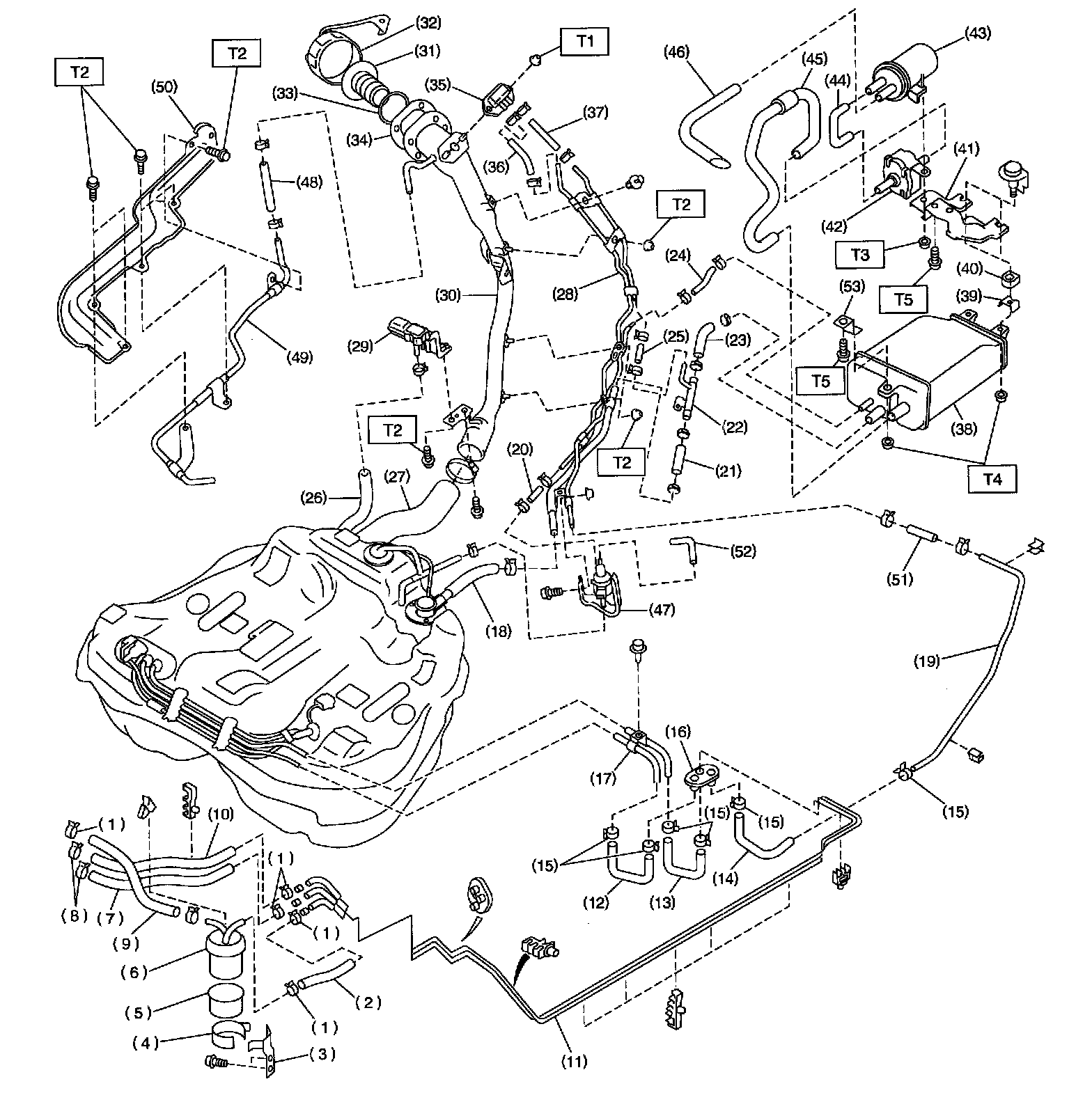

Fuel Line Part 1:
Fuel Line Part 2:
