Accelerator Pedal: Testing and Inspection

INSPECTION

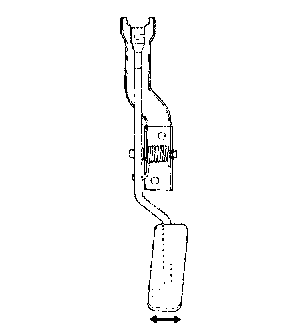

Lightly move pedal pad in the lateral direction to ensure pedal deflection is in specified range.

CAUTION: If excessive deflection is noted, replace bushing and clip with new ones.

Deflection of accelerator pedal:
Service limit 5.0 mm (0.197 inch) or less
