Accelerator Pedal: Adjustments

ADJUSTMENT

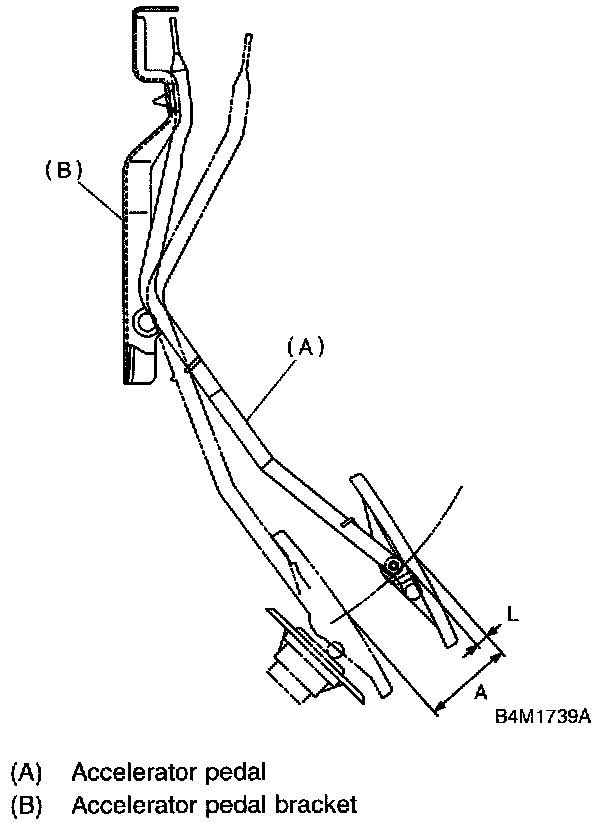

Check pedal stroke and free play by operating accelerator pedal by hand. If it is not within specified value, adjust it by turning nut connecting accelerator cable to throttle body.
Free play at pedal pad: L 1 - 4 mm (0.04 - 0.16 inch)
Stroke at pedal pad: A 50 - 55 mm (1.97 - 2.17 inch)
