Evaporative Emission Control Canister: Service and Repair

Canister

REMOVAL
1. Lift-up the vehicle.

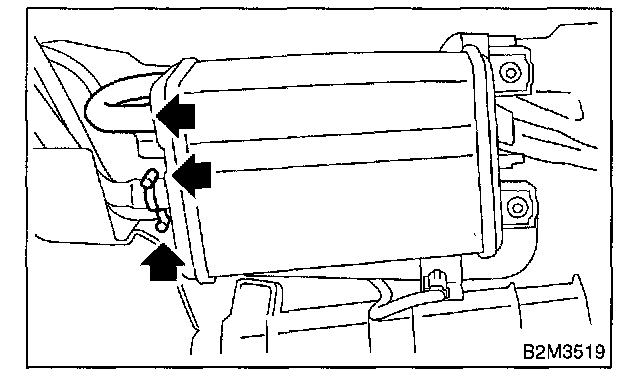

2. Loosen two clamps which hold two canister hoses, and disconnect evaporation three hoses from canister.

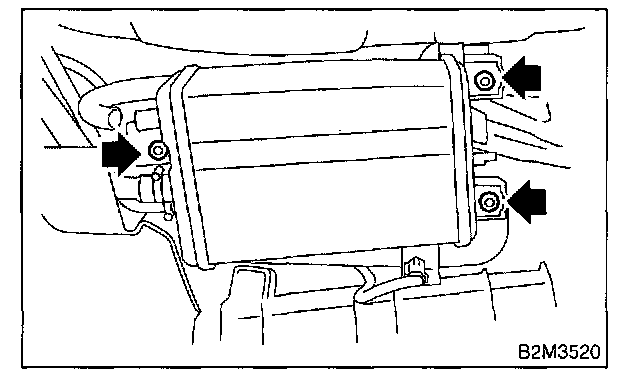

3. Remove canister from body.

INSTALLATION
Install in the reverse order of removal.

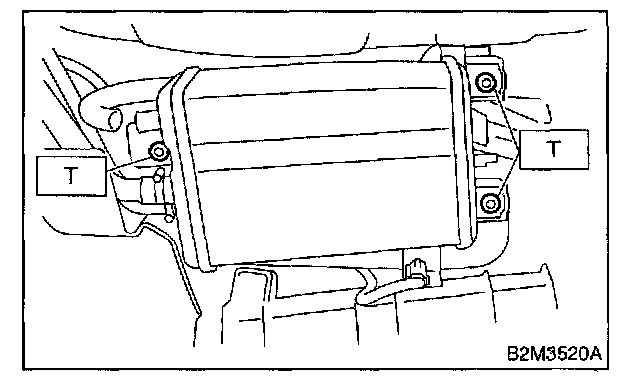

Tightening Torque: 23 Nm (2.3 kgf-m, 17 ft-lb)

INSPECTION
Make sure the canister and canister hoses are not cracked or loose.
