Fuel Pump Circuit
FUEL PUMP CIRCUITCAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
Wiring Diagram:
WIRING DIAGRAM

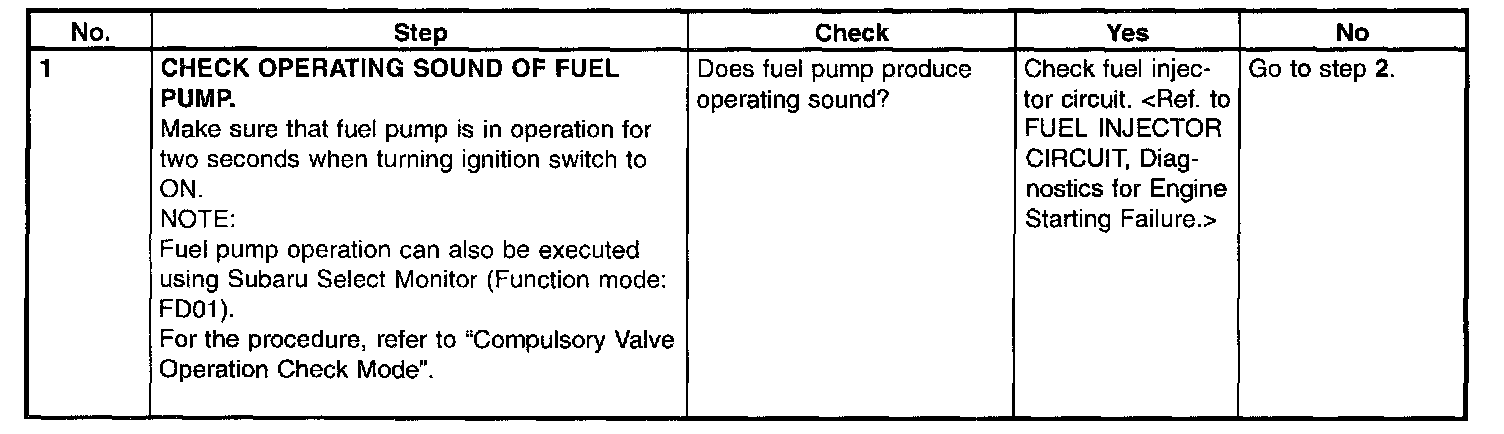

Step 1:

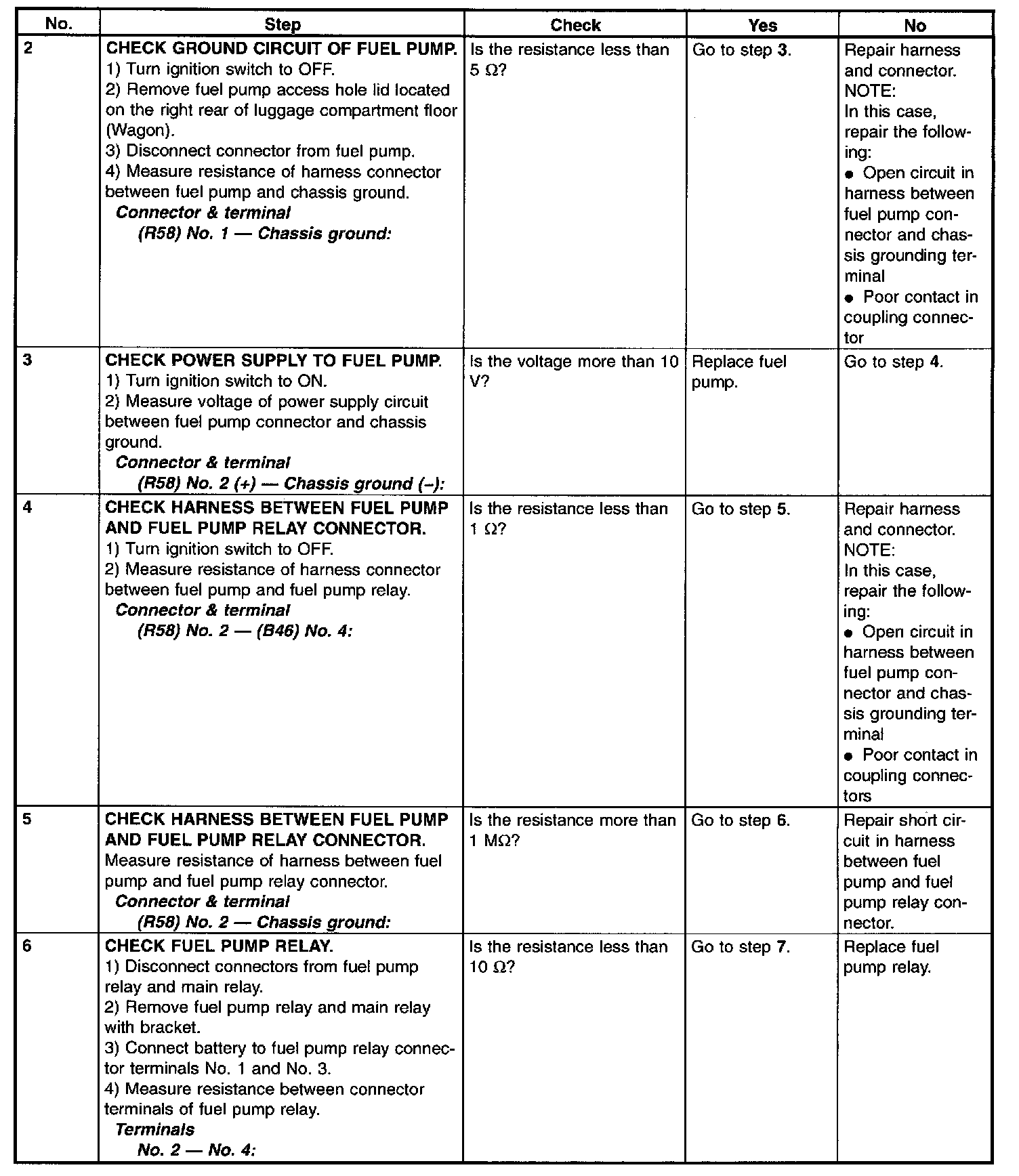

Step 2 - 6:

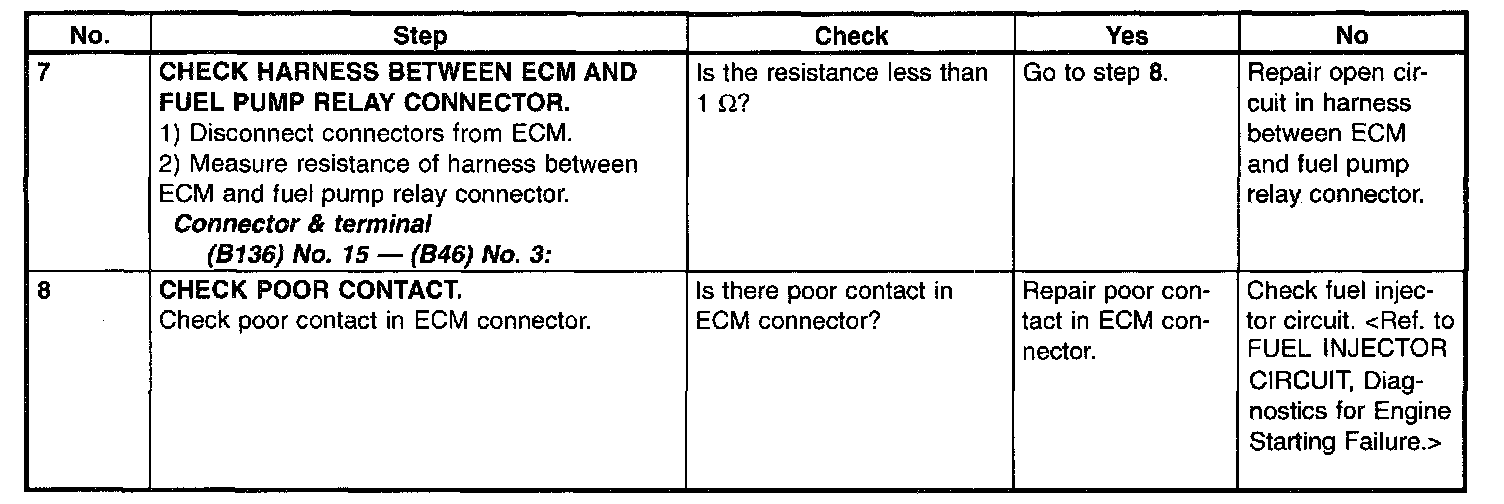

Step 7 - 8:
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
WIRING DIAGRAM
