Control Module Power Supply and Ground Line
CONTROL MODULE POWER SUPPLY AND GROUND LINECAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
Wiring Diagram:

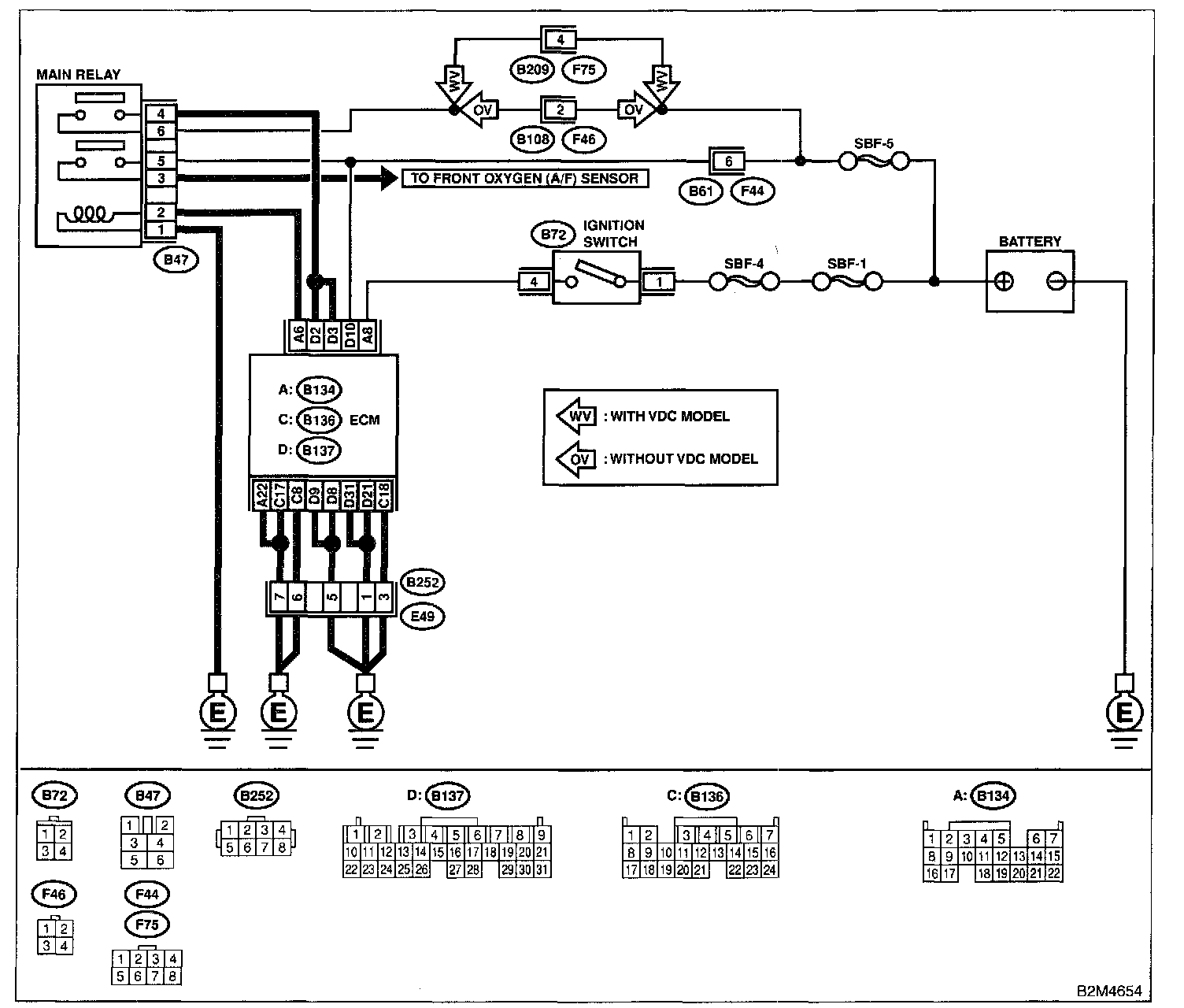

WIRING DIAGRAM
Step 1:

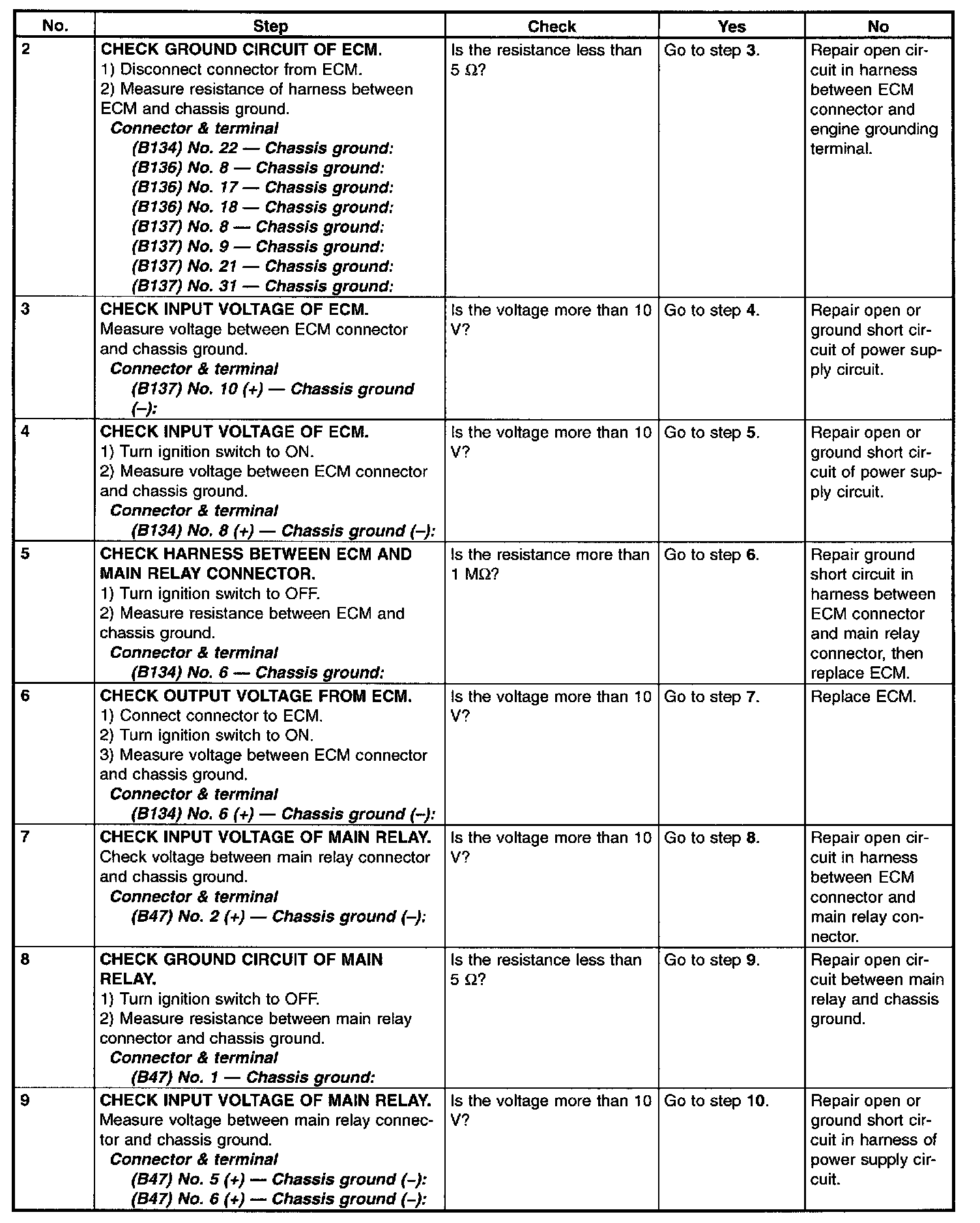

Step 2 - 9:

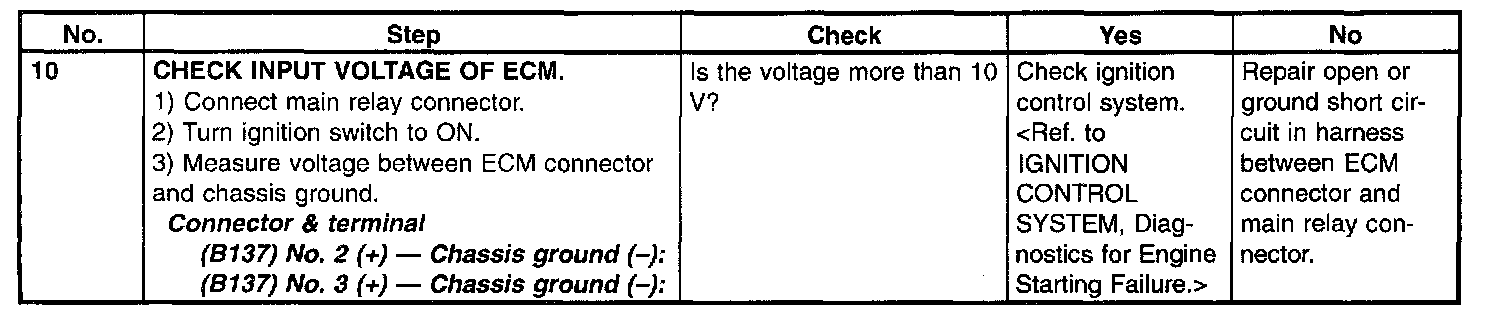

Step 10:
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE and INSPECTION MODE.
WIRING DIAGRAM
