Actuator Operation
Compulsory Valve Operation Check ModeOPERATION

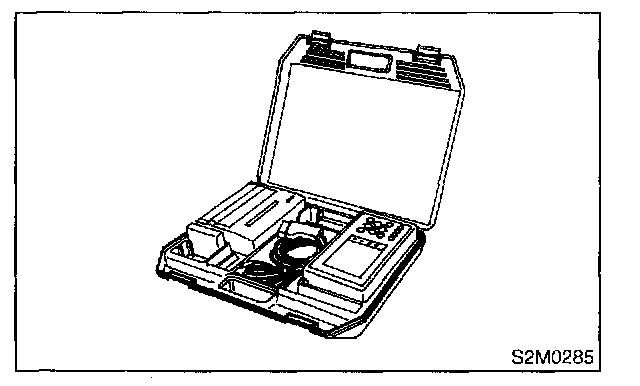

1. Prepare Subaru Select Monitor kit.
2. Connect diagnosis cable to Subaru Select Monitor.

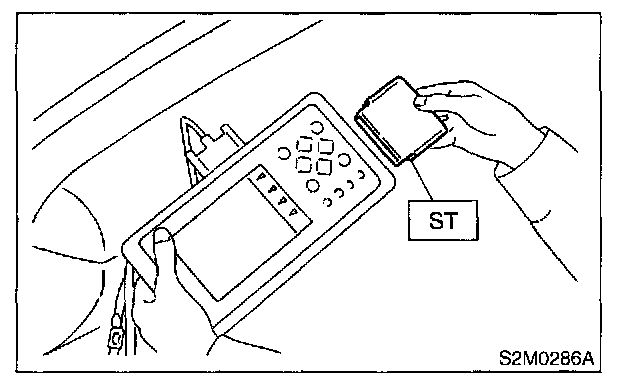

3. Insert cartridge into Subaru Select Monitor.

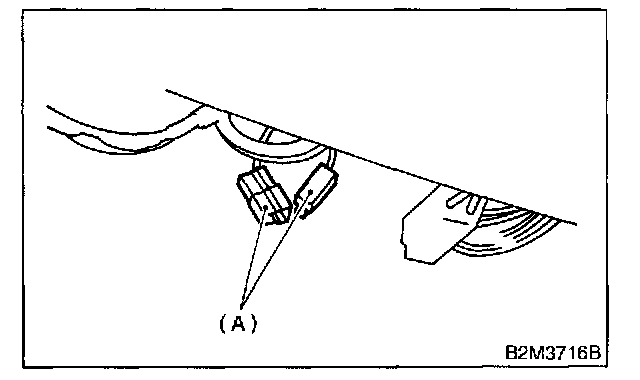

4. Connect test mode connector (A) at the lower portion of instrument panel (on the driver's side), to the side of the center console box.
5. Connect Subaru Select Monitor to data link connector.

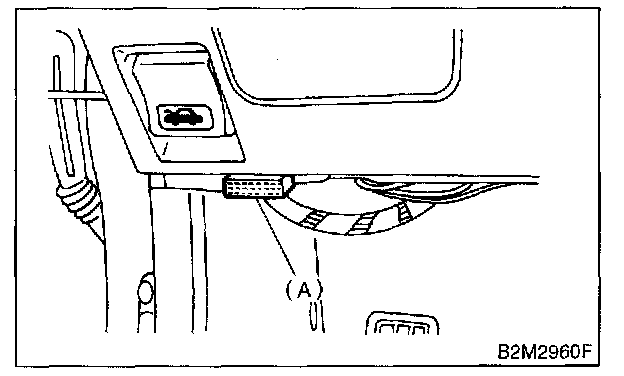

1. Connect Subaru Select Monitor to data link connector (A) located in the lower portion of the instrument panel (on the driver's side).
2. Connect diagnosis cable to data link connector.
CAUTION: Do not connect scan tools except for Subaru Select Monitor and OBD-II general scan tool.

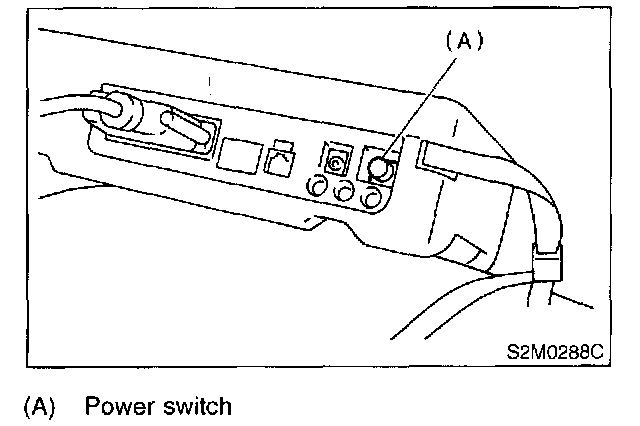

6. Turn ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
7. On the
8. On the
9. Press the [YES] key after displayed the information of engine type.
10. On the
11. On the
12. Select the desired compulsory actuator on the
13. Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the �Actuator ON/OFF Operation> screen.

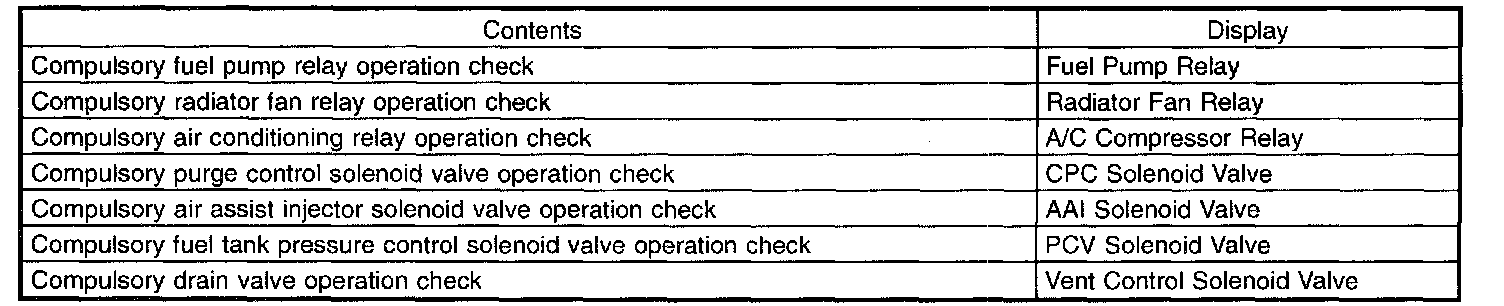

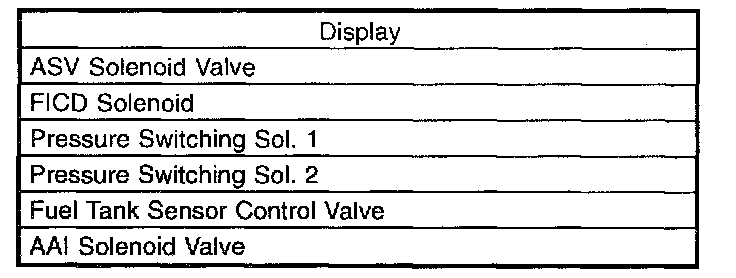

- A list of the support data is shown in the above table.
NOTE:
- The above parts will be displayed but not functional because they are not installed on the vehicle.
- For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
