Rear Wiring Harness and Rear Gate Cord
Rear Wiring Harness and Rear Gate Cord

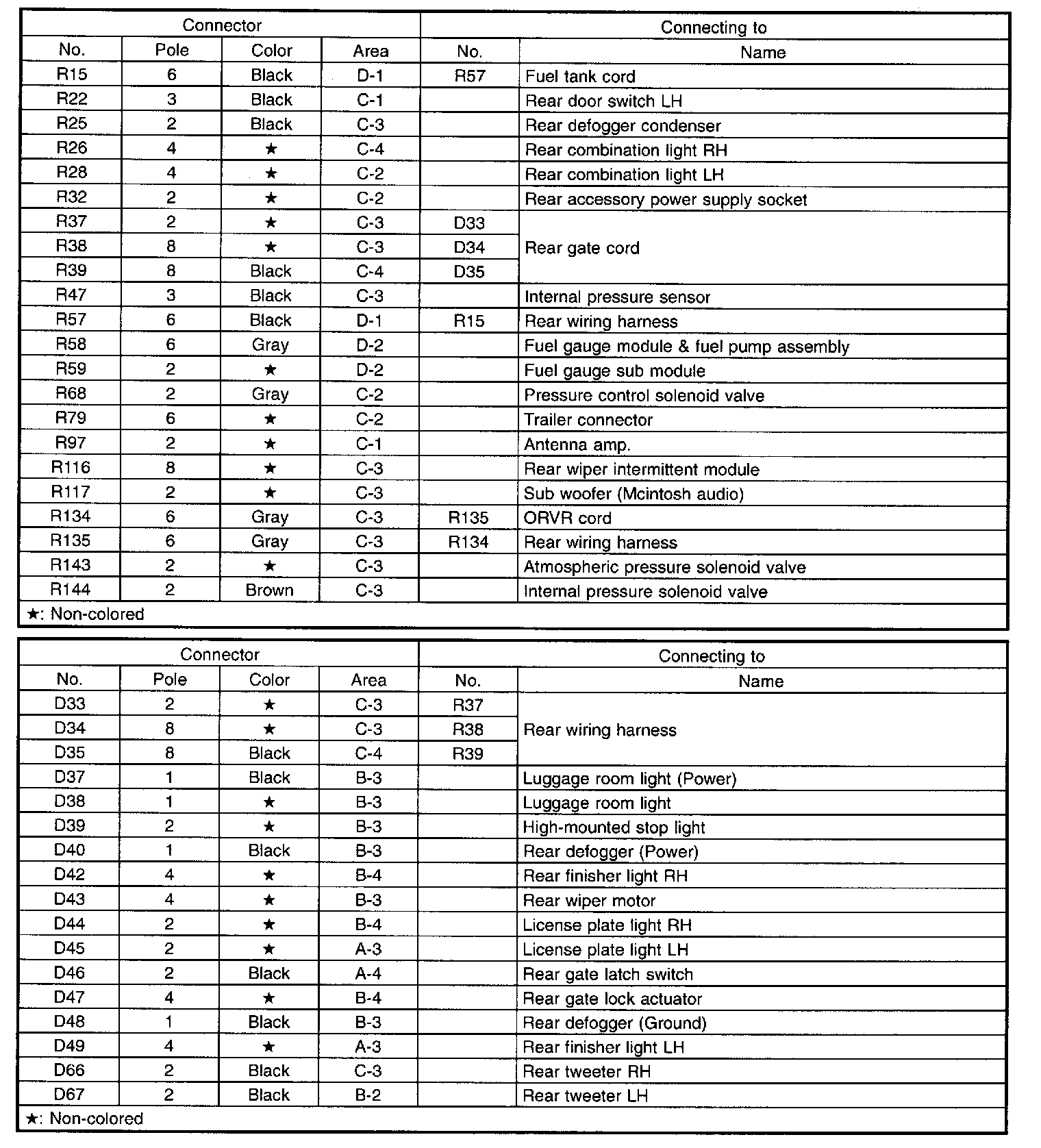

Connector List:

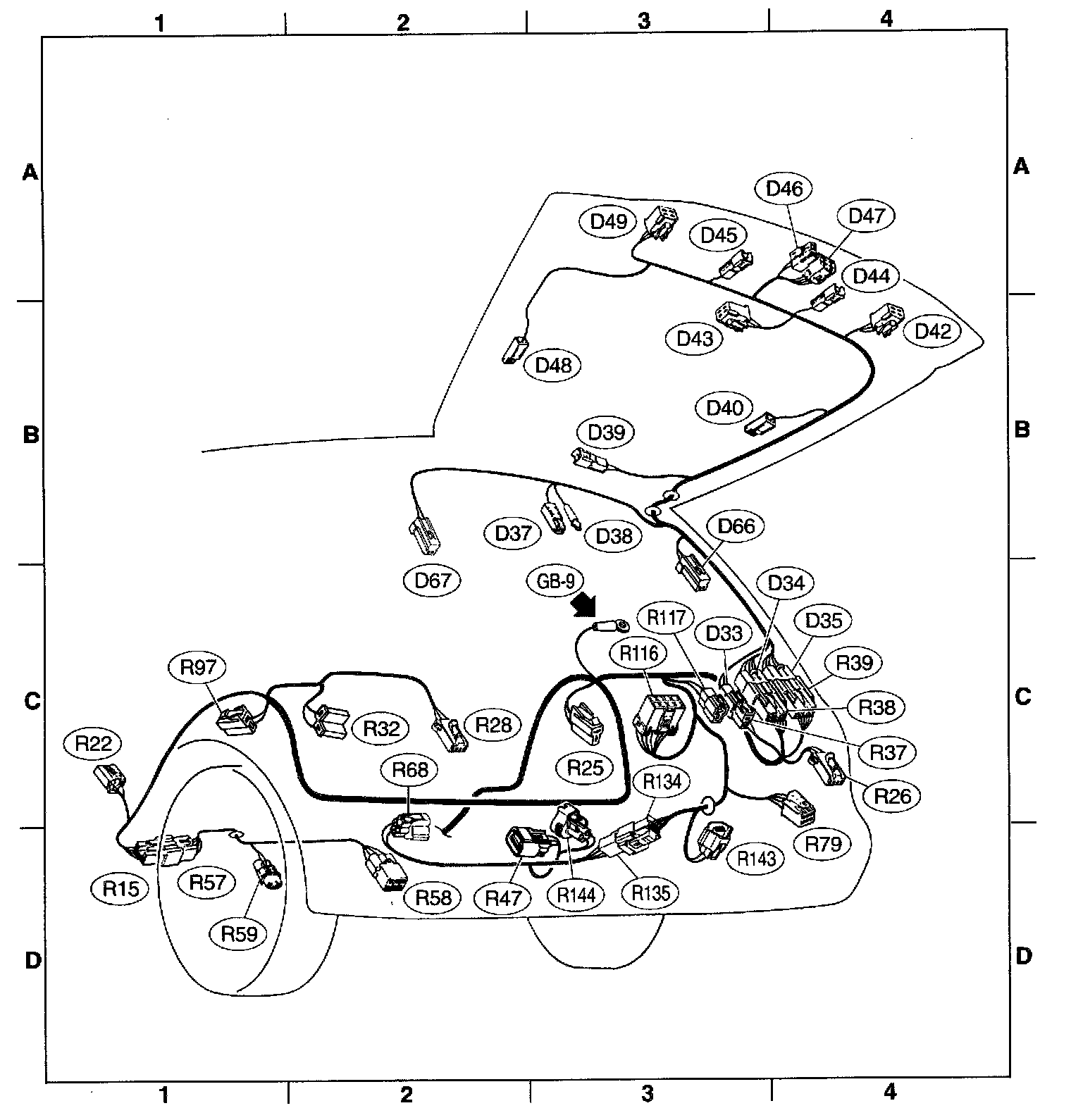

Connector Location:
