Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Diagnostic Symptom Procedure >> Check Fuel Level Sensor

Check Fuel Level Sensor

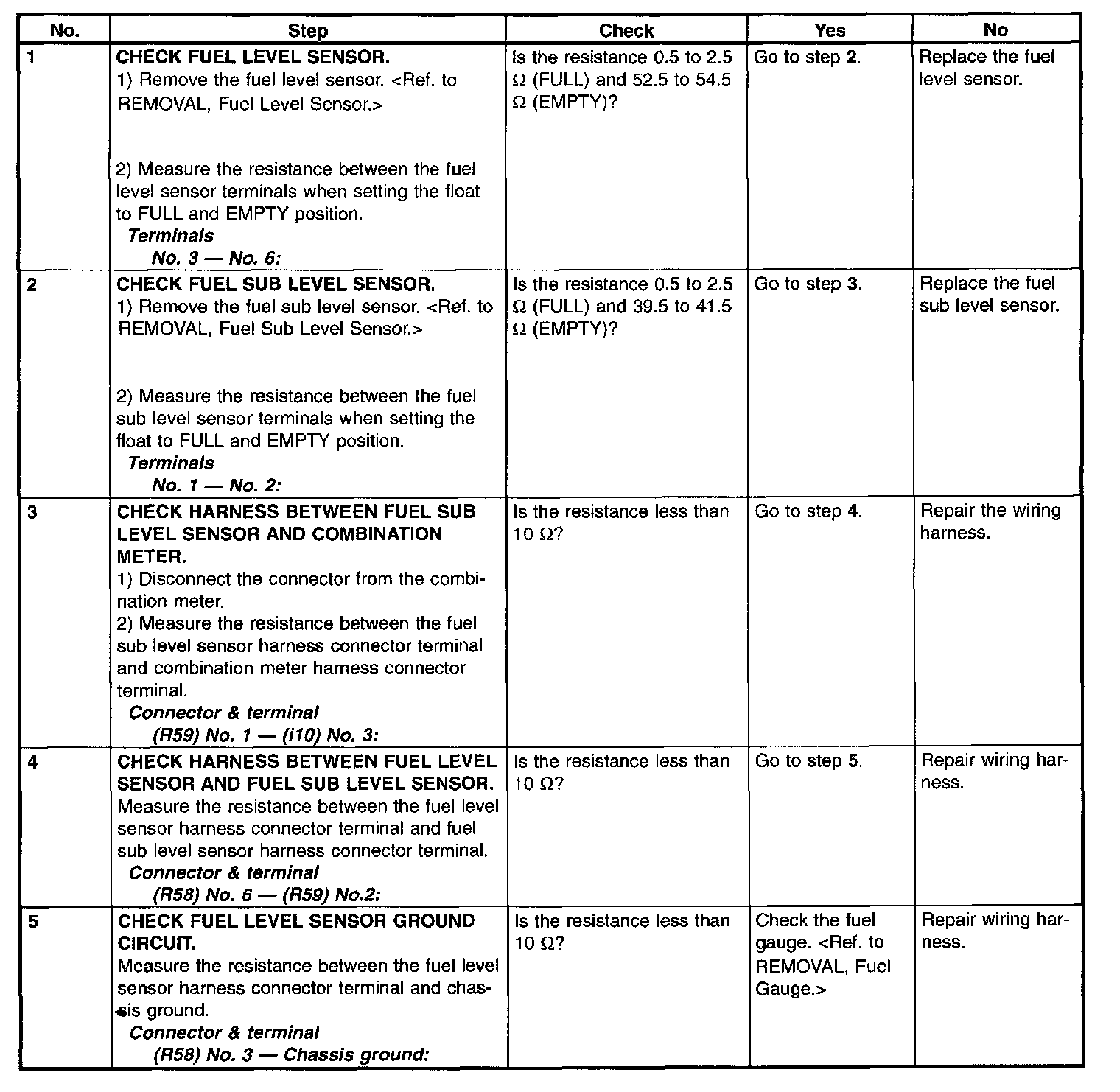

Check Fuel Level Sensor Step 1 - 5:
